Specifications
Low speed permanent magnet generatorLow starting torque
High generating efficiency
Glassfibre high efficiency blades
Model:Dolphin 300W
Product Characteristics:
1. Large power, low volume, low weight, high efficiency
2. Carbon fiber blades, high efficiency of anti-wind ability
3. Blades with the ability of automatically stall protection under strong wind
Product Specification:
Model |
300W |
Starting wind speed |
3m/s |
Cut-in wind speed |
3.5m/s |
Rated wind speed |
12m/s |
Rated DC voltage |
12/24V |
Rated output AC voltage |
220V/50Hz(110v/60Hz) |
Over-speed protection |
Electromagnetic torque control |
Engin |
Permanent magnetism synchronization generator |
Rated speed |
810 |
Wind energy utilization rate |
0.41 |
Colour |
Various |
N.W. |
7kg |
Blade material |
Extra-strong and tenacious engineering plastics |
Rotor diameter |
1250mm |
Rotor length |
1350mm |
Rated power |
300W |
Packing material |
Carton box and foam material |
packing dimension |
1110*580*240mm |
G.W. |
10.5kg |

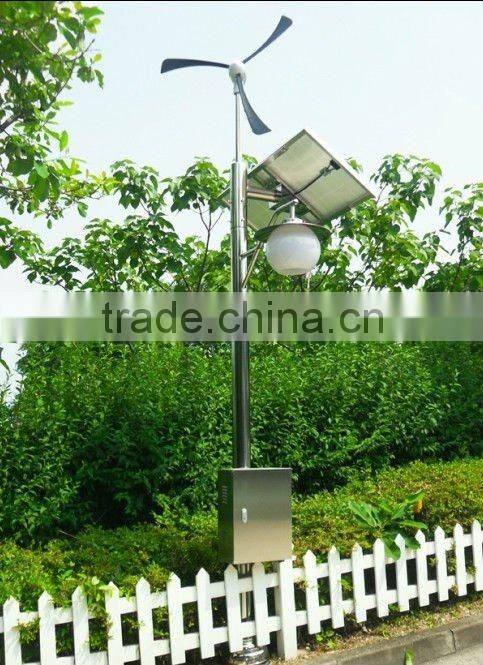

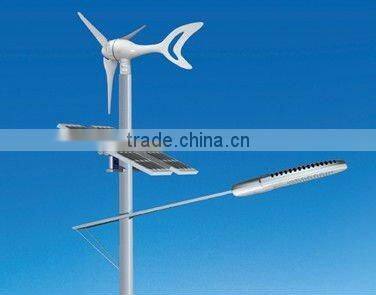

We are specialized in producing small wind turbines,wind & solar hybrid system for street lights,Monitoring system.We can prinit any colors of blade,cap according to your request.welcome to visit us.
Relevant products(50w-5kw)

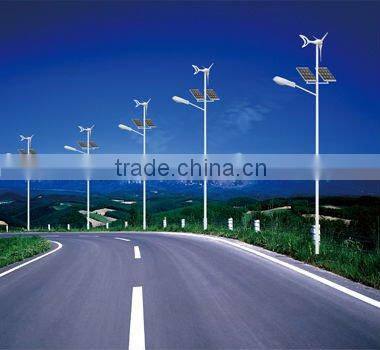

Engineering case
