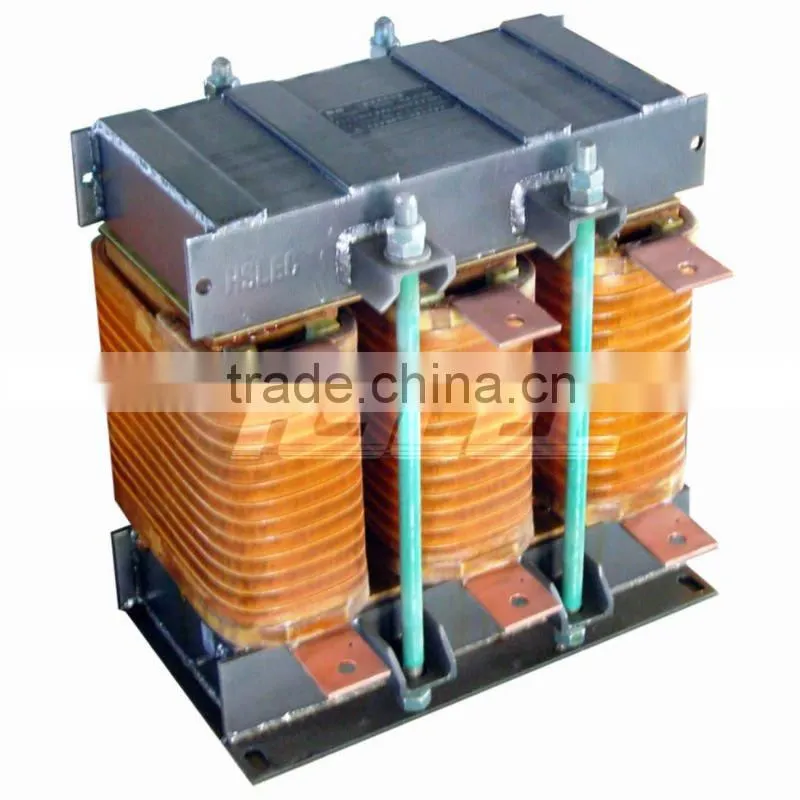

3 Phase Line Chokes Using for Motor Inverter
1.The product shown on this page is our line reactor that are compatible with inverter, FRNG/P
2.For example, our HSL119-F01 three phase line reactor (ACR) is designed to work with inverter ACR2-0.4A in the 3AC 200 +10%-15%V power system.
Functions:
1 TO ADD LINE IMPENDENCE.
2 TO PROVIDE SOME LIGHT BUFFERING AGAINST LOW MAGNITUDE LINE SPIKES.
3 TO REDUCING HARMONICS.
4 TO COMPENSATING FOR A LOW INDUCTANCE MOTOR.
5 ONLY AS PART OF A FILTER FOR REFLECTED WAVE REDUCTION

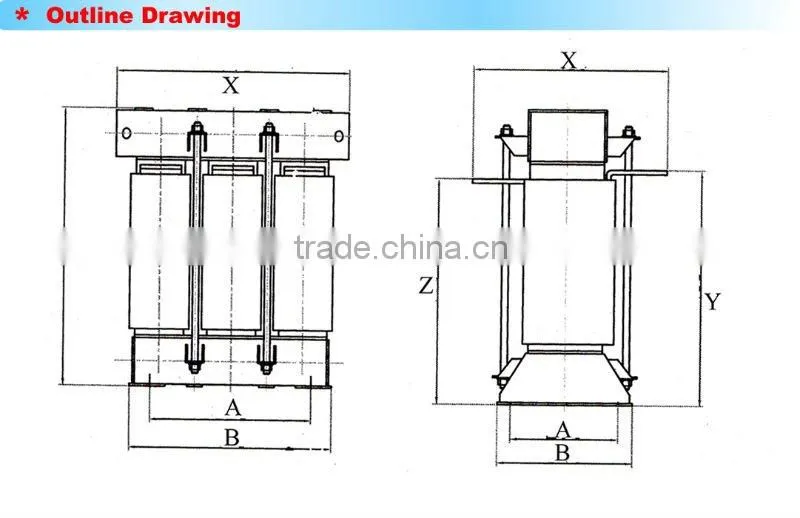

Technical parameter for your reference:
PROTECTED BY WATER-REPELLENT CLOTH, SECURED AND PACKED IN WOODEN CASE
Delivery Time
4-30 days after receive the payment
DATA REQUIRED WITH ORDER OR FOR BID PURPOSES
1.System Voltage (kV)
2.Frequency (Hz)
3.Basic Impulse Level (kV)
4.Reactance/Inductance (Ohms/Microhenries)
5.Continuous Current (A)
6.Short Circuit Levels (kA) - Time Duration (Sec)
7.Fundamental/Harmonic FrequencyLevels(Hz)
8.Q Required for Filter Reactors
9.Insulators supplied or not supplied and TR No. or type to be used
10.Vertical or Horizontal Mounting
11.Three phase side by side or vertical stack mounting
12.Terminal configuration
13.Dimensional Limitations
14.Number of Units
Service Conditions
1. Service Site: Indoor/Outdoor
2. Ambient Temp.:-40~+40 degree (or according to customer’s requirement)
3. Altitude: <=1000m (if it exceeding to 1000m, pls declare in order)
4. Max. Wind Speed: 35m/s
5. Relative Humidity :< =90%
6. Earthquake Resistant Capability: horizontal direction 0.3g vertical direction 0.15g (or by customer’s requirements)
1.Established in 1992, Huashenglong Electrical Equipment Company is an ISO9001:2008 certified low voltage inductor manufacturer in China.

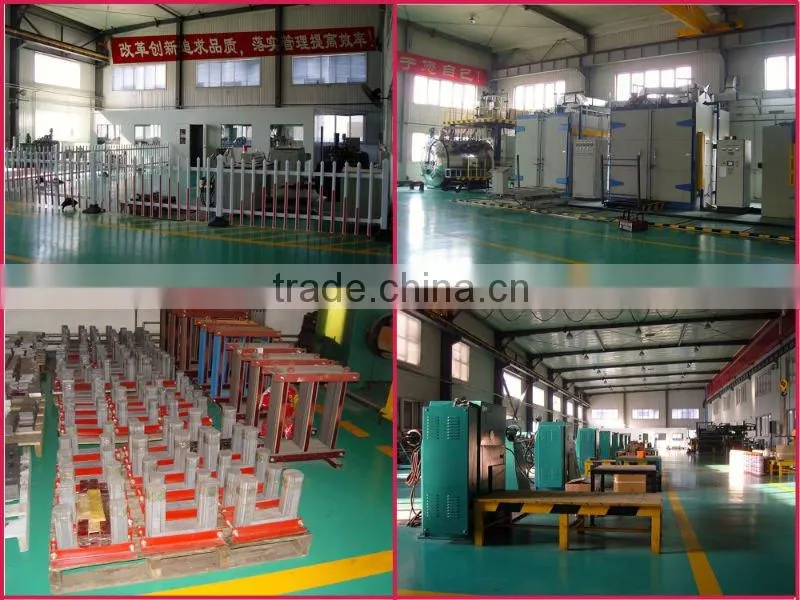

2.We have one machining workshop, two wire winding workshops, complete special-use and
universal-use equipment, a complete set of inspection equipment, and large-scale winding
equipment.
3.With reliable quality and low prices, our dry type reactor and power transformer are sold well in
America, Turkey, India, Thailand, Saudi Arabia, Vietnam, Georgia, etc.
1.HSLEC offer a wide variety High Voltage and Low Voltage power products
2.including power transformers, distribution transformers,
3.air core reactors, iron core reactors and line reactors and output reactors compatible to variety
Frequecny Inverters and Governors.
4.In addition, we also can fulfill your OEM requests.
