Line Chokes Compatible to FUJI
Welcome to Huashenglong low voltage reactor! The product shown on this page is our line reactor that are compatible with FUJI inverter, FRNG/P, For example, our HSL119-F01 three phase line reactor (ACR) is designed to work with FUJI inverter ACR2-0.4A in the 3AC 200 +10%-15%V power system.
Functions:
1 TO ADD LINE IMPENDENCE.
2 TO PROVIDE SOME LIGHT BUFFERING AGAINST LOW MAGNITUDE LINE SPIKES.
3 TO REDUCING HARMONICS.
4 TO COMPENSATING FOR A LOW INDUCTANCE MOTOR.
5 ONLY AS PART OF A FILTER FOR REFLECTED WAVE REDUCTION

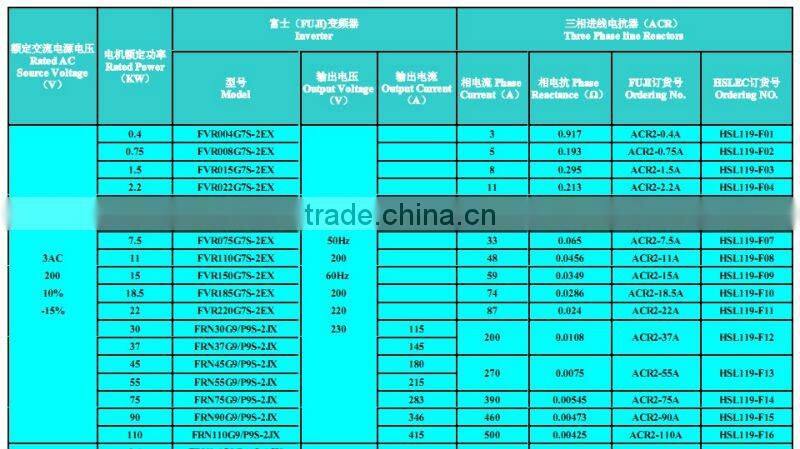

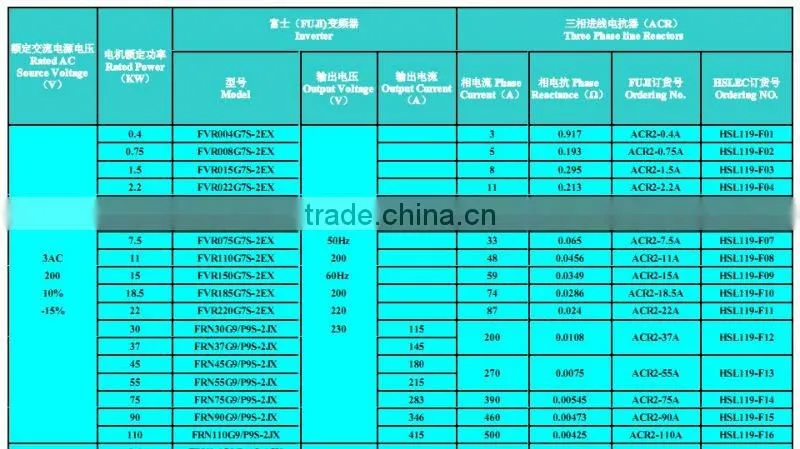

Technical parameter for your reference:
DATA REQUIRED WITH ORDER OR FOR BID PURPOSES
1.System Voltage (kV)
2.Frequency (Hz)
3.Basic Impulse Level (kV)
4.Reactance/Inductance (Ohms/Microhenries)
5.Continuous Current (A)
6.Short Circuit Levels (kA) - Time Duration (Sec)
7.Fundamental/Harmonic FrequencyLevels(Hz)
8.Q Required for Filter Reactors
9.Insulators supplied or not supplied and TR No. or type to be used
10.Vertical or Horizontal Mounting
11.Three phase side by side or vertical stack mounting
12.Terminal configuration
13.Dimensional Limitations
14.Number of Units
Standard export wooden packing.
Delivery Time
4-30 days after receive the payment
Established in 1992, Huashenglong Electrical Equipment Company is an ISO9001:2008 certified low voltage inductor manufacturer in China. We at HSLEC have one machining workshop, two wire winding workshops, complete special-use and universal-use equipment, a complete set of inspection equipment, and large-scale winding equipment. So we are able to manufacture various low voltage inductors according to customer's specific demands. With reliable quality and low prices, our dry type reactor and power transformer are sold well in America, Turkey, India, Thailand, Saudi Arabia, Vietnam, Georgia, etc. To obtain more information about our inductor or transformer, please continue browsing our website, or contact us directly!
HSLEC primary products are Transformers and Reactors. Reactors which can be divided into high-voltage and low-voltage reactors two categories: High Voltage Reactors including air core series reactors, air core shunt reactors, air core filter reactors, air core currrent limiting reactors and other type iron core reactors; Low voltage reactors including line and output reactors compatible to SIEMENS,EMERSON,FUJI,LG and other brands frequency inverters.
Certificate

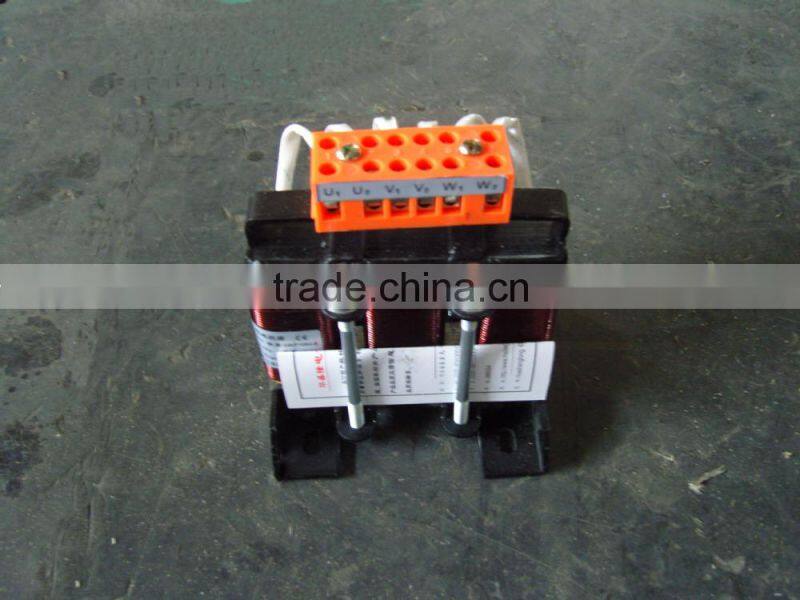

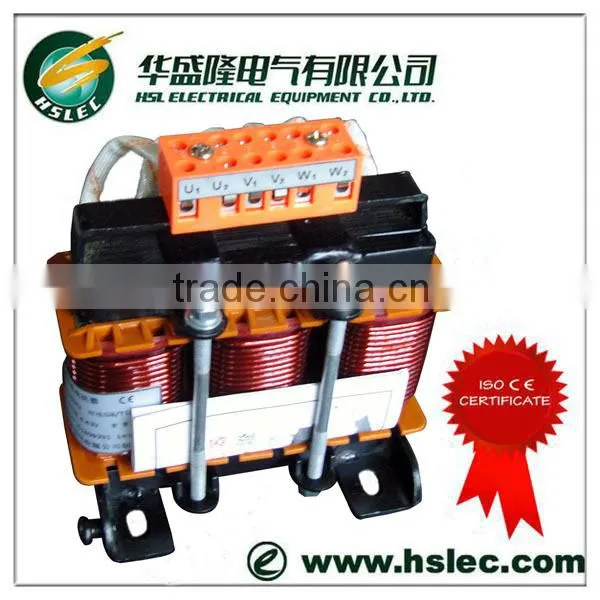

Product photos
Company and workshop photos
