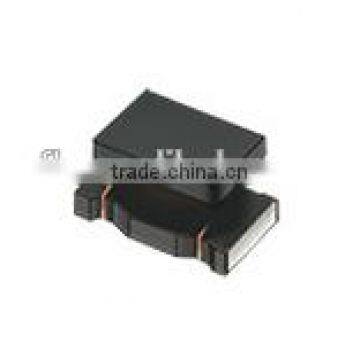

1206 10uH 100mA 3.25ohm MuRata LQH31MN100J03L SMD Chip Inductor Coil With Ferrite Core

2,000/pcs/roll/ctn.

1206 10uH 100mA 3.25ohm MuRata LQH31MN100J03L SMD Chip Inductor coil with ferrite core

1.  Specification

Brand name	muRata
Part No.	LQH31MN100J03L
Inductance	10uH
Tolerance	±5%
Inductance test frequency	1MHZ
Rated current (Itemp) (Based on Temperature rise)	100mA
Max. of DC resistance	3.25Ω
Avg. of DC resistance	2.5Ω ±30%
Q test frequency	5MHz
Self resonance frequency (min.)	20MHz
Q (min.)	35
Operating temperature range (Self-temperature rise is not included)	-40~85°c
Class of magnetic shield	No Magnetic shield

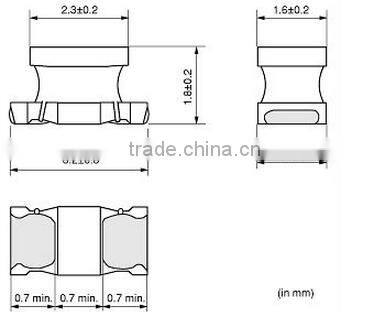

Shape
L size	3.2 ±0.3mm
W size	1.6 ±0.2mm
T size	1.8 ±0.2mm
Size code in inch(mm)	1206 (3216)
Reference
Packaging	φ180mm Embossed taping & Reel
Pack Quantity	2000 pcs/reel
Category	Inductor
Family	Inductors for General use

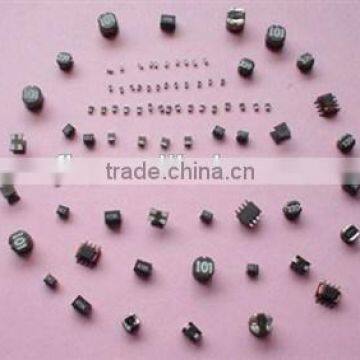

Chip Inductors Mass Stock
We supply various electronic components and welcome your inquiries

2. Application

• For general purpose
• the high-frequency circuits of mobile communications equipment, such as mobile phones, wireless LAN, and others.

3. Feature

• Inductor of the multilayer & non-magnetic core structure.
• high Q (Quality factor) value
• Max. height 0.55 mm
• Reflow soldering applicable
• Complied with RoHS Directives
• Enables a smaller size and lower cost compared to the wire wound structure
• Enabling use in a wide range of applications





  4. About Inductor from muRata



  • Classification and Structure of Chip Inductor



    We also can provide various inductors from TDK, Samsung, Coilcraft, Taiyo, etc..

    and most of them were in stock.

    Any enquiry please feel free to contact us.
