Home > Products > Reactor/Inductor for Inverters > 60A/0.26uH Three Phase Output Reactors for FUJI Devices
60A/0.26uH Three Phase Output Reactors for FUJI Devices
- 2000000 Set / Sets per Month
- Tianjin
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | HSLEC | Model Number: | CKSG2-0.8 |
Product Description
60A/026uH Three Phase Output Reactors for FUJI Devices
The output reactor is used between variable speed drives and the motor. It has the functions of decreasing peak voltage and current, and smoothing pulse width modulated waveform. And also reduce operating temperature and audible noise in motor loads.
Model Name Indication:
Output Reactors confirm to the standard as below:
1. IEC289:1987Reactor
2. GB10229-88Reactor(eqvIEC289:1987)
3. JB/T9644-1999 Semiconductor Electrical Drivers Use Reactor
Working Condition
1. Altitude of installation site shall be not exceeding 1000 meters;
2. Ambient temperature: -25°C~40°C;
3. Relative humidity: 85% (at 25°C);
4.Surroundings: It should be installed at indoor without shaking,harmful gas,steam,electric dust and explosion.
Features
1. All-copper windings, for longer life.
2. Elegant design
3. 50/60 hertz frequency (other frequencies available).
4. Low Noise(less than 60dB)
5. Small volume easy to install and transportation
6. Unique Logo
7. Compliance with IEC289, GB10229
8. Manufactured under ISO 9001 quality management
Functions
1. The output reactor is able to extend the lifetime of output motor.
2. It can also dampen overshoot peak voltage.
3. The low voltage reactor is used to reduce motor heating and audible noise.
Standard export wooden packing.
Delivery Time
4-30 days after receive the payment.
Huashenglong specializes in manufacturing excitation reactor, line reactor, output reactor and transformer compatible to ALSTOM ALSPA MV10000(0.75~45Kw) inverter, located in China. Ever since 1992, we have accumulated much experience in producing dry type transformer, reactor, and developed a proven quality management system. Through the use of advanced manufacturing equipment, we are able to ensure high product quality, as well as improved productivity. Thanks to reliable quality and competitive prices of our products like shunt reactor, current limiting reactor, high voltage transformer, etc., we have established stable sales channels in the US, India, Thailand, Vietnam, Georgia, among many other countries. If you have any related product need, please feel free to contact us and try our products. We at Huashenglong are happy to assist you.
HSLEC primary products are Transformers and Reactors. Reactors which can be divided into high-voltage and low-voltage reactors two categories: High Voltage Reactors including air core series reactors, air core shunt reactors, air core filter reactors, air core currrent limiting reactors and other type iron core reactors; Low voltage reactors including line and output reactors compatible to SIEMENS,EMERSON,FUJI,LG and other brands frequency inverters.
Certificate

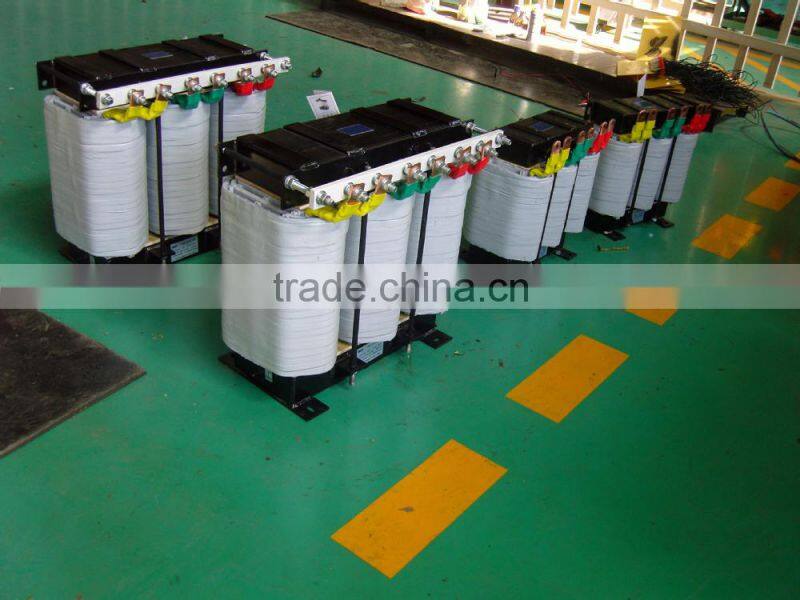

Product photo
Company and workshop photos
Contact Us
- Qinhuangdao Huashenglong Electrical Equipment Co., Ltd.
- Contact nameMichelle Xu
- Phone86-0335-8560000 -110
- AddressNo. 3, Helanshan Road, Economy & Technology Development Zone
