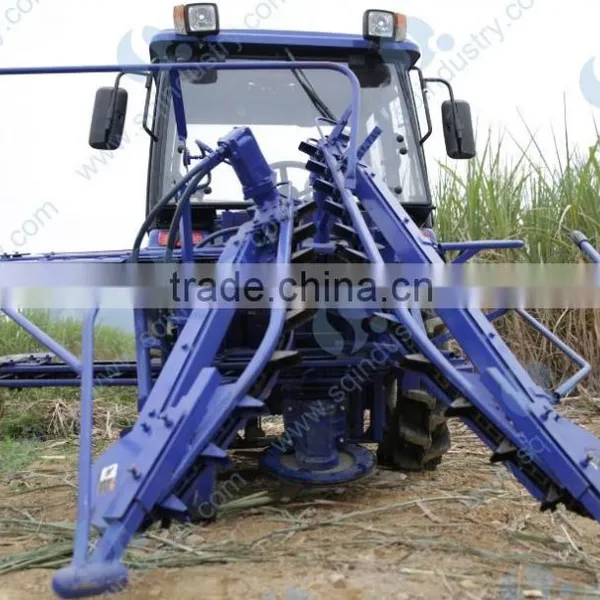

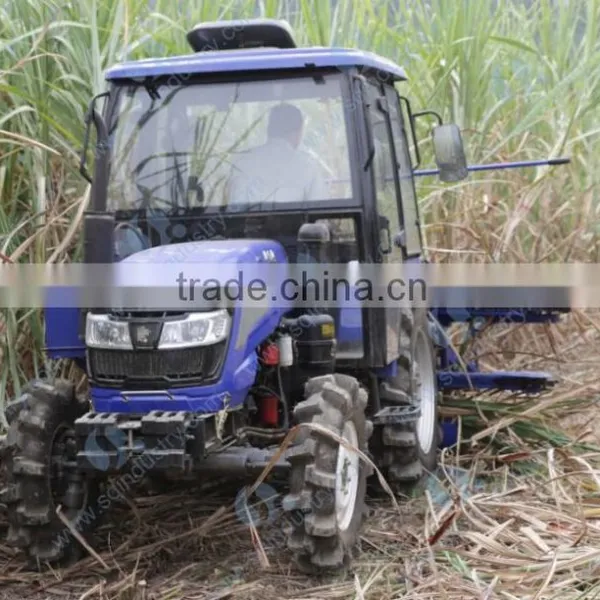

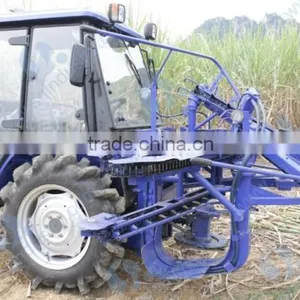

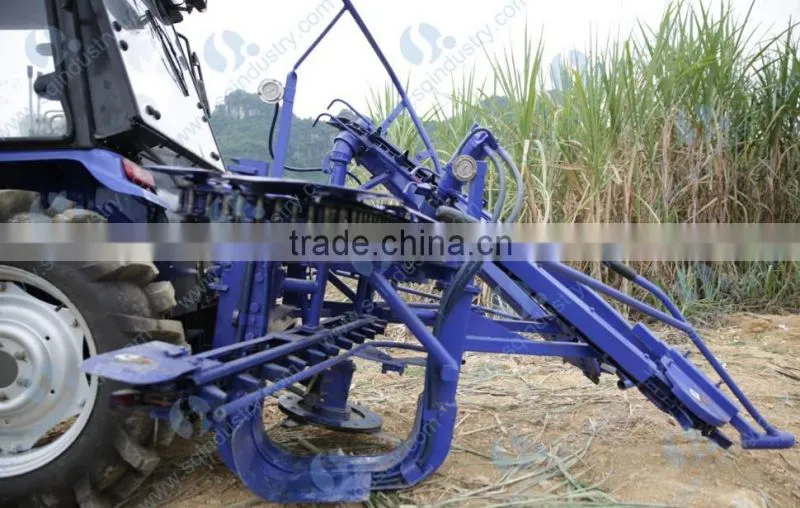

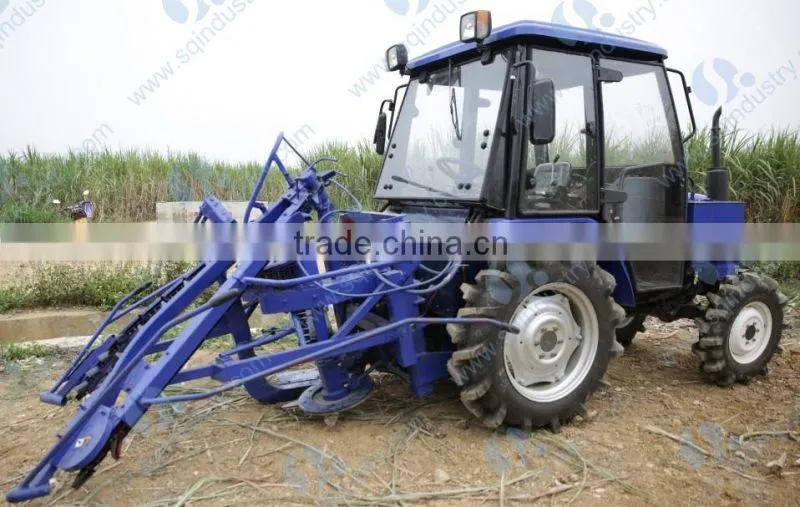

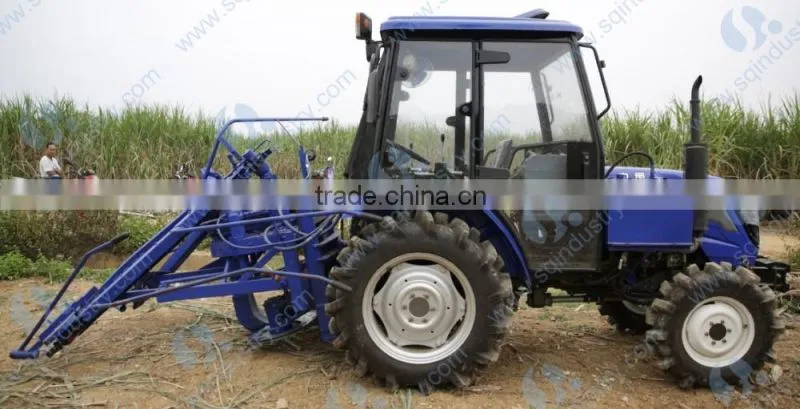

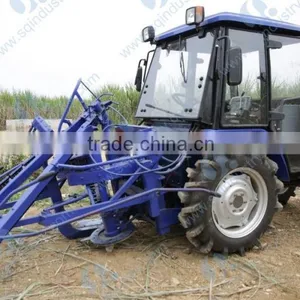

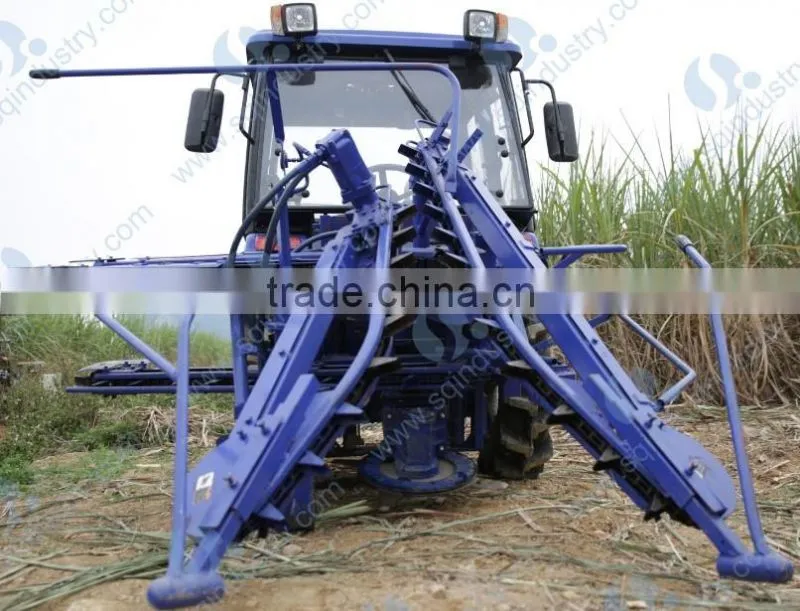

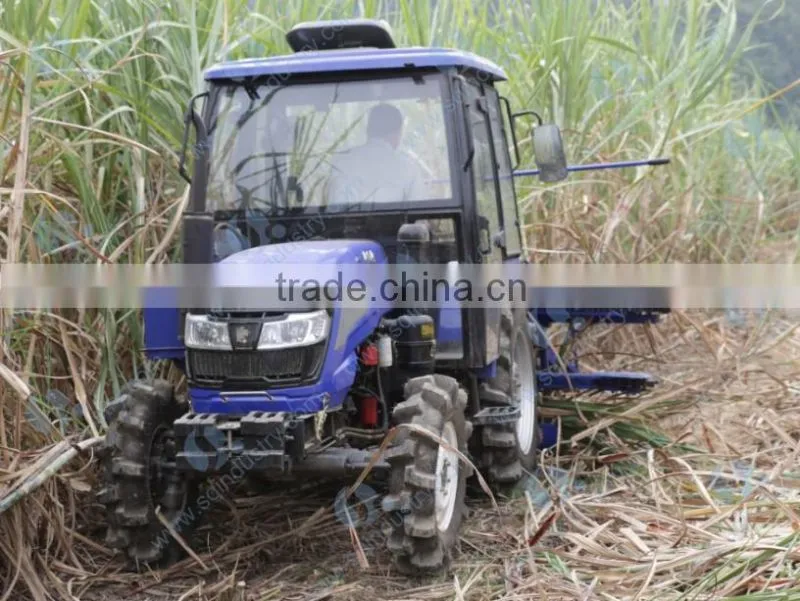

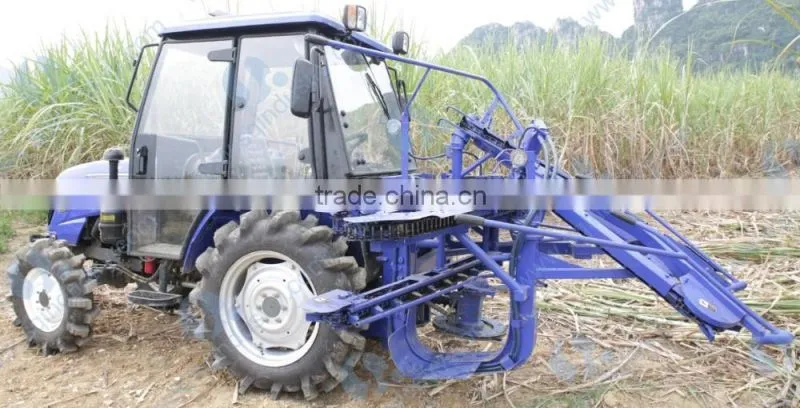

mini sugar cane harvester, sugarcane harvester machine

NO.

ITEMS

DETAILS

1

Model

4GP-40

2

Cutting style

Whole cane

3

Cutting row

1

4

Distance between two rows (mm)

≥1100

5

Engine

Model

4L23BT

(kW)/(r/min)

29.4/2400

Oil consumption (Kg/h)

≤4

6

Overall dimensions(mm)

Length

5300

Width

2340

Height

2330

7

Wheel base(mm)

Front/Rear

1200/1210

Axle base(mm)

1780

Tyre

Front tyre

9.50-24

Rear tyre

6.50-16

8

Wheel driving

4-wheel driving

9

Speed

Forward

8

Speed(km/h)

1.86~28.6

Backward

8

Speed(km/h)

1.86~28.6

10

Min.turning radius(m)

3.7±0.2

11

Construction weight(kg)

2460

12

Ground clearance(mm)

250

13

Angle of inclination of the Cutting platform(°)

-5~10

14

Adjustable height of the cutting platform(mm)

0~400

15

Cutting system

Single disk

16

Working efficiency

Working speed(km/h)

1.2/2.0

17

Damage rate(%)

≤20

18

Loss rate(%)

≤8

19

Working Efficiency(hm2/h)

≥0.12

20

Oil consumption(Kg/h)

≤4
