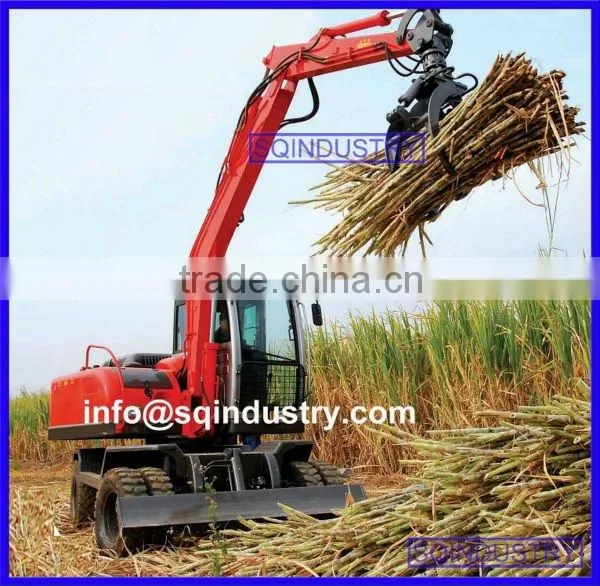

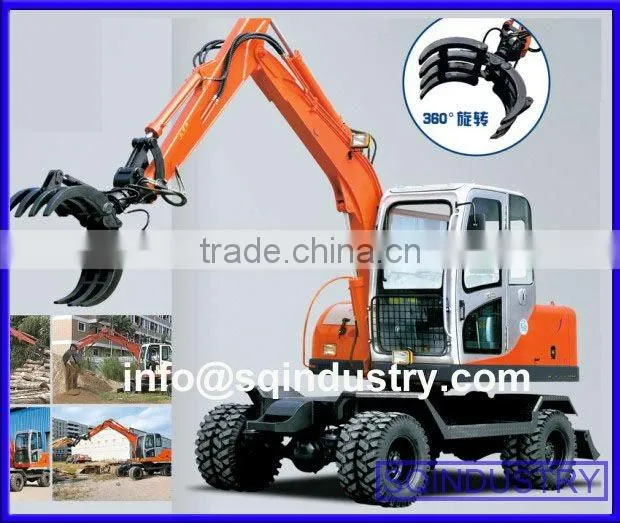

360 Degree Rotation Sugarcane Loader, Sugarcane Grasper

Name: 360 Degree Rotation Sugarcane Loader, Sugarcane Grasper
Brand: SQINDUSTRY
SKU: 104645993
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, sugarcane loader

Usage:

Other, sugarcane loader

Shanghai Sheng Qian Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, sugarcane loader

Usage Other, sugarcane loader

Place of Origin Shanghai, China

Brand Name SQINDUSTRY

Model Number SQCL05

Certificate Other, ISO9001: 2008, GB/T 19001-2008

Specifications

360 degree rotation sugarcane loader, sugarcane grasper
1. Motor: 50kw/68hp
2. Grab bucket rotation angle: 360 degree

360 degree rotation sugarcane loader, sugarcane grasper

Model	SQCL05
Drive	4 wheel drive
Overall dimension	555021502800mm
Overall weight	6000kg
Boom length	3530mm
Cabin and Boom rotation angle	360°
Arm length	1860mm
Max digging Reach	6000mm
Max digging Depth	3380mm
Max digging force	45kN
Max dumping height	4500mm
Max loading weight	800kg
Max grasper’s guage	1200mm
Grab bucket rotation angle	360°
Back-end radius of gyration	1775mm
Distance from the arm to rotate machine	3620mm
Ground clearance of counterweight	1060mm
Min ground clearance	200mm
Engine model	YN4100, YUNNEI brand
Hydraulic system working pressure	19.5Mpa
Rated power	50kw/68hp
Max hauling force	60kN
Max walking speed	36km/h
Grade Climbing ability	58%/30°
Full circle swinging time	5.5s
Capacity of the fuel tank	130L
Capacity of the hydraulic tank	110L
Fuel consumption	3.5L/h
