Help Center2.4 & 5 GHz 4 DBi Dual Band Indoor Omni-Directional Wireless WiFi Rubber Duck Dipole Antenna
Related Products
-
2.4 & 5 GHz 4 DBi Dual Band Indoor Omni-Directional WiFi Wireless Rubber Duck Dipole Antenna OEM Customized ManufacturersUS$ 0.5 - 1.5MOQ: 1000 Pieces -
3G GSM Quad Band Omni-directional Blade AntennaUS$ 0.3 - 2.5MOQ: 500 Pieces
-
FPV 5.8Ghz Circular Polarized Clover Leaf Antenna High Gain Aerial Set SMA PlugUS$ 0.5 - 1.5MOQ: 1000 Pieces
-
2.4 5 DBi Dual Band Indoor Desktop Omni-Directional WiFi Wireless Rubber Duck Dipole AntennaUS$ 0.5 - 2.5MOQ: 1000 Pieces
-
4G LTE 2 DBi Indoor Omni-Directional Wireless Rubber Duck Dipole AntennaUS$ 0.5 - 2MOQ: 1000 Pieces
Application:
WIFI / CDMA / RFID / GSM
Direction and multi-point applications
Public wireless hotspots
Wireless Video System

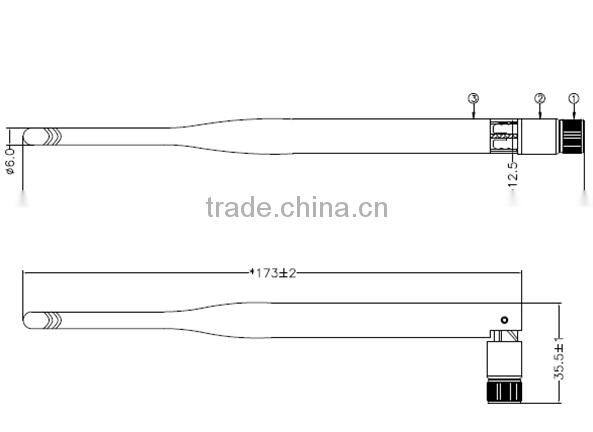

NO Description Material Finish
1 Connector:SMA RP PLUG COPPER BLACK
2 BODY-1 ABS BLACK
3 BODY-2 ABS BLACK

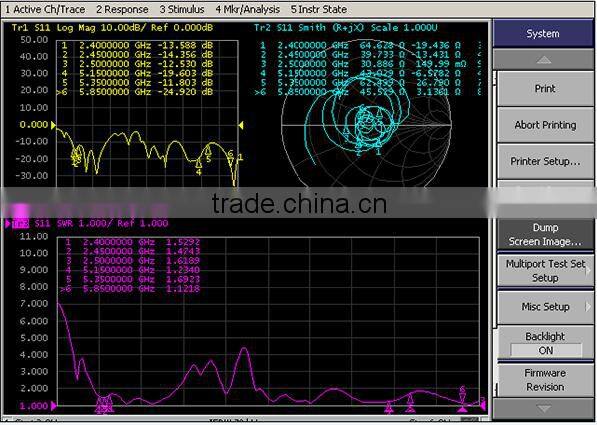

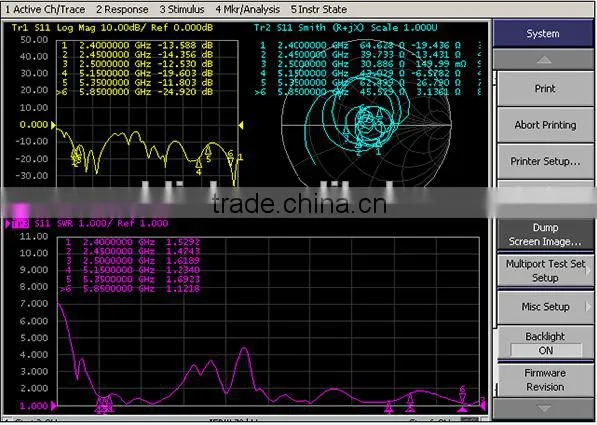

Electrical properties:
Frequency Range: 2.4~2.5 GHz & 5.15~5.85 GHz
Impedance: 50Ω (Typ.)
Peak Gain: 2.4 G=3±0.5 dBi ; 5.8 G=4±0.5 dBi
V.S.W.R: 2.5 max.
Radiation: Omni-directional
Length: 197 mm
Connector: SMA RP PLUG MALE
| Test Item | Procedure | Requirement |
| 1. Visual inspection and dimension check | Applicable methods using x 5 magnification | Follow specification |
| 2. Rapaid changing of temperature | -40°C (30 minutes) to 90°C (30 minnutes) ; 24 cycles |
After 2 hours recovery 1. No visible damage 2. Freq. Tol.:<± 5% |
| 3. Damp Heat | 24 hours at 60°C; 90 ~ 95% RH |
After 2 hours recovery 1. No visible damage 2. Freq. Tol.:<± 5% |
| 4. Endurance | 24 hours at 90°C | After 2 hours recovery 1. No visible damage 2. Freq. Tol.:<± 5% |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
