Help Center3G GSM Quad Band Omni-directional Blade Antenna
Related Products
-
FPV 5.8Ghz Circular Polarized Clover Leaf Antenna High Gain Aerial Set SMA PlugUS$ 0.5 - 1.5MOQ: 1000 Pieces -
2.4 5 DBi Dual Band Indoor Desktop Omni-Directional WiFi Wireless Rubber Duck Dipole AntennaUS$ 0.5 - 2.5MOQ: 1000 Pieces
-
4G LTE 2 DBi Indoor Omni-Directional Wireless Rubber Duck Dipole AntennaUS$ 0.5 - 2MOQ: 1000 Pieces
-
Top SMB Fakra C D Female GPS GSM Combined Antenna RG174 Navigation Aerial CDMAUS$ 0.3 - 2.5MOQ: 500 Pieces
-
Magnet Mount CDMA Antenna With TNC Male Connector and RG174 Coax CableUS$ 0.5 - 2.5MOQ: 1000 Pieces
The SMA 3M Quad-band GSM, DCS, PCS, CDMA, GPRS and EDGE 824 MHz to 2170 MHz is a quality robust Omni-directional Blade antenna with high gain in a small form factor. Its tiny size allows it to be used inside as well as outside product housings. Connection is made via fixed SMA (Plug Male) connector.
A Global System for Mobile (GSM) antenna is a type of antenna commonly used in mobile phones and cell towers. Global System for Mobile Communications is the most common type of cellular network worldwide. The antenna in a GSM phone allows the device to communicate with another GSM antenna on a cell tower, which then relays the signal to another tower or to another cell phone. GSM service can be used on a number of radio frequencies, depending on the region and technology used.
Mechanical properties:
NO. Description Material Finish:
1 MAIN PART -1 ABS BLACK
2 MAIN PART -2 3M BLACK
3 MAIN PART -3 / RG174 COPPER
PVC BLACK
4 MAIN PART -4 PET BLACK
5 MAIN PART -5 EVA BLACK
6 MAIN PART -6
Connector:SMA Plug Male COPPER GOLD

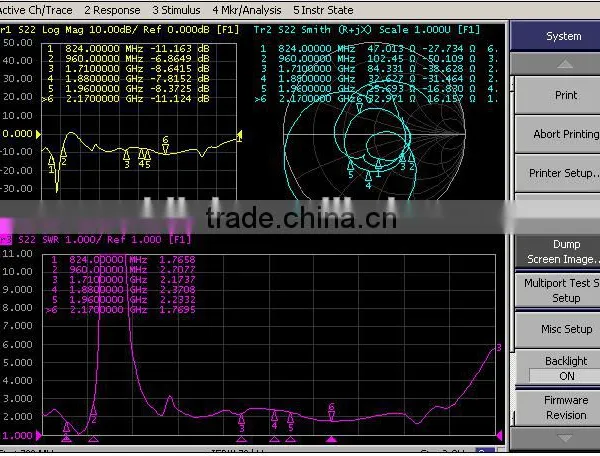

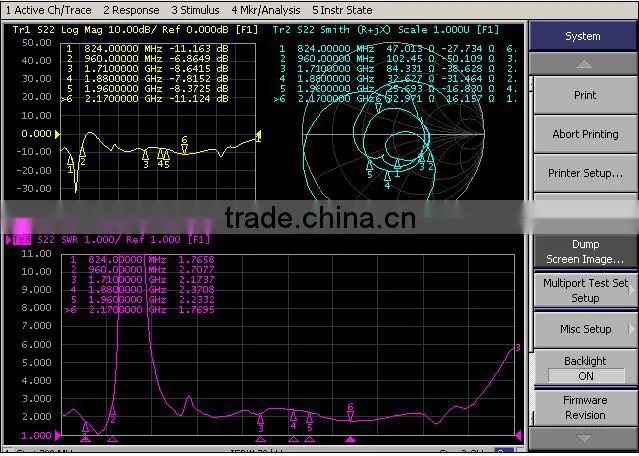

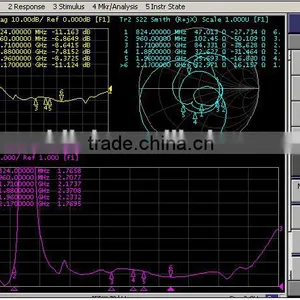

Electrical properties:
Frequency Range: 824~960 MHz / 1710~1880 MHz / 1990~2170 MHz
Impedance: 50Ω (Typ.)
Peak Gain: 3 dBi ± 0.5
V.S.W.R: 3.0 max.
Radiation: Omni-directional
Length: 115 mm
Connector: SMA Plug Male
Reliable Test:
Test Item Procedure Requirement:
1. Visual inspection and dimension check Applicable methods using x 5 magnification Follow specification
2. Rapaid changing of temperature -40°C (30 minutes) to 90°C
(30 minnutes) ; 24 cycles After 2 hours recovery
1. No visible damage
2. Freq. Tol.:<± 5%
3. Damp Heat 24 hours at 60°C; 90 ~ 95%
RH After 2 hours recovery
1. No visible damage
2. Freq. Tol.:<± 5%
4. Endurance 24 hours at 90°C After 2 hours recovery
1. No visible damage
2. Freq. Tol.:<± 5%
Application:
GSM / DCS / PCS / CDMA / GPRS
JAW-DROPPER offers 3G GSM 824 to 2170 MHz 3 dBi Quad Band Omni-directional Blade Antenna OEM Customized Manufacturers and Suppliers.
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
