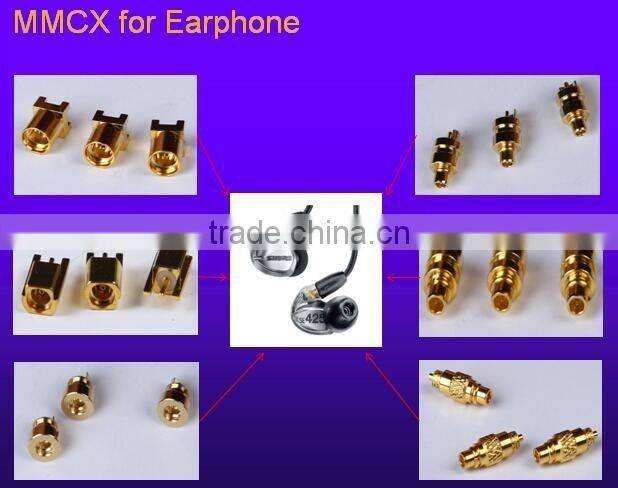

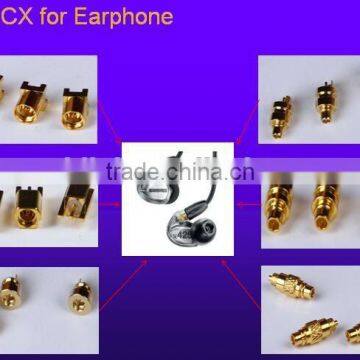

Help Center50ohm Straight Surface Mount MMCX Earphone Connector, Jack, Solder Termination
Related Products
-
Mini MMCX Jack Right Angle Connector Crimp/Solder Attachment For RG174, RG316,US$ 0.1 - 0.99MOQ: 100 Pieces -
MMCX Female Earphone Series ConnectorUS$ 0.01 - 0.5MOQ: 100 Pieces
-
MMCX Connector for EarphoneUS$ 0.1 - 0.99MOQ: 100 Pieces
-
MMCX Connector for 50ohm PCB (MMCX-50KW Switch)US$ 0.1 - 0.99MOQ: 100 Pieces
-
Earphones Mmcx rf Micro Coaxial Connector for Flexible CableUS$ 0.1 - 0.6MOQ: 100 Pieces
MMCX microminiature 50 Ohm RF Coaxial PCB jack receptaces with snap-on couplings for easy connection or disconnection. These MMCX microminiature RF coax PCB jack connectors have a gold plated brass body, teflon insulator and are available in a variety of mounting options and orientations.
Typical applications for these MMCX microminiature 50 ohm RF coaxial jacks include wireless and PCS devices, telecommunications, GPS receivers and consumer electronics.
MAJOR TECHNICAL CHARACTERISTIC
Temperature range 5—+155℃(PE Cable -40—+85℃
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 170V r.m.s at sea level
Withstanding voltage 500V r.m.s at sea level
Contact resistance
Center contact ≤5 mΩ
Outer contact ≤2.5 mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤15N
Disengagement force ≥6N
Voltage Standing Wave Ratio
Straight ≤1.25/3GHz
Right angle ≤1.43/3GHz
Durability(mating) ≥500Cycles
If you have any question ,please feel free to contact me.
MP:+86 13612903925
Whatsapp:+86 13612903925
