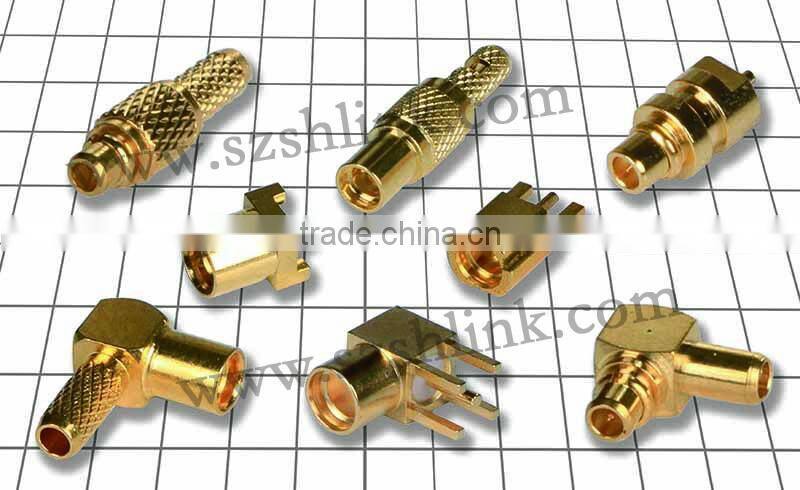

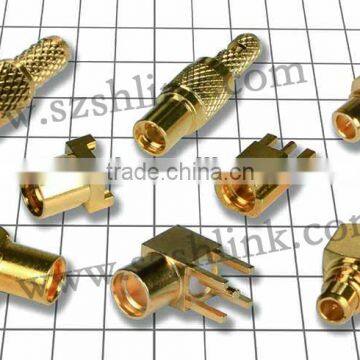

Help CenterMini MMCX Jack Right Angle Connector Crimp/Solder Attachment For RG174, RG316,
Related Products
-
MMCX Female Earphone Series ConnectorUS$ 0.01 - 0.5MOQ: 100 Pieces -
MMCX Connector for EarphoneUS$ 0.1 - 0.99MOQ: 100 Pieces
-
MMCX Connector for 50ohm PCB (MMCX-50KW Switch)US$ 0.1 - 0.99MOQ: 100 Pieces
-
Earphones Mmcx rf Micro Coaxial Connector for Flexible CableUS$ 0.1 - 0.6MOQ: 100 Pieces
-
50 Ohms Right Angle Gold-plated MMCX Coaxial Connector for Cables in EarphonesUS$ 0.32 - 0.56MOQ: 500 Pieces
Specifications
MMCX Connector for 50ohm PCB
RF straight socket
For PCB
with switch
Female, Clamp
MMCX RF coaxial connectors introduction:
Type MCX RF coaxial Connector is a Kind of miniature Connectors smaller than type MCX.
Characteristic impedance is 50Ω. The characteristic of connectors is in small volume, light weight, Convenient
Connection and reliable. They are widely used in connect with the RF coaxial cables, transmission of RF signal,
equipments or small-sized communications network that are demanding on systematic volume and weight. By
using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assemly line.
MMCX
Impedance: 50 Ω
Temperature Range: -55~+155 oC(PE cable -40~+85oC )
Frequency Range: DC~6GHz( Semi-rigid cable DC~6GHz)
Working Voltage: 170Vr.m.s (50Ω) at sea level
Withstanding Voltage: 500V(50Ω) r.m.s at sea level
Contact resistance:
Center contact ≤5 mΩ
Outer contact ≤2.5mΩ
Insulation resistance : ≥ 1000 M Ω
Center conductor retention force ≥0.28N
Insertion Loss: 0.18dB/1GHz
Engagement force ≤ 15N
Disengagement force ≥6N
Voltage standing wave ratio
straight ≤1.25/3GHz
Right angle ≤1.43/3GHz
Durability(mating) ≥500 (cycles)
Insulator: PTFE
Body: brass & gold plated
Pin contact: brass & gold plated
Socket contact; beryllium-copper & gold plated.
Crimp ferrule: copper alloy & nickel or gold plated
o-ring sealing : 6146 sllicone rubber.
Resilient contact: beryllium-copper & gold plated.
Applicable standard:
CECC 22340
