MMCX Female Earphone Series Connector

MMCX Female Earphone Series Connector thumbnail-1
MMCX Female Earphone Series Connector thumbnail-2
MMCX Female Earphone Series Connector thumbnail-3
MMCX Female Earphone Series Connector thumbnail-4
MMCX Female Earphone Series Connector photo-1

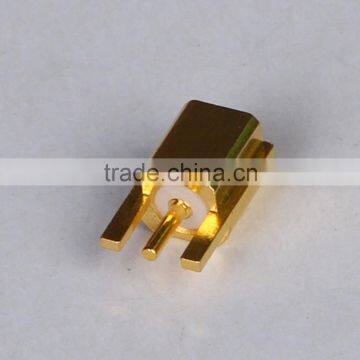

MMCX Female Earphone Series Connector photo-2

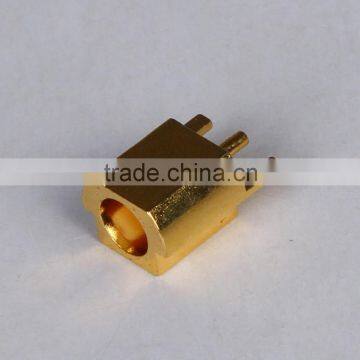

MMCX Female Earphone Series Connector photo-3

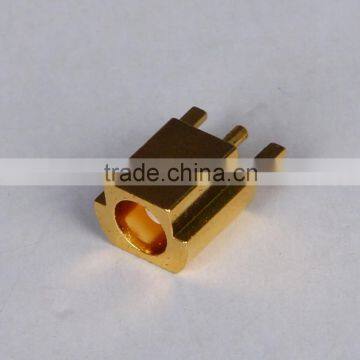

MMCX Female Earphone Series Connector photo-4
US$ 0.01 - 0.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
MMCX-50KE
Contact Supplier Request Quote Chat Now
Shenzhen Sihanming Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SH-Link
Model Number MMCX-50KE
Type MMCX
Application RF
Gender Female

 MAJOR TECHNICAL CHARACTERISTIC

 Temperature range                                5—+155℃(PE Cable -40—+85℃

 Impedance                                              50Ω

 Frequency range                                    DC-6GHz

 Working voltage                                     170V r.m.s at sea level

Withstanding voltage                              500V r.m.s at sea level

Contact resistance

Center contact                                          ≤5 mΩ

Outer contact                                            ≤2.5 mΩ

Insulation resistance                             ≥1000MΩ

Center conductor retention force         ≥0.28N

Insertion loss                                          0.18dB/1GHz

Engagement force                                 ≤15N

Disengagement force                           ≥6N





Voltage Standing Wave Ratio

Straight                                                   ≤1.25/3GHz

Right angle                                            ≤1.43/3GHz

Durability(mating)                                ≥500Cycles

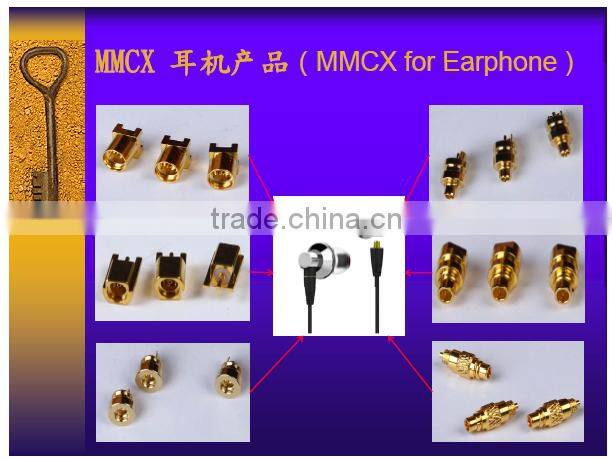

MMCX female earphone series connector

MMCX female earphone series connectorMMCX female earphone series connectorMMCX female earphone series connector





• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.

• Please contact us for more details.
