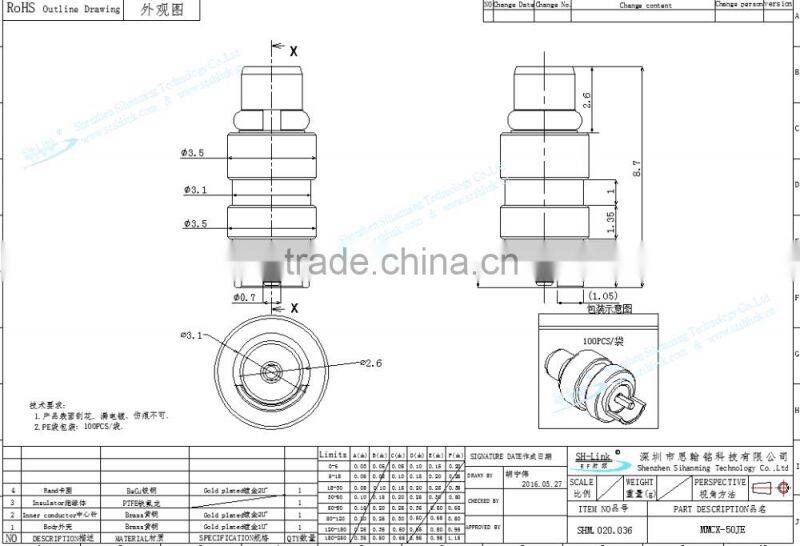

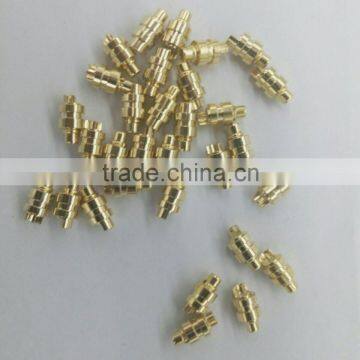

Help CenterMmcx rf Micro Coaxial Connector for Earphones
Related Products
-
50ohm Straight Surface Mount MMCX Earphone Connector, Jack, Solder TerminationUS$ 0.5 - 0.8MOQ: 100 Pieces -
Mini MMCX Jack Right Angle Connector Crimp/Solder Attachment For RG174, RG316,US$ 0.1 - 0.99MOQ: 100 Pieces
-
MMCX Female Earphone Series ConnectorUS$ 0.01 - 0.5MOQ: 100 Pieces
-
MMCX Connector for EarphoneUS$ 0.1 - 0.99MOQ: 100 Pieces
-
MMCX Connector for 50ohm PCB (MMCX-50KW Switch)US$ 0.1 - 0.99MOQ: 100 Pieces
MAJOR TECHNICAL CHARACTERISTIC
Temperature range 5—+155℃(PE Cable -40—+85℃
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 170V r.m.s at sea level
Withstanding voltage 500V r.m.s at sea level
Contact resistance
Center contact ≤5 mΩ
Outer contact ≤2.5 mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤15N
Disengagement force ≥6N
Voltage Standing Wave Ratio
Straight ≤1.25/3GHz
Right angle ≤1.43/3GHz
Durability(mating) ≥500Cycles
• The aim of our company is to provide you outstanding quality, fast delivery, reasonable price, excellent after-sales.
• Please contact us for more details.
mp:+86 13612903925
wechat:Y13659767793
Whatsapp:+86 13612903925
