Home > Industrial Equipment & Components > Welding Equipment > Butt Welder > SHG630 HDPE Pipe Fitting Fabrication Machine

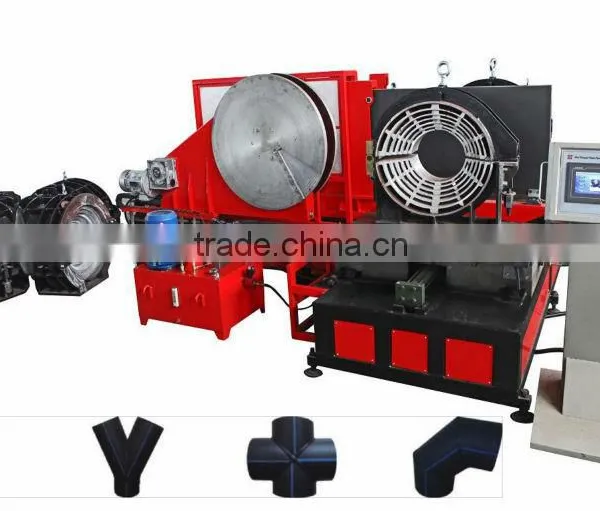

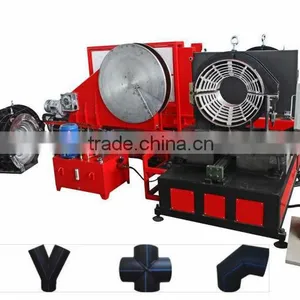

SHG630 HDPE Pipe Fitting Fabrication Machine

Name: SHG630 HDPE Pipe Fitting Fabrication Machine
Brand: Shengda
SKU: 104620077
Availability: InStock

SHG630 HDPE Pipe Fitting Fabrication Machine thumbnail-1

SHG630 HDPE Pipe Fitting Fabrication Machine thumbnail-2

SHG630 HDPE Pipe Fitting Fabrication Machine thumbnail-3

SHG630 HDPE Pipe Fitting Fabrication Machine thumbnail-4

SHG630 HDPE Pipe Fitting Fabrication Machine photo-1

SHG630 HDPE Pipe Fitting Fabrication Machine photo-2

SHG630 HDPE Pipe Fitting Fabrication Machine photo-3

SHG630 HDPE Pipe Fitting Fabrication Machine photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Shengda

Contact Supplier Request Quote Chat Now

Wuxi Shengda Plastic Pipes Welding Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Shengda

Model Number SHG630

Input Voltage 380V,50Hz

Power 29.23KW

Usage plastic pipe fitting making

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

SHG630 workshop pipe fitting welding machine, HDPE pipe fitting fabrication machine

Application and features :

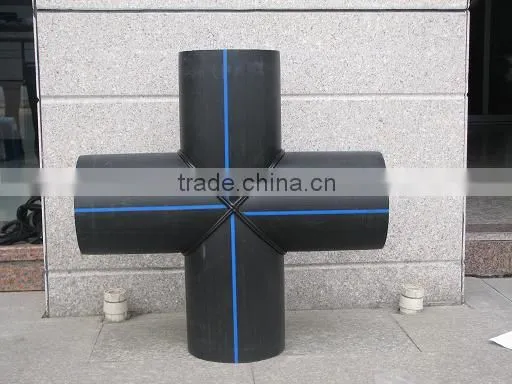

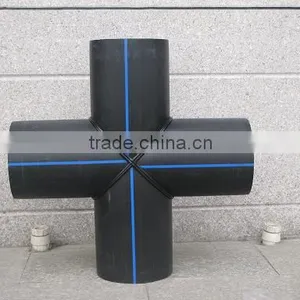

♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phases

We also produce the band saw to cut pipe with angle to make fitting. Please click into our website.

Main parameters:

Model		SHG630
Pipe sizes (mm)		315,355,400,450,500,560,630
Application		0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used)
Heating plate Max. Temp.		270°C
Temp. deviation in surface(170~250°C)		<±7°C
Pressure adjustable ranges		0~16MPa
Working voltage		380V,50Hz
Heating plate power		22KW
Hydraulic unit power		2.2KW
Planing tool power		4.0 KW
Total power		28.2KW
Weight		4830KG(Don`t include optional parts )
Packing	Cases	9 Plywood Cases
	Volume	22.7 CBM

Company profile:

Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
