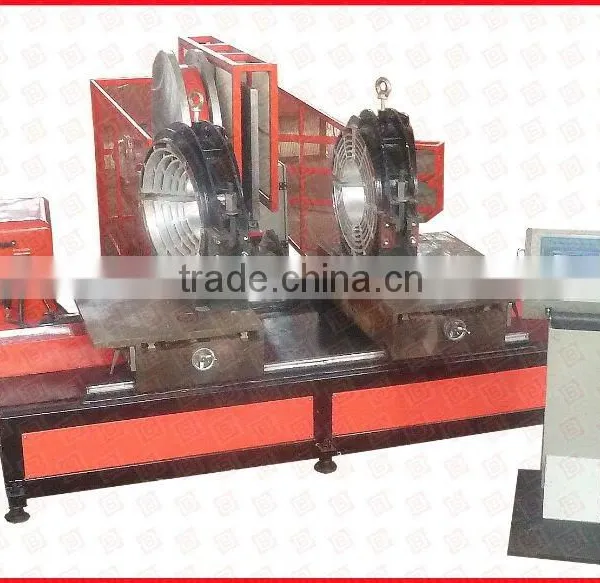

SHG450 PE pipe fitting fabrication machine, plastic pipe fitting fusion machine
Application and features :

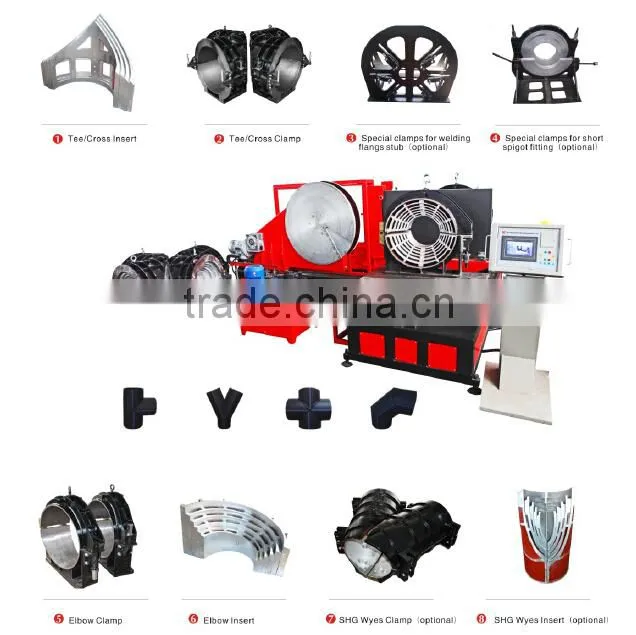

♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phases.
Main parameters
Model |
SHG450 |
|
Pipe sizes (mm) |
200,225,250,280,315,355,400,450 |
|
Application |
0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used) |
|
Heating plate Max. Temp. |
270°C |
|
Temp. deviation in surface(170~250°C) |
<±7°C |
|
Pressure adjustable ranges |
0~16MPa |
|
Working voltage |
380V,50Hz |
|
Heating plate power |
12.2KW |
|
Hydraulic unit power |
2.2 KW |
|
Planing tool power |
3.0 KW |
|
Total power |
17.4KW |
|
Weight |
2850KG(Don`t include optional parts ) |
|
Packing |
Cases |
4 Plywood Cases |
Volume |
14.66 CBM |
|
Optional parts:
♦ Special clamps for welding flange stub
♦ Special clamps for short spigot fitting
♦ Special clamps for welding Y shape (45° and 60 °) fittings
Company profile:
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
