Specifications
Rotary Carton Die-cutter>Adjustable wind flow
>High stability
>Planetary gear structure
>Long life rubber rollers

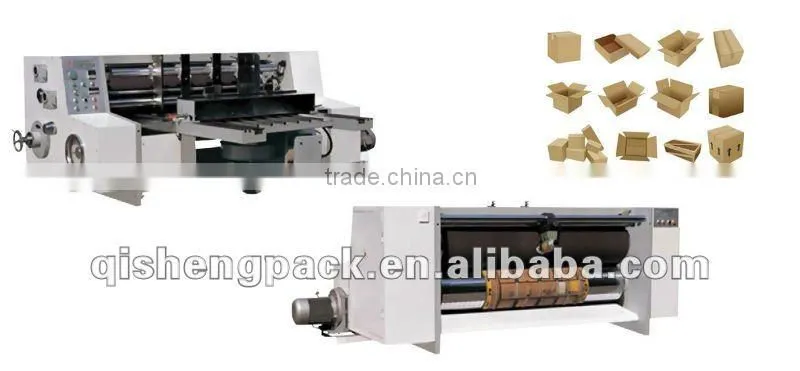

GM Rotary Carton Die-cutter
Features:
Vacuum sucking with auxiliary kick-style paper feeding system .The wind flow can be adjusted for smooth feeding subject to paper size and the bending degree.
The side shutter is adjustable manually. The front shutter can be synchronically adjusted for three layers and five-layer corrugated paper as well as for the clearance of manual movement.
Phase adjustment device, planetary gear.
Mechanical drive transmission rubber rollers can move left-and-right for 30mm with radial differential adjustment device that maximizes the balance of the wearing on rubber rollers.
Long life rubber rollers
Symmetrical adjustment enhances running stability
Automatic recording or setting output quantity.
Once-another-sheet paper-feeding device provides the options of consecutive feeding and interval feeding .
Model Unit(mm ) |
1200*2300 |
1200*2800 |
1400*2300 |
1400*2800 |
1600*2800 |
1600*3050 |
Breadth (mm ) |
2300 |
2800 |
2300 |
2800 |
2800 |
3050 |
Maximum feeding size(mm ) |
1200*2000 |
1200*2400 |
1400*2100 |
1400*2400 |
1600*2400 |
1600*2900 |
Minimum feeding size (mm ) |
320*320 |
320*320 |
400*400 |
400*400 |
450*450 |
450*450 |
Maximum output speed (sheet) |
120sheets/min |
120sheets/min |
110sheets/min |
110sheets/min |
100sheets/ min |
100sheets/ min |
Template screw hole clearance(mm) |
100*100.1 |
100*100.1 |
100*105 |
100*105 |
100*107 |
100*107 |
Size of the machine area |
4300*2090*2280 |
4700*2090*2280 |
4200*2290*2280 |
4700*2190*2350 |
4700*2290*2400 |
4950*2290*2300 |
Note; above models do width size according to customer to do a narrowwidth. Thewidest can be3500mm.
