Specifications
GM Auto rotary die cutting Machine>Adjustable wind flow
>High stability
>Planetary gear structure
>Long life rubber rollers

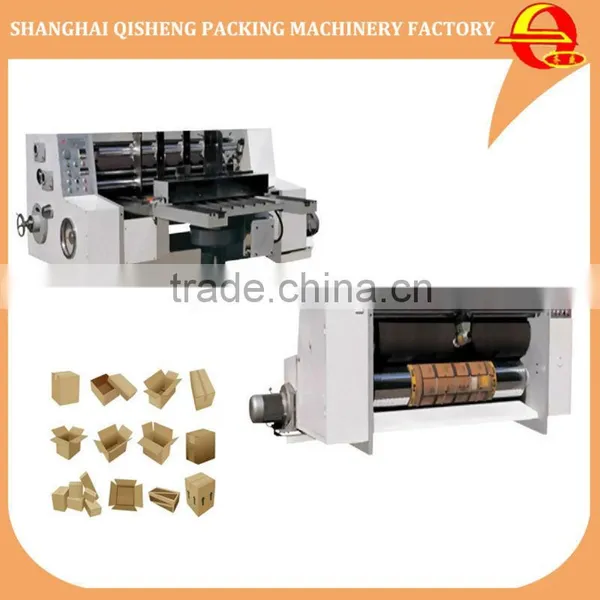

GM Auto rotary die cutting Machine
Vacuum sucking with auxiliary kick-style paper feeding system .The wind flow can be adjusted for smooth feeding subject to paper size and the bending degree.
smooth feeding subject to paper size and the bending degree.
The side shutter is adjustable manually. The front shutter can be synchronically adjusted for three-layer and five-layer corrugated paper as well as for the clearance of manual movement
Phase adjustment device, planetary gear.
Mechanical drive transmission rubber rollers can move left-and-right for 30mm with radial differential adjustment device that maximizes the balance of the wearing on rubber rollers. Long life rubber rollers.
30
Symmetrical adjustmenenhances running stability.
Automatic recording or setting output quantity.
ModelUnit(unit:mm ) |
1200*2300 |
1200*2800 |
1400*2300 |
1400*2800 |
1600*2800 |
1600*3050 |
Breadth (unit:mm ) |
2300 |
2800 |
2300 |
2800 |
2800 |
3050
|
Maximum feeding size(unit:mm ) |
1200*2100 |
1200*2500 |
1400*2100 |
1400*2500 |
1600*2500 |
1600*2900 |
Minimum feeding size (unitmm) |
320*320 |
320*320 |
400*400 |
400*400 |
450*450 |
450*450 |
|
mm Maximum die cutting size (unit:mm) |
1200*2000 |
1200*2400 |
1400*2000 |
1400*2400 |
1600*2400 |
1600*2750 |
Maximum output speed (sheet/min) |
120sheets/min |
120sheets/min |
110sheets/min |
110sheets/min |
100sheets/min |
100sheets/min |
Template screw hole clearance(mm) |
100*100.1 |
100*100.1 |
100*105 |
100*105 |
100*107 |
100*107 |
