Specifications
Paper separating and Line Pressing Machine1.Supply Ability: 1 Set/Sets per Week
2. easy stable and adjustable
3.ISO & CE

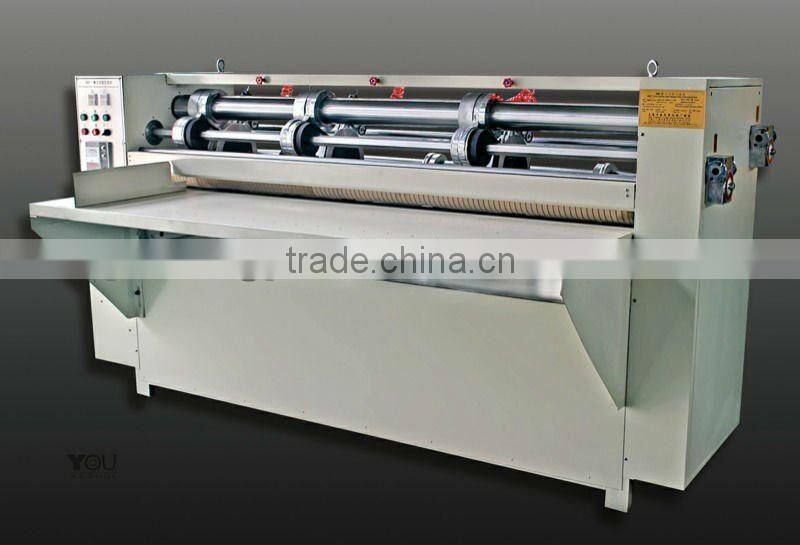

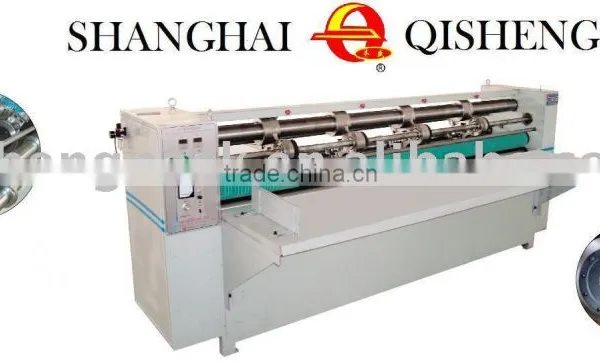

SBF Thine-knife paper separating and line pressing machine
Features:
Semi-Automatic cardboard creasing and cutting machine adopts manual feeding for straight paperboards, and automatic-feeding for across paperboards. It has the features of easy, stable adjustment, convenient repair and maintenance. This machine is used to cut the hard cardboard, grey paperboard bind in the book cover. It can cut the big size cardboard into required size, and into many slots at one time, so it has high working efficiency. This machine is a necessary equipment in book binding.
Main Specifications:
Model (unit: mm) |
SBF2200 |
SBF2500 |
SBF3000 |
Width |
2200 |
2500 |
3000 |
Max feeding size |
2100 |
2400 |
2900 |
Min cutting size |
120 |
120 |
120 |
Max knife diameter |
¢260 |
¢260 |
¢260 |
Min knife diameter |
¢225 |
¢225 |
¢225 |
Power |
3 |
4 |
4 |
Pressing line wheel |
6 |
6 |
6 |
Cutting knife |
4 |
4 |
4 |
Dimension |
3100*1250*1350 |
3400*1250*1350 |
3950*1250*1350 |
Note: The above models breadth can be made according to the required size of the client. The maximum width is 3500mm.
