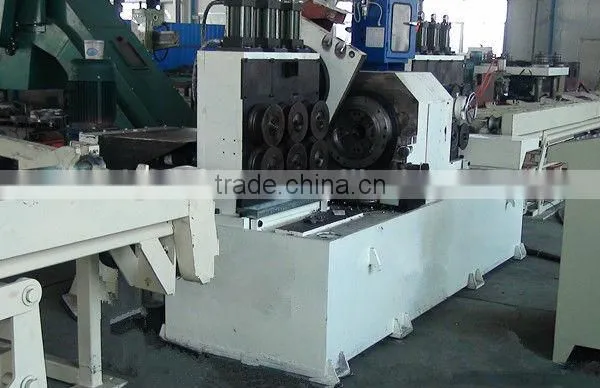

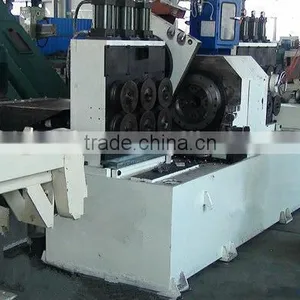

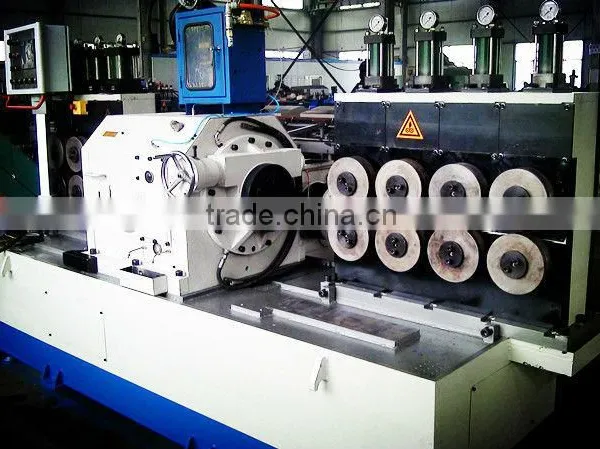

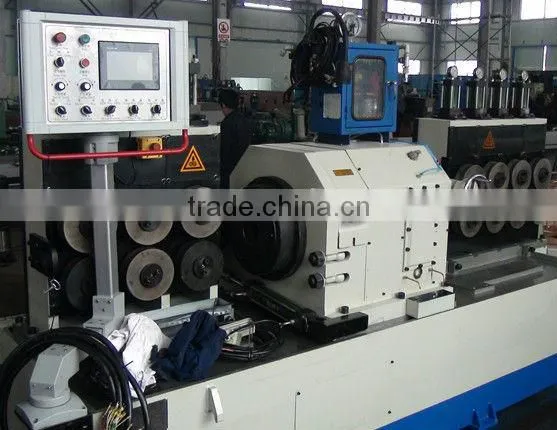

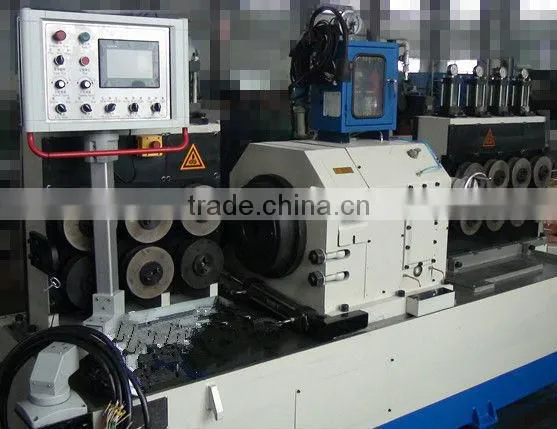

WXC80 lathe precision machining parts
Ⅰ. WXC80 lathe precision machining parts advantages:
1. Green, with no environmental harm.
2. Surface of finished goods possesses better brightness.
3. Faster turning and straightening, and higher working efficiency.
4. Have unique advantages in processing over-long bars
(including infinitely long coiled raw materials).
5. Operation is simple, reducing labor cost and enhancing profit.
6. All of the metal shavings of turning can be recycled and resold,
reducing cost and enhancing profit once again.

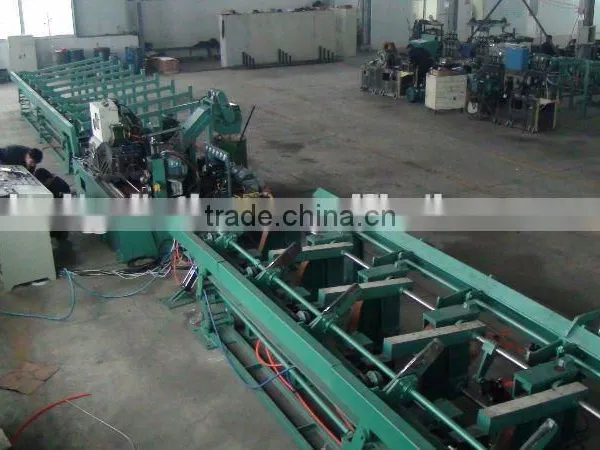

Features: practical; stable processing; highly speed; high efficiency; better surface quality. Online adjusting tool holders. Full-automatic online loop-locked control of material diameter can be achieved if more control points are added. The whole line of the equipment owns high degree of automation. Turning speed of materials can reach 1-12m/min. The equipment possesses automatic and manual control systems, and the two systems can be interlocked in usage.
New-generation products of centerless lathe series independently developed by Yantai Haige Machine Tools Co., Ltd are mainly used for the skin processing of long and round metal materials, including round steel (tubing) etc. They can rapidly wipe off the defects of bars, such as surface crack, oxide layer and decarburized layer. Furthermore, they can produce high-quality bar, tubing, and wire rod of metal brightness with high precision and surface roundness. The efficiency is several times to more than ten times superior to conventional craft, greatly reducing numbers of workers and equipment cost.
|
Specification |
WXC80C |
|
RAW |
Diameter Range(mm) |
Φ21~Φ85 |
Raw Material Length(mm) |
≥2200 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-88 second group |
|
Roundness |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50μm |
|
FINISHED |
Diameter Range |
Φ20~Φ80 |
Unilateral Cutting Depth (mm) |
0.35~1.50 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03mm |
|
Feeding Cutting Speed(m/min) |
1.0-10.0(for continuous chips and high strength and hardness should reduce the speed) |
|
Cutter Head Rotational Speed(rpm) |
430~1200 |
|
Main Machine Motor Power(KW) |
55 |
|
Auxiliary Machine Motor Power(KW) |
5.5 X 2(Four Poles) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
3.0m X 3.5m X 2.4m machine ( for your reference) |
|
|
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m |
15.0m X 5.0m X 2.4m ( for your reference) |
|
Main Machine Weight |
8.0 (11.5) ( for your reference) |
|
Total Capacity(KW) |
75 |
|
|
Compressed Air Source (user prepare by themselves) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier |
|
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
|
