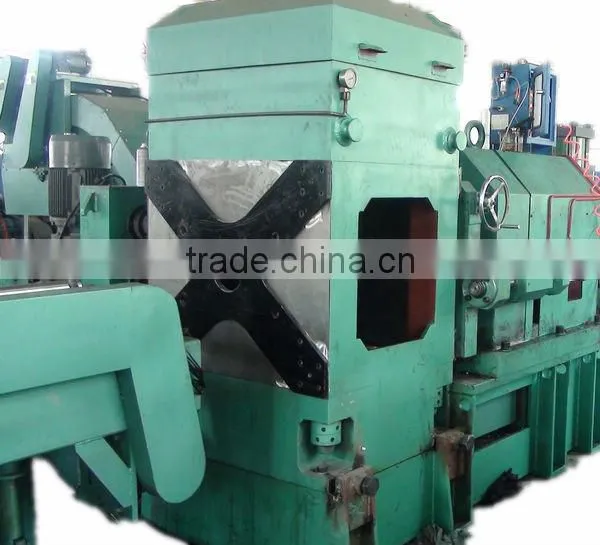

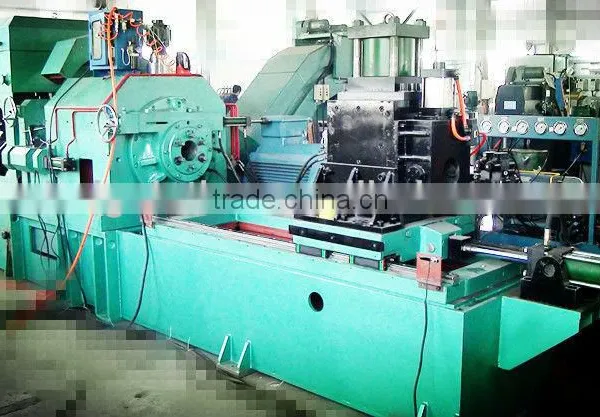

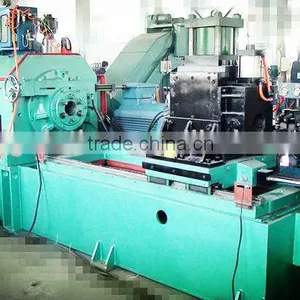

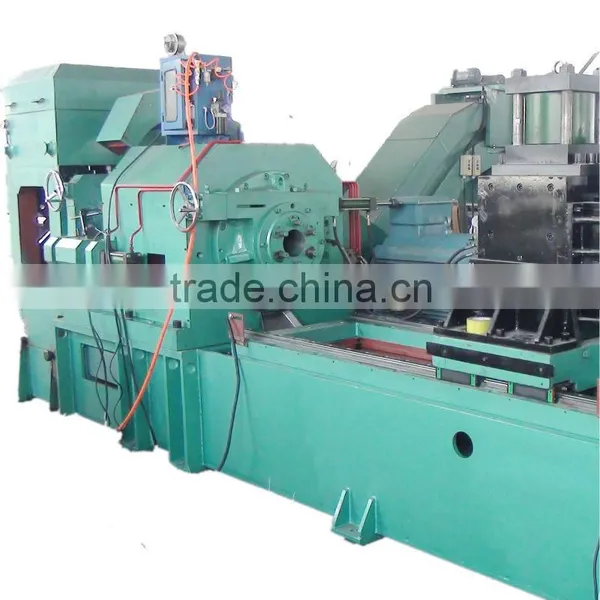

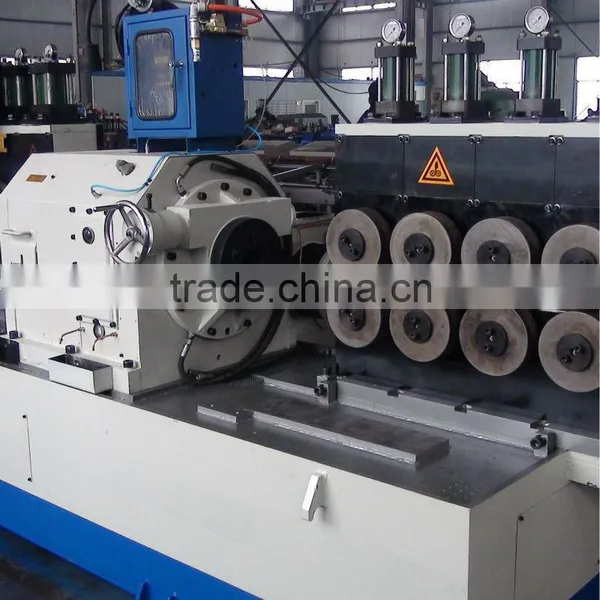

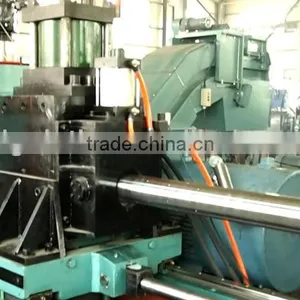

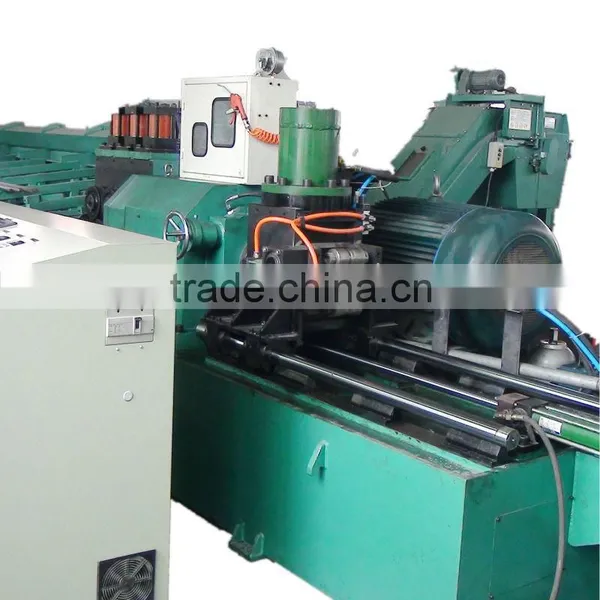

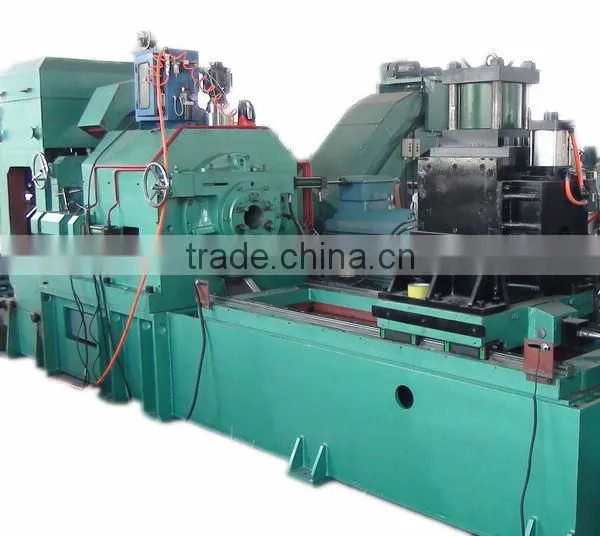

Series WXC centerless lathe is the high efficiency lathe which is specialized in rough and
precise processing of the metal bars surface. It removes the decarburized layer, cracks and other
defects from the surface of the bars with high precision.In the working process, the metal
bar doesn’t rotate and just walks forward. The cutter tools are driven to rotate by the cutter head
to rotate fastly to peel the surface of the bars.
Advantages compared with the general lathe
1. The over-long metal bars or the wire rods can also be processed.
2. The precessing speed: 1~12m/min which is several times faster than the general lathe.
3. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling.
The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Process
Parameters:
|
cnc lathe brass parts
|
|||
MODEL |
WXC130S |
||
RAW |
Diameter Range(mm) |
Φ40~Φ135 |
|
Raw Material Length(mm) |
≥2800 |
||
Tensile Strength(Mpa) |
≤1100 |
||
Surface Hardness |
≤HB320 |
||
Curvature(mm/m) |
≤1.50 |
||
Diameter Tolerance |
According to GB 702-88 second group |
||
Roundness |
≤50% of the diameter tolerance |
||
Surface Roughness(Ra) |
≤25-50μm |
||
FINISHED |
Diameter Range |
Φ35-Φ130 |
|
Unilateral Turning Depth (mm) |
1-2.5 |
||
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
||
Surface Roughness(Ra) |
≤12.5μm |
||
Curvature(mm/m) |
≤1.5 |
||
Roundness |
≤0.03 |
||
Feeding Cutting Speed(m/min) |
0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) |
||
Cutter Head Rotational Speed(rpm) |
240-670 (Six poles) 360-1000 (Four poles) |
||
Main Machine Motor Power(KW) |
110 |
||
Auxiliary Machine Motor Power(KW) |
11(feeding part) |
||
|
Main Machine Outline Dimensions (Length*Width*Height) m |
5.3 X 3.5 X 3 ( for your reference) |
||
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18 X 3.5 X 3 ( for your reference) |
||
Main Machine Weight |
20.5 (29) |
||
Total Installed Capacity(KW) |
130 |
||
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3gasholder, two-stage oil-water separator and compressed air freezing drier |
||
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
Yantai Haige Machine Tools Co., Ltd is a professional company in
manufacturing of *Round metal bar peeling machine
(used to quickly remove the rusted layer, cracks and other defects from the surface of the round black bars)
*Round metal bar straightening machine
(used to straighten and calender the metal bars after peeling)
*Skiving roller burnishing machine
(used to process the inner wall of the cylinder or the metal tube/Pipe)
*Piston rod polishing machine
(used to polish the piston rod before and after plating
