Automatic Feeding Printing Slotting Equipment Machine Group

Name: Automatic Feeding Printing Slotting Equipment Machine Group
Brand: qisheng
SKU: 104607385
Availability: InStock

US$ 20,000 - 60,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

qisheng

Model Number:

ZSYC-A

Shanghai Qisheng Packing Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name qisheng

Model Number ZSYC-A

Specifications

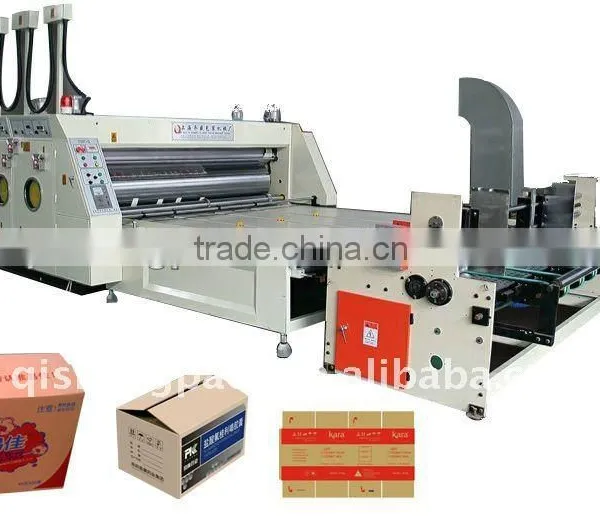

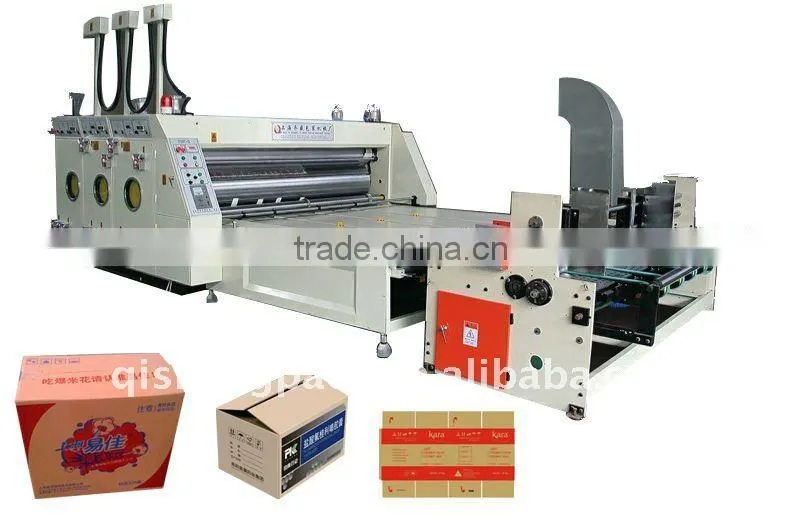

Automatic feeding printing slotting equipment machine group
packaging machinery
packaging machine package machinery

Automatic feeding printing slotting equipment machine group

Features:

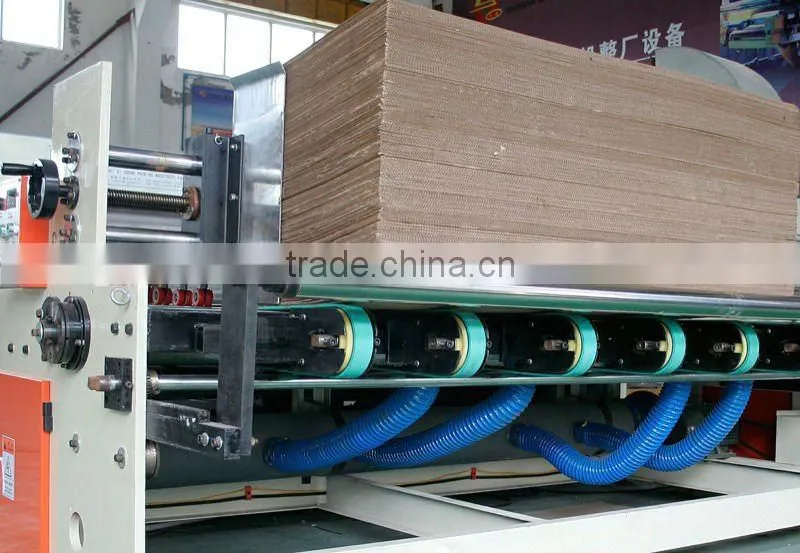

Paper feeding section
- Automation chain paper feed
- ,.The prop fixes position , ensures that paper feed is accurate.
- Automatic counting.

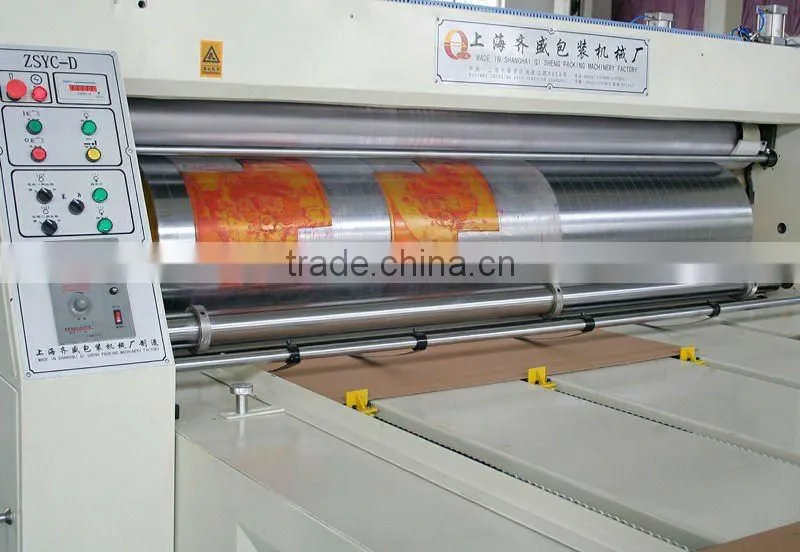

Printing section
- ,360°. Planetary transmission and electrical positioning. 360-degreeadjustment in both dynamic and static condition
- ,. The embossing rollers get apart from printing template once machine stops.
- ,. The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
- . Colors of 1to 4 can be combined easily
- .The pneumatic provides ink circulatory system from attracting style
- ,.Top-quality paper separating and grooving blades are used
- .Printing plate device printing a roller pretending to have a fleetness to hang
- .Step pedal is sued to control the side of printing plate when in mounting and dismounting

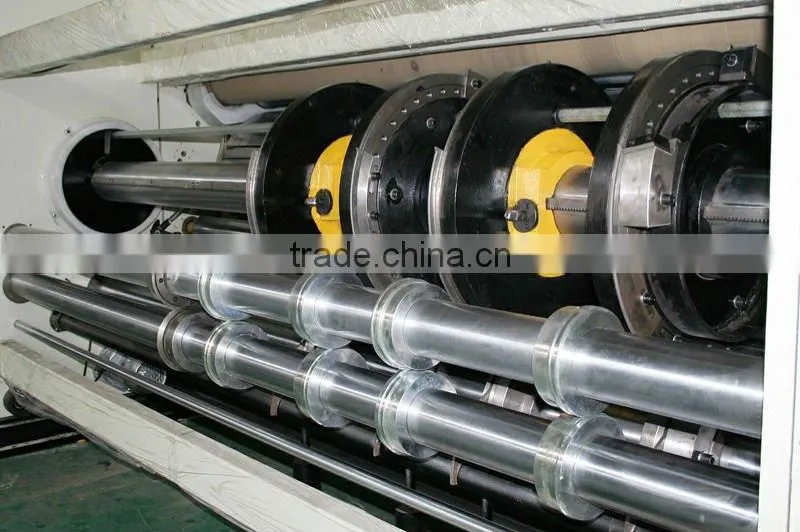

Slotting headquarter
- 360°.360-degree adjustment of grooving position.
- . Integrated movement of the four grooving blades.
- ,. Top-quality steel blades are used to guarantee smoothness in grooving.
45#, Gear wheel 45 # steel forging , pure fire of high frequency
- ,. Transmission gears are joined together with no bonds, which ensures long-term printing precision.
- ,.Dip-in lubrication guarantees long life.
- ,. Electrical shit technology and pneumatic interlock is used on printing section and grooving section.
- . Imported electrical appliances and bearings are used.

Specification:

Model(Unit:mm)	1200*2200	1400*2600	1400*2800	1600*2800	1800*3000
Maximum feeding size	1200*2000	1400*2450	1400*2650	1600*2650	1800*2850
Minimum feeding size	350*350	350*350	350*350	450*450	500*500
Maximum printing breadth	1150*1800	1350*2200	1350*2400	1550*2400	1750*2600
Maximum slotting size	7*300	7*350	7*350	7*400	7*450
Maximum slotting clearance	100	110	110	120	130
Slotting blade thickness	7	7	7	7	7
Standard printing plate thickness	7	7	7	7	7
Maximum speed	70	65	65	60	50
Maximum height of pushing paper	-200mm	-200mm	-200mm	-200mm	-200mm
Minimum height of pushing paper	300mm	350mm	350mm	450mm	500mm
Min feeding size	300*400	350*400	350*400	450*500	500*600
