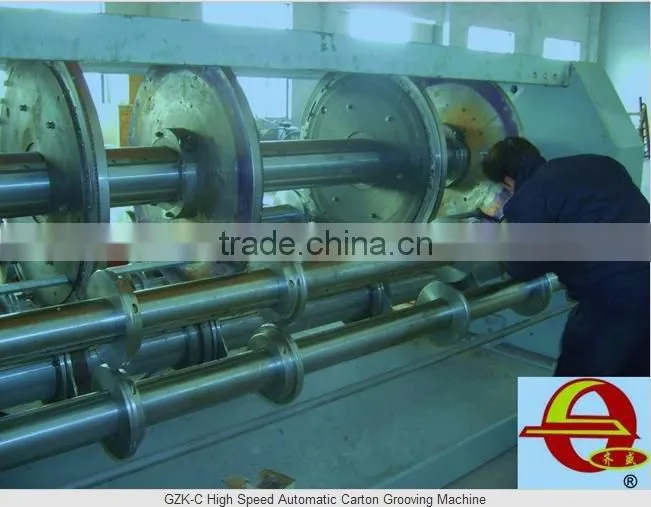

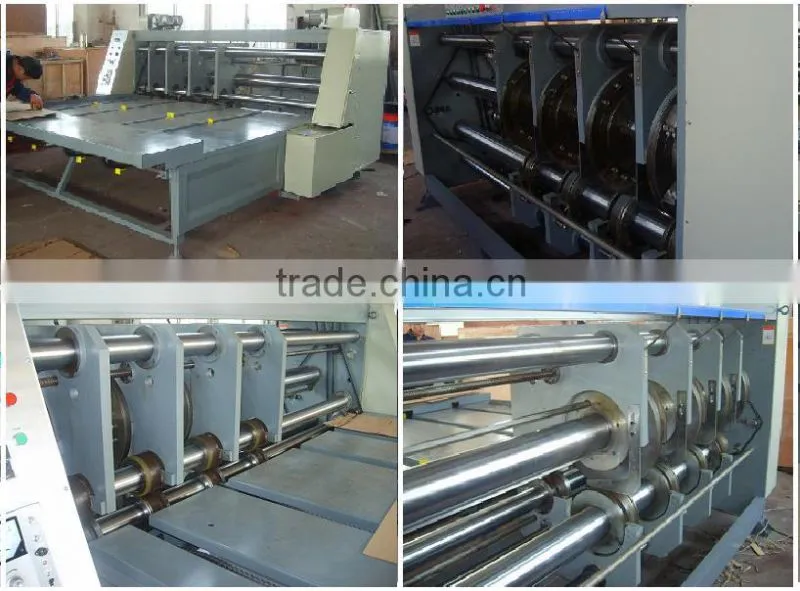

Semi Automatic Carton Box Slotting Machine
Specifications
Semi automatic carton box slotting machine1. one year warranty
2.export to more than 20 countries
3.good after sale service
Semi automatic carton box slotting machine
Packing slotting machine
carton packaging machine
packaging machinery
Package slotting machine
slotting machine manufacturer
This kind of machine is used for corrugated cardboard cutting, line pressing, slotting and corner cutting. Indispensable device for carton box factory.
Technical Specification:
|
Model(unit:mm) mm |
1200*2200 |
1400*2600 |
1600*2800 |
1800*3000 |
2200*3600 |
|
Breadth |
2200 |
2600 |
2800 |
3000 |
3600 |
|
Maximum feeding size
|
1200*2000 |
1400*2400 |
1600*2600 |
1800*2800 |
2200*3400 |
|
Minimum feeding size
|
280*280 |
300*300 |
420*420 |
500*500 |
600*600 |
|
Maximum grooving size
|
7*300 |
7*350 |
7*400 |
7*450 |
7*550 |
|
Minimum grooving clearance
|
100 |
100 |
100 |
120 |
120 |
|
Grooving blade thhickness
|
7 |
7 |
7 |
7 |
7 |
|
Machine overall dimensions
|
3150*3150* 1400 |
3550*3200* 1400 |
3850*3300* 1500 |
4050*3450* 1600 |
5550*4550* 1800 |
|
Maximum speed
|
70sheet/min
|
60sheets/min
|
60sheets/min
|
50sheets/min
|
40sheets/min
|
|
Weight(ton)
|
2.6T |
3T |
4T |
5T |
7T |
|
Power rate
|
2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
