Specifications
carton packing machine1.Easy operation
2.Quick drying suitable for large cartonbox macking
3.multi colors printing

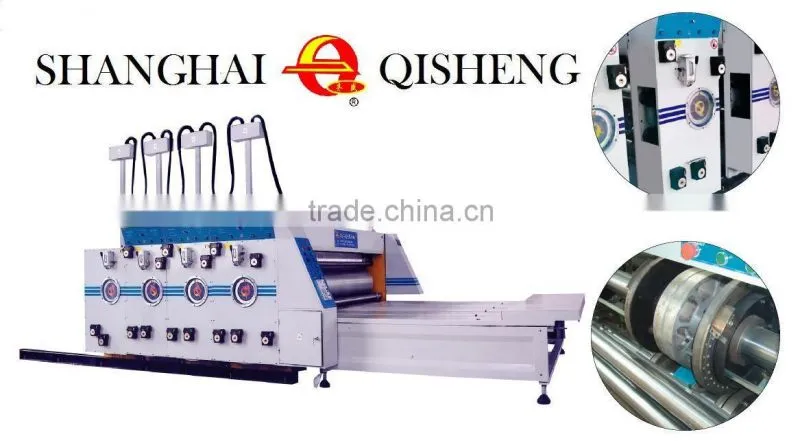

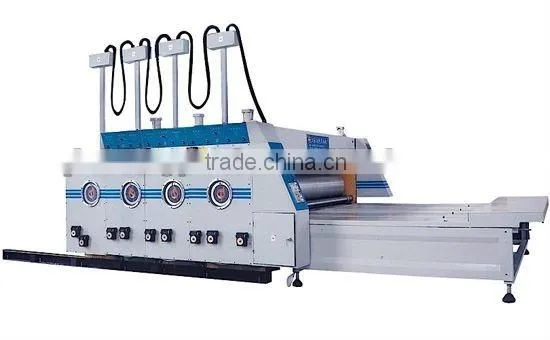

Auotmatic carton packing printing and grooving machine
Features:

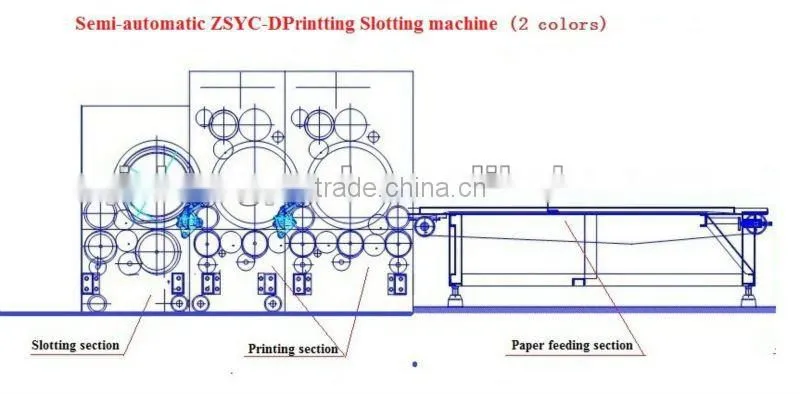

Paper feeding section
– Automation chain paper feed
– The prop fixes position , ensures that paper feed is accurate.
– Automatic counting.

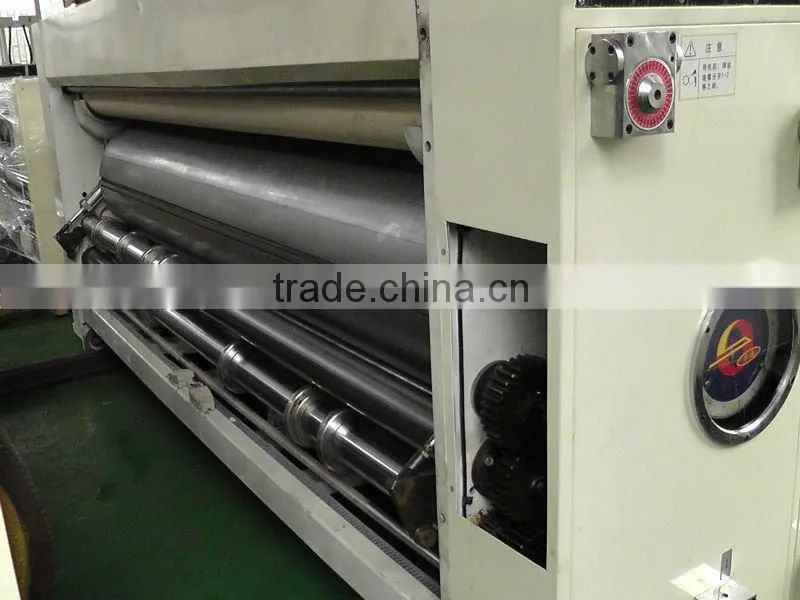

Printing section
– Planetary transmission and electrical positioning. 360-degree adjustment in both dynamic and static condition.
– The embossing rollers get apart from printing template once machine stops.
– The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
– Colors of 1 to 4 can be combined easily.
– The pneumatic provides ink circulatory system from attracting style.
– Top-quality paper separating and grooving blades are used.
– Printing roller equipped with a rapid hang mould device.
– Step pedal is used to control the side of printing plate when in mounting and dismounting.
Slotting section
– 360-degree electromotion adjustment of grooving position.
– the four grooving blades linkage adjustment.
– Top-quality steel blades are used to ensure slotting smoothness.
– Gear wheel adopt 45 # steel forging , quenching of high frequency.
– Non-bonds transmission gears are joined together, which ensures long-term printing precision.
– .Dip-in lubrication ensures long life usage.
– Electromotion shifting and pneumatic locking is used on printing and grooving parts.
Electric parts adopt international and domestic famous brand to ensure the stable motion
Main technological parameters:
Model(Unit:mm) |
1200*2200 |
1200*2400 |
1400*2600 |
1400*2800 |
1600*2600 |
1600*2800 |
1800*3000 |
2400*3200 |
Maximum feeding size |
1200*2060 |
1200*2250 |
1400*2450 |
1400*2650 |
1600*2450 |
1600*2650 |
1800*2850 |
2400*3150 |
Minimum feeding size |
300*300 |
300*300 |
350*350 |
350*350 |
450*450 |
450*450 |
500*500 |
650*650 |
Minimum printing breadth |
1150*1800 |
1150*2000 |
1350*2200 |
1350*2400 |
1550*2200 |
1550*2400 |
1750*2600 |
2350*2800 |
Maximum grooving size |
7*300 |
7*300 |
7*350 |
7*350 |
7*400 |
7*400 |
7*450 |
7*600 |
Minimum grooving clearance |
100 |
100 |
110 |
110 |
120 |
120 |
120 |
120 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Maximum speed |
70 |
70 |
60 |
60 |
60 |
60 |
50 |
30 |
L*W*H |
5500*3100*2500 |
5500*3300*2500 |
5800*3500*2600 |
5800*3500*2600 |
6000*3500*2700 |
6000*3700*2700 |
6500*3900*2900 |
8500*4200*3500 |
