Specifications
automation chain paper feedingPostion fexing ensures precise paper feeding.
Automatic counting.

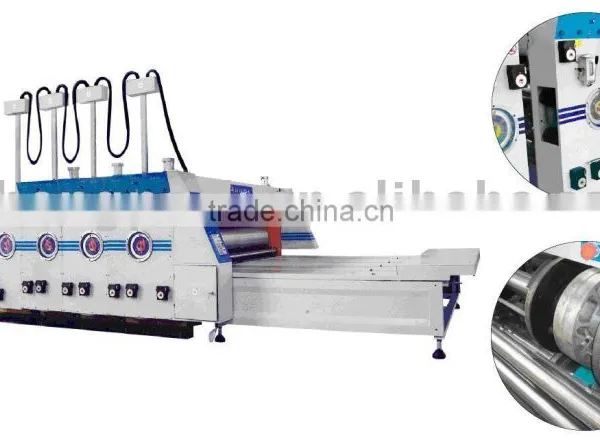

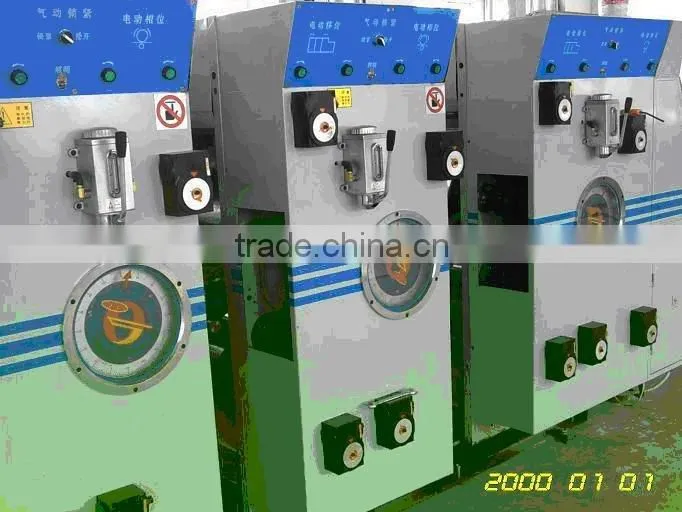

Semi-automatic printing and slotting machine carton box production line
Features:
Paper feeding section
Semi-automation chain paper feed
Postion fexing ensures precise paper feeding.
Automatic counting.
Printing section
Planetary transmission and electrical positioning.360-degree adjustment in both dynamic and static condition.
The embossing rollers get apart from printing template oned machine stops.
The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
Colors of 1 to 4 can be combined easily.
Pneumatic siphon ink supply circulation system.
Lighting system
The printing roller is equipped with template hang-on device.
Step pedal is sued to control the side of printing plate when in mounting and dismounting.
The phasing may an item side,the digital ides decide may
Grooving section
360-degree adjustment of grooving position.
Integrated movement of the four grooving blades.
Top-quality steel blades are used to guarantee smoothness in grooving.
Gear are made of 45# forged and high frequency steels that makes no-gap transmission.
Transmission gears are joined together with no bonds,which ensures long-tem printing precision.
Dip-in lubrication guarantees long life.
Electrical shit technology and pneumatic interlock is used on printing section and grooving section.
Imported electrical appliances and bearings are used.
Main technological parameters
Model(Unit:mm) |
1200*2200 |
1200*2400 |
1400*2600 |
1400*2800 |
1600*2600 |
1600*2800 |
1800*3000 |
2400*3200 |
Maximum feeding size |
1200*2060 |
1200*2250 |
1400*2450 |
1400*2650 |
1600*2450 |
1600*2650 |
1800*2850 |
2400*3150 |
Minimum feeding size |
300*300 |
300*300 |
350*350 |
350*350 |
450*450 |
450*450 |
500*500 |
650*650 |
Minimum printing breadth |
1150*1800 |
1150*2000 |
1350*2200 |
1350*2400 |
1550*2200 |
1550*2400 |
1750*2600 |
2350*2800 |
Maximum grooving size |
7*300 |
7*300 |
7*350 |
7*350 |
7*400 |
7*400 |
7*450 |
7*600 |
Minimum grooving clearance |
100 |
100 |
110 |
110 |
120 |
120 |
120 |
120 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Maximum speed |
70 |
70 |
60 |
60 |
60 |
60 |
50 |
30 |
L*W*H |
5500*3100*2500 |
5500*3300*2500 |
5800*3500*2600 |
5800*3500*2600 |
6000*3500*2700 |
6000*3700*2700 |
6500*3900*2900 |
8500*4200*3500 |
