Help CenterSemi Automatic Chain Feeding Flexo Ink Printing Slotting Machine
Related Products
-
Semi Automatic Carton Folder Gluer MachineUS$ 9,200 - 12,000MOQ: 1 Set -
Corrugated Cardboard Carton Box Making MachineUS$ 146,700 - 263,300MOQ: 1 Set
-
Fully Automatic Corrugated Carton Box Corrugated Printing and Cutting MachineUS$ 2,000 - 40,000MOQ: 1 Set
-
Automatic Vacuum Feeding Printing Slotting MachineUS$ 10,000 - 218,300MOQ: 1 Set
-
Automatic Flexo Printing Slotting Machine ShanghaiUS$ 28,300 - 84,500MOQ: 1 Set
Specifications
Semi automatic chain feeding flexo ink printing slotting machine1.chain feeding type
2.4 color printing
3.one year warranty

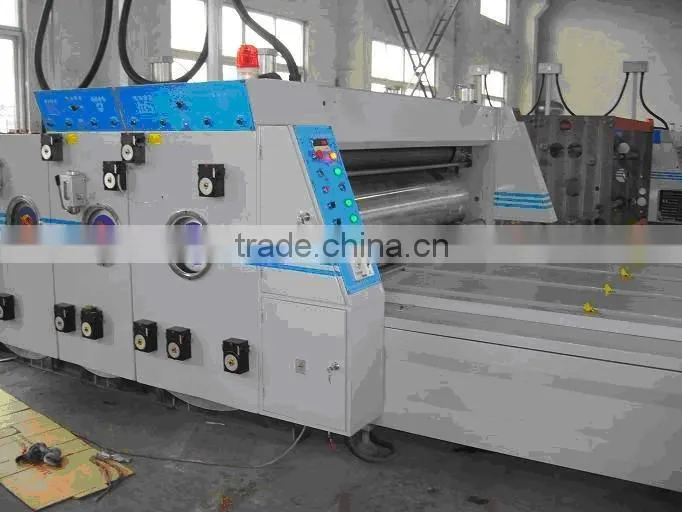

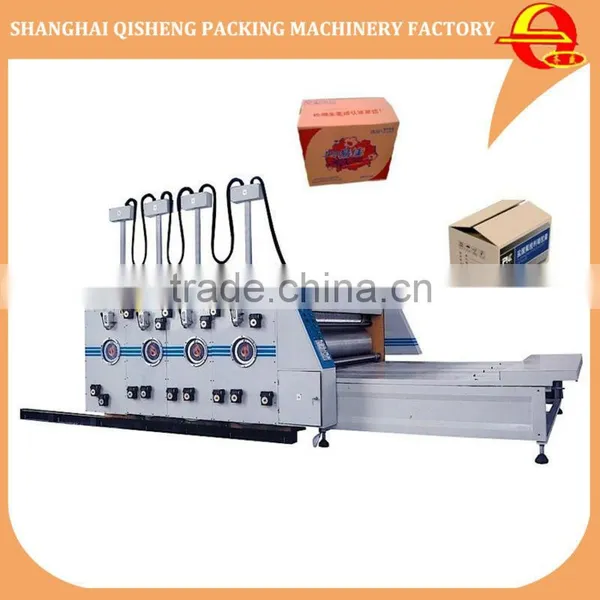

Semi automatic chain feeding flexo ink printing slotting machine
Features:
Paper feeding section
Semi-automation chain paper feed
Postion fexing ensures precise paper feeding.
Automatic counting.
Printing section
Planetary transmission and electrical positioning.360-degree adjustment in both dynamic and static condition.
The embossing rollers get apart from printing template oned machine stops.
The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
Colors of 1 to 4 can be combined easily.
Pneumatic siphon ink supply circulation system.
Lighting system
The printing roller is equipped with template hang-on device.
Step pedal is sued to control the side of printing plate when in mounting and dismounting.
The phasing may an item side,the digital ides decide may
Slotting section
360-degree adjustment of slotting position.
Integrated movement of the four slotting blades.
Top-quality steel blades are used to guarantee smoothness in slotting.
Gear are made of 45# forged and high frequency steels that makes no-gap transmission.
Transmission gears are joined together with no bonds,which ensures long-tem printing precision.
Dip-in lubrication guarantees long life.
Electrical shit technology and pneumatic interlock is used on printing section and slotting section.
Imported electrical appliances and bearings are used.
Main technological parameters
Model(Unit:mm) |
1200*2200 |
1200*2400 |
1400*2600 |
1400*2800 |
1600*2600 |
1600*2800 |
1800*3000 |
2400*3200 |
Maximum feeding size |
1200*2060 |
1200*2250 |
1400*2450 |
1400*2650 |
1600*2450 |
1600*2650 |
1800*2850 |
2400*3150 |
Minimum feeding size |
300*300 |
300*300 |
350*350 |
350*350 |
450*450 |
450*450 |
500*500 |
650*650 |
Minimum printing breadth |
1150*1800 |
1150*2000 |
1350*2200 |
1350*2400 |
1550*2200 |
1550*2400 |
1750*2600 |
2350*2800 |
Maximum grooving size |
7*300 |
7*300 |
7*350 |
7*350 |
7*400 |
7*400 |
7*450 |
7*600 |
Minimum grooving clearance |
100 |
100 |
110 |
110 |
120 |
120 |
120 |
120 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Maximum speed |
70 |
70 |
60 |
60 |
60 |
60 |
50 |
30 |
L*W*H |
5500*3100*2500 |
5500*3300*2500 |
5800*3500*2600 |
5800*3500*2600 |
6000*3500*2700 |
6000*3700*2700 |
6500*3900*2900 |
8500*4200*3500 |
Shanghai Qisheng is a famous enterprise in corrugated carton box packing machines manufacturing field. Founded since 1997, we are a leading manufacturer of flexo printing slotting die-cutting machines and 3/5/7 ply corrugated cardboard machines in China. The fully automatic high speed servo feeding printing slotting and die-cutting machine with stacker, automatic high speed printing slotting gluing integrated machine, automatic printing slotting die-cutting machines and complete corrugated cardboard production line manufactured by us, have won widely praise in printing packing industry and built famous brand both in China and overseas market.
1.Provided by the positive and enthusiastic, meticulous and considerate services and technical advisory services
2.Introduce the characteristics and advance of production;
3.Recommend the best equipments’ configuration and the most suitable products
4.The special requirements are based on design and production.5.Free training of production line of major operators; high-quality talents technical services staff
6.Install the equipments of production line, We would strictly control the production process of each link which any unqualified production cannot be out of the factory to make sure the quality
7.Assist in installed planning infrastructure of equipments;
8.Implementation of the contract on time.
9.the technical staff helped t o install the line10.Ensure success at the trial and provision of long-term technical support and services
11.The equipment is guaranteed for one year and provide permanent service
12.Supply of spare parts free to repair in the warranty period, at cost price after.
13.Regular to return customers’ factory to solve the problems of production equipment
14.Trouble to offer solutions in 24 hours
