Home > Products > Steel bar straightening machine > HAIGE**JY100Z**straightening machines for round bars
HAIGE**JY100Z**straightening machines for round bars
- 10 Set / Sets per Month
- Qingdao Port
- T/T
Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | Bar |
Place of Origin: | Shandong, China | Brand Name: | HAIGE | Model Number: | JY100Z |
Voltage: | 380V/440V | Power(W): | 170KW | Dimension(L*W*H): | 8.1mX3.1mX3.6m |
Weight: | 26.2T | Certification: | ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of straightening machines

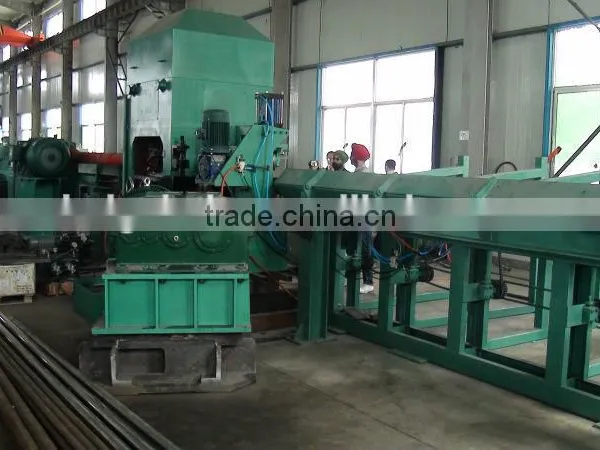

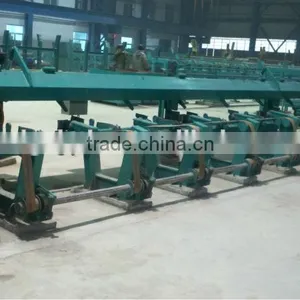

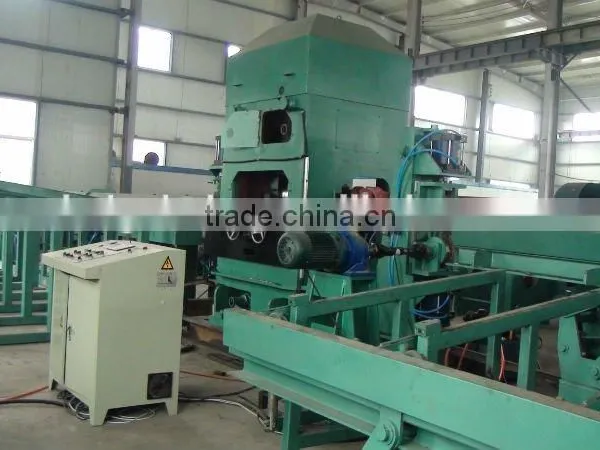

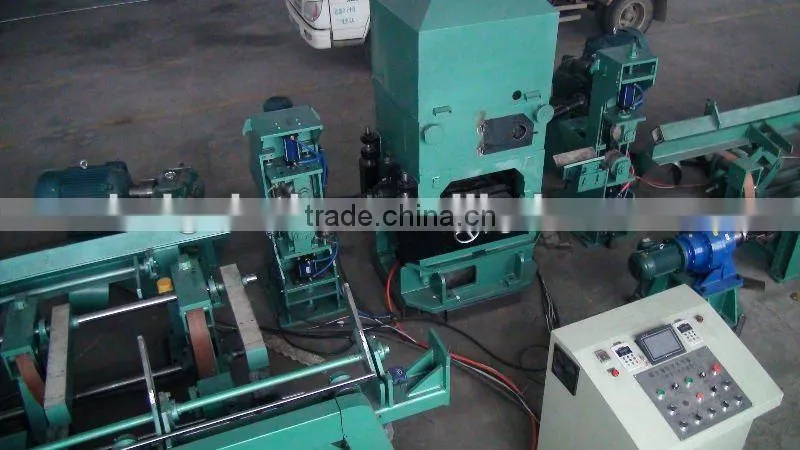

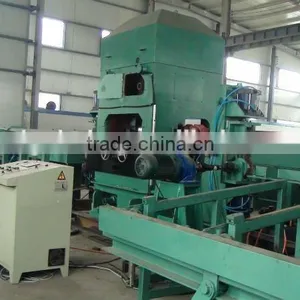

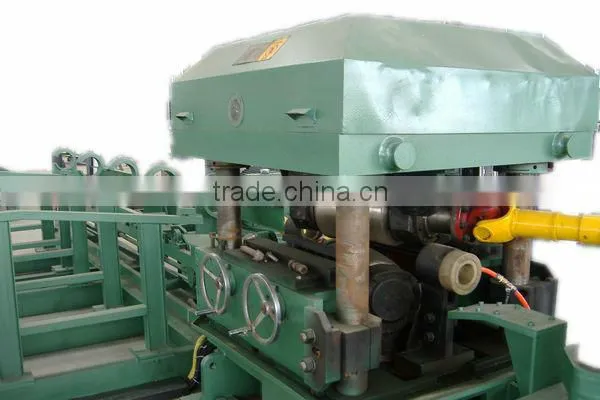

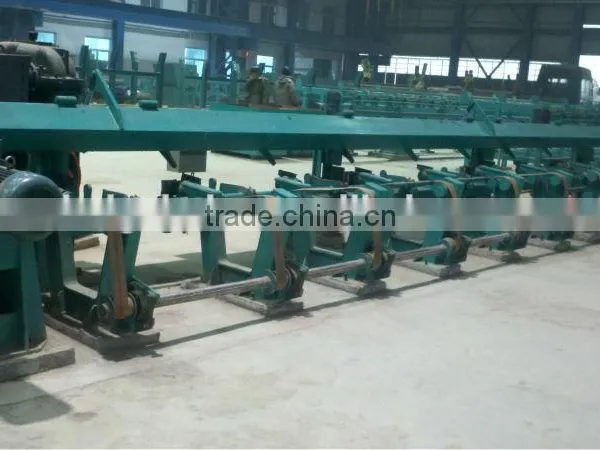

Series JY straightening machines are high-efficiency machines which are mainly used to straighten precisely and calender metal bars peeled. They can use special curve between the two straightening rolls to straighten and calender bars. The equipment contains main machines, cooling lubricant system , electrical system, transfer system and auxiliary machines. (The pictures are as below.)
Main Technical Parameters
Specification | JY100Z | |||
Raw Material | Diameter Range(mm) (excluding drawing material) | Tensile Strength σb≤450(M pa) | Φ25≤d≤Φ100(L ≥3000) | |
Tensile Strength σb≤1000(M pa) | Φ25≤d≤Φ90(L ≥3000) | |||
Surface Hardness | ≤HB380(≤HRC42) | |||
Straightness(mm/m) | ≤3 | |||
Diameter Tolerance | ≤IT10 | |||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||
50<d≤80 | ≤65% of diameter tolerance | |||
d>80 | ≤70% of diameter tolerance | |||
Surface Roughness(Ra) | ≤3.2~6.3mm | |||
Finished Goods | Straightness(mm/m) | ≤0.40 | ||
Diameter Tolerance | ≤IT8 | |||
Surface Roughness(Ra) | ≤0.8μm | |||
Roller Quantity (Pcs) | 2 | |||
Roller Diameter (mm) | Φ380 | |||
Straightening Feeding Speed(m/min) | 2~12(infinitely adjustable-speed) | |||
Host Machine Motor Power (KW) | 75X2 | |||
Lifting Motor Power (KW) | 4 | |||
Host Machine Outline Dimensions (Length*Width*Height) | 8.1mX3.1mX3.6m | |||
Weight | 26.2T | |||
Total Capacity KW | 170 | |||
Compressed Air Source (user prepare by themselves) | 0.5~0.8MPa,1.8m3/min,two-stage oil-water separator |
Yantai Haige International Trading Co.,Ltd.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 20000. There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Contact Information
My Name | Jack |
Tel No. | 86 0535 6726618 |
Mobilephone No. | 86 18663867056 |
Skype Mailbox | |
QQ No. | 3246827024 |
My Mailbox | |
Company Name | Yantai Haige Machine Tools Co.,Ltd |
Office Address | No.128,Guanhai Road ,Laishan District,Yantai,Shandong,China |
Factory Address | No.1,Jingqi Road,Gaoxin District,Yantai,Shandong,China |
Company Website |
If you are interested in our products, please contact me at any time, thanks.
