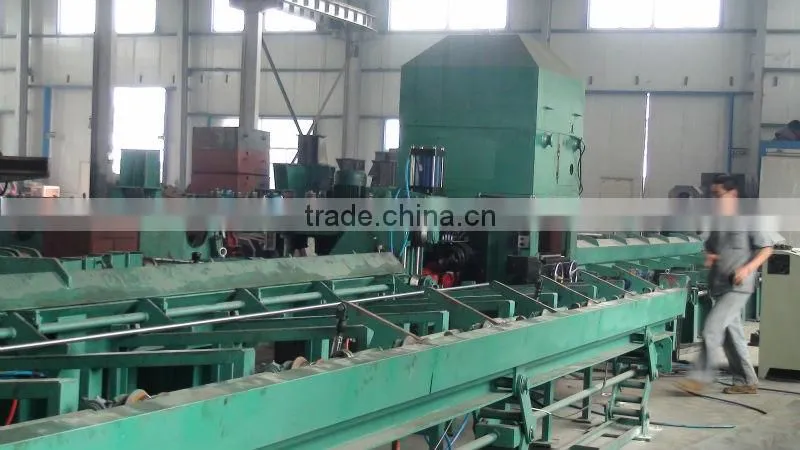

best cheap straightener for round copper pipe/tube/bar
Main Technical Parameters
Specification |
JY80 |
|||
|
Raw
Material
|
Diameter Range(mm) (excluding drawingmaterial) |
Tensile Strength σb≤450(M pa) |
Φ20≤d≤Φ80(L ≥2000) |
|
Tensile Strength σb≤1000(M pa) |
Φ20≤d≤Φ75(L ≥2000) |
|||
Surface Hardness |
≤HB380(≤HRC42) |
|||
Straightness(mm/m) |
Bright Steel ≤3 |
|||
Diameter Tolerance |
Bright Steel≤IT10 |
|||
Circular Degree |
d≤50 |
≤50% of diameter tolerance |
||
50<d≤80 |
≤65% of diameter tolerance |
|||
d>80 |
≤70% of diameter tolerance |
|||
Surface Roughness(Ra) |
Bright Steel≤3.2mm~6.3mm |
|||
|
Finished
Products
|
Straightness(mm/m) |
Bright Steel≤0.40 |
||
Diameter Tolerance |
Bright Steel≤IT8 |
|||
Surface Roughness(Ra) |
Bright Steel≤0.8μm |
|||
Roller Quantity (Pcs) |
2 |
|||
Roller Diameter (mm) |
Φ335 |
|||
Straightening Feeding Speed (m/min) |
2~14 |
|||
Main Machine Motor Power (KW) |
45 X 2 |
|||
Lifting Motor Power (KW) |
3 |
|||
|
Outline Dimensions (Length*Width*Height) (for your reference) |
Main Machine 8.7mX3.3mX3.2m Full Set(including auxiliary machine)15.8mX5.5mX3.0m |
|||
|
Weight (for your reference) |
Main Machine 20.0 T Full Set(including auxiliary machine) 26.0 T |
|||
Total Capacity(for your reference) (KW) |
100 |
|||
Compressed Air Source(user prepare by themselves) |
0.5~0.8MPa,3m3/min,two-stage oil-waterseparator |
|||

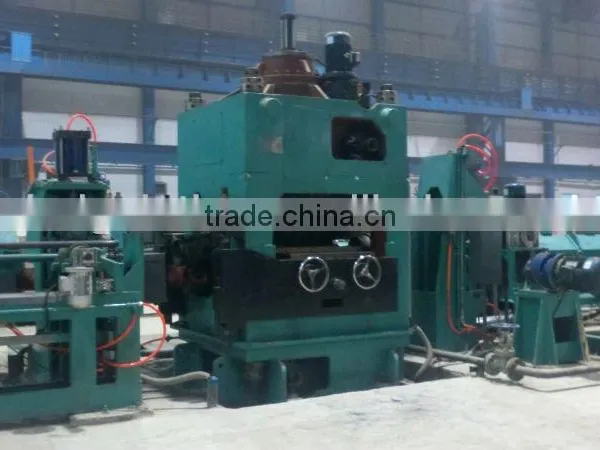

Two-roller straightening machine units with high precision are mainly used for the accurate straightening and calendaring of bars which have been peeled or bright bar after by grinding. Meanwhile, they can also be applied to straighten black bars and precisely-forged round bars. As straightening and calendaring are done simultaneously, the work efficiency is high.
The machine is divided into two types: two-beam and four column model and frame structure model. Two-beam and four column model can eliminate gap mechanically. frame structure model can eliminate gap hydraulically. And it is designed with hydraulic protection system for overload, so that different choices can be made according to different needs.
Practical; stable processing; high speed; better surface quality; high working accuracy. Turning speed of materials can reach more than 12m/min.
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
|
Sky Lyu |
|
haigewmlv |
|
|
+8618663865109 | ||
+8618663865109 | ||
2597918075 | ||
+86186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
