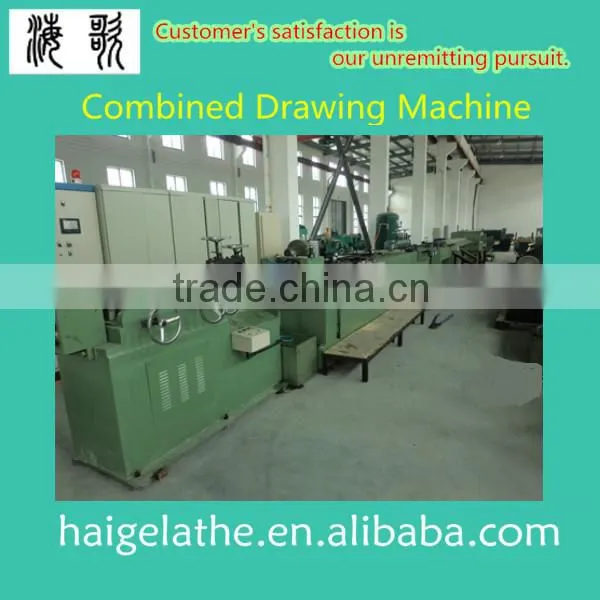

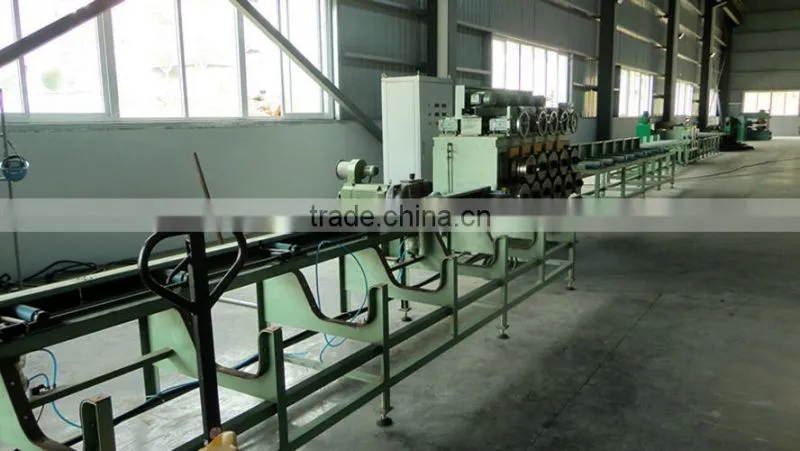

Use: specialize in producing cold-drawn round bars or hexagonal bars from wire rods
Technical Parameters
Material Size after processing: dia 6mm-16mm(carbon steel)
Length of finished bars:(tolerance+/-10mm ) 2m-6m
Max drawing force: 60KN
Drawing speed: (stepless speed)
Maximum 60m/min
Straightness:≤2mm/m After polishing:≤0.5mm/m
Surface roughness: Ra=1.6-0.8
Motor:

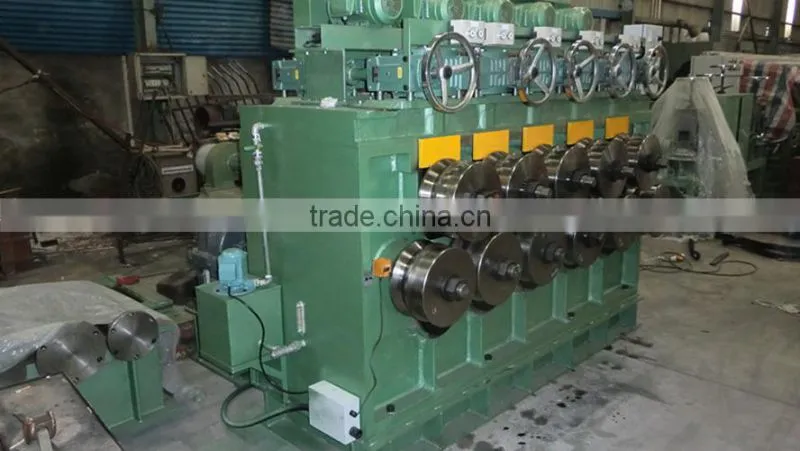

Pre-straightening reduction gears: AC 1.5KW
Lubrication of drawing die:AC 0.15KW
Lubrication of guide rail:AC 0.04KW
Drawing equipment: 75KW
Servo Motor:7.5kw
Pinch roll: 1.1kw
Polishing Machine:22kw
Hydraulic system:5.5kw
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles
Diameters of products manufactured by the machine vary from Φ5mm to Φ600mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
