CNC Piston Rod Polishing machine
Field of Application

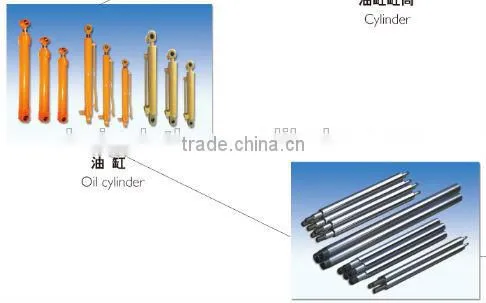

Contruction machinery, colliery hydraulic holder, colliery scaper conveyor, special usage truck, maritime ship, harbour machinery, petroleum machinery, mining machinery, water conservancy machinery etc.

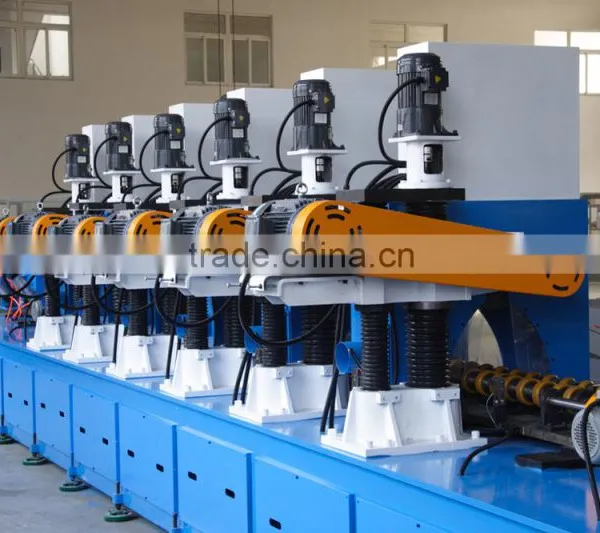

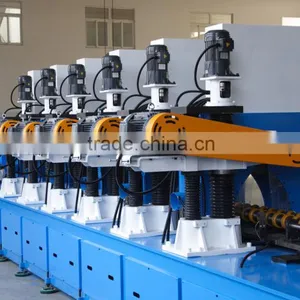

The machine tool mainly applies to polish before and after the plating of piston rods by pass-type drypolishing. The machine tool consists of bed, polishing head, workpiece conveyer, workpiece automatic loading frame, handing equipment for workpiece automatic machine unloading and unloading frame.
Advantages
1.With high degree of automation, high efficiency and high working accuracy.
2.Roughness after polishing meets Ra0.2-0.85.
3.
. Polishing head pressure adjustment can be controlled by electromotion.
4.Electromotion controls idler wheel interval adjustment.

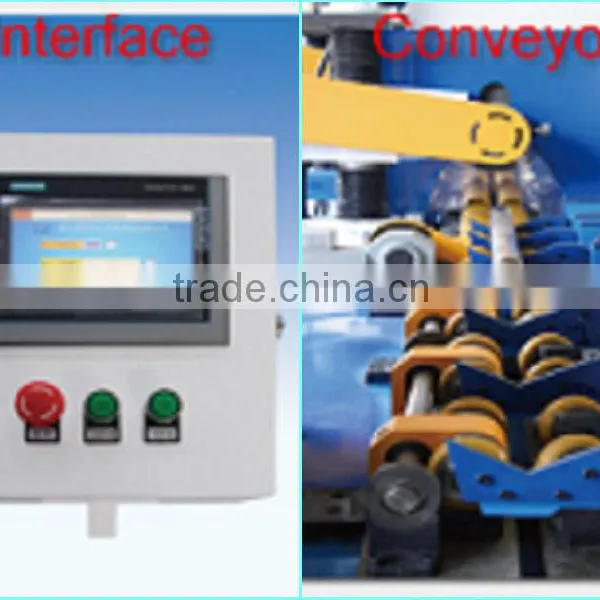

5.Adopt color touch screens as the main man-machine control interface.
6.With manufacturing management.
7.Machine works with interlock protection.
8.Diagnostic function: Machine errors can be shown on the screen so that servicemen can precisely troubleshoot in time.
9.Equip with Siemens 7-inch color touch screen, Siemens transducer and Siemens PLC.
10.Equip with HIWIN ball screws.
11.Optional features: Automatically adjust grinding current. In a certain scope, adopt PID control mode to automatically adjust grinding current to make machining more convenient.
Techinical Parameters
|
Classes |
Unit |
|
|
Machining parameter |
Diameter |
mm |
Φ75- Φ130 |
|
Length |
mm |
750-2500 |
|
|
Specification |
Height |
mm |
2150 |
|
Area |
mm |
2900*11010 |
|
|
Weight |
kg |
15500 |
|
|
Power |
Power supply |
KW |
80 |
|
Main power supply |
AC 380V±10%,50HZ |
||
|
Effective pressure |
Air pressure |
Mpa |
0.6 |
|
Operation |
Working condition |
Automatic |
|
|
The number of polishing heads |
Unit |
6 |
|
Speed of main shaft |
Rpm |
1950 |
|
Transmission speed |
m/min |
0-15 |
|
Vertical stroke of main shaft |
mm |
150 |
|
Vertical speed of main shaft |
mm/min |
105 |
|
Cycle |
min |
1.2-12 |
Product Details

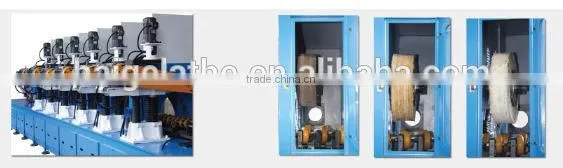

Polishing Head: There are 6 set of polishing heads that the first 4 sets are equipped with multi-leaf wheels with multi-granularity, the fifth set is linen wheels and the sixth set is cotton wheels. Every polishing head is equipped with a polishing ampere meter so that polishing pressure of polishing wheels can be seen visually and is easier to adjust. Polishing wheels electrically control vertical movement by reduction gears and ball screws.

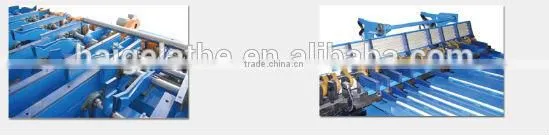

Workpiece automatic loading frame: Through inductive switches, automatically grab piston rod on loading frame one by one to workpiece conveyer.
Handing equipment for workpiece automatic machine unloading: After polishing piston rod, induce whether piston rod is in place through photoelectric sensor. When it is in place, automatically unload on unloading frame which is convenient and safe.
Quality Guarantee
Professional design and manufacturing
pressional welding of lathe bed, entire aging treatment
Purchase main parts all over the world
Excellent 24h fast response service
1. Are you manufacturer or Trading Company?
We are professional manufacturer and we have more than 10 years experience in
this fiel. We have our own factory. Besides, at the end of 2014, we was just estalished a trading company.
2. How many employees are there in your factory?
Approximately 150 persons.
3. Do you have your own R&D team? How many design engineers do you have?
Yes, we have our own R&D team. More than 10 persons.
4. Which countries have your machines been exported to now?
Russia, South Korea, North Korea, Pakistan, India, Vietnam, Taiwan,etc.
For more detailed information, please feel free to contact with me:
