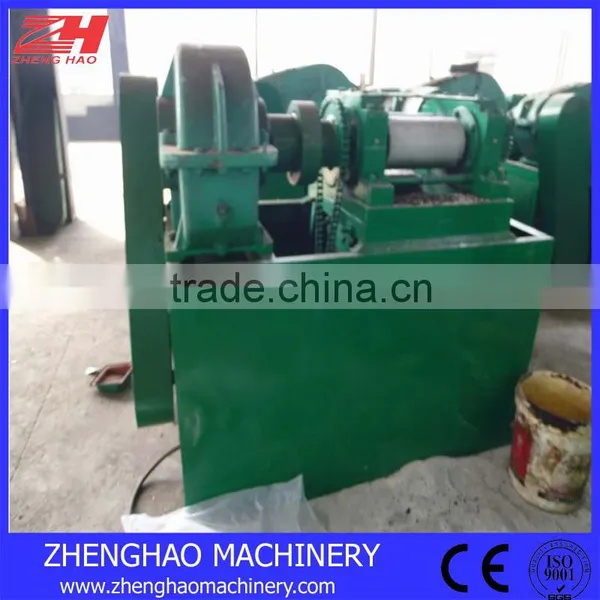

Double roller granulator
1.Instruction
Our company dedicated to providing fertilizer equipment technical services, including annual 1-5 Ton without drying equipment, equipment overall layout design, production and technical guidance, complete supply, transfer trial operation of train services.
Currently, after many years of research set fertilizer granulator equipment manufacturing experience, and use
High-quality anti-corrosion, wear-resistant materials, carefully producing, With advantages of beautiful appearance, simple operation, low energy consumption,long life, high into the grain, etc., It is more advanced domestic fertilizer granulation equipment in our country, has been sold all over the world. This series machine is suitable for a wide range of granulation, characterized as follows:
l No drying technology, normal temperature granulation, one molding, less investment, quick effect, good economic benefits.
l Small power reliable operation, no waste discharge, stable operation, easy maintenance, flow process rational layout, advanced technology, low production costs.
l Wide adaptability of raw materials can be used for fertilizer, pharmaceuticals, chemicals, feed, coal charcoal, metallurgy and other raw materials granulation, and can produce a variety of concentrations, many types of (including organic fertilizer, inorganic fertilizer, bio-fertilizer, magnetic fertilizer) fertilizer.
l Especially rare earths, ammonium bicarbonate, ammonium sulfate fertilizer granulation system, fills in the home gaps, ranking the leading domestic level, the national environmental protection applicable technology promotion items projects.
ing principle
Extrusion forms have forward and side discharge.Batched material should be pointed into the roll extrusion granulator from the top of it. The tank is with a vertical screw rod, through the rotation of the auger, the material will be forced to send to the double rolls to extrusion.Two rolls relative rotation, so that the material brought into a cake.Then crushed by the rotating blade row into particles.The particles and some powdered materials into the rotary vibration sieve. Particles passing to the outside by being. The powdered material through the sieve will be returned to positions for the second material roll, extrusion pressure can be controlled according to the needs of granule by the hydraulic system. By changing the form of roll grooved surface can be obtained sheet, strip, flat spherical and other materials.
3.Technical parameter
Model |
DZJ-I 1.0 |
DZJ-I 2.0 |
DZJ-I 3.0 |
DZJ-I 4.0 |
DZJ-II 1.0 |
DZJ-II 2.0 |
Productivity (t/h) |
1-1.5 |
1.5-2.5 |
2.5-3.5 |
3.5-4.5 |
1-2 |
1.5-2.5 |
Power (KW) |
15 |
18.5 |
30 |
45 |
15 |
18.5 |
Compression roller |
dia150*220 |
dia150*300 |
dia186*300 |
dia300*300 |
dia150*220 |
dia150*300 |
Feed size |
<=0.5mm |
<=0.5mm |
<=0.5mm |
<=0.5mm |
<=0.5mm |
<=0.5mm |
Production specification |
dia2.5-dia10 |
dia2.5-dia10 |
dia2.5-dia20 |
dia2.5-dia30 |
dia2.5-dia10 |
dia2.5-dia20 |
Reducer model |
ZQH350 |
ZQH400 |
ZQH400 |
ZQH500 |
dedicated |
dedicated |
Material moisture |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |
2%-5% |

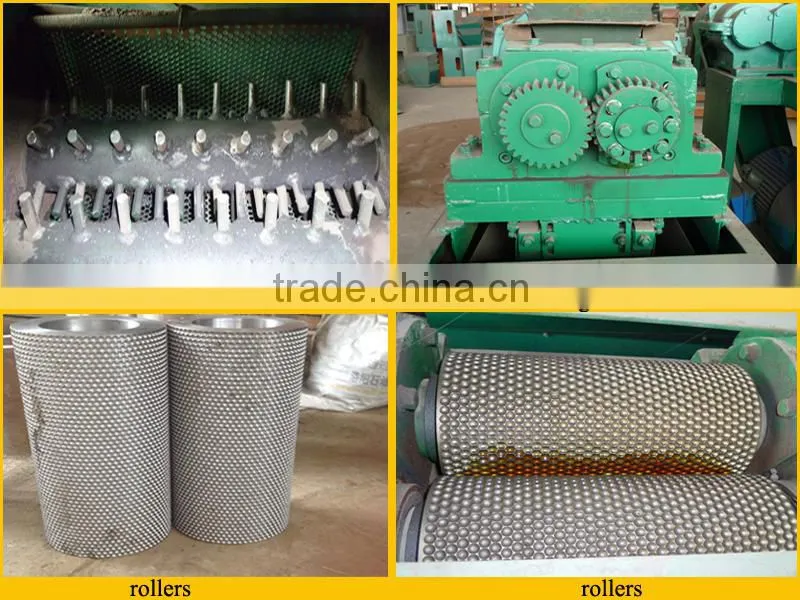

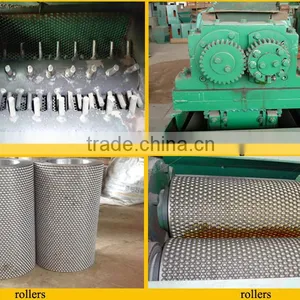

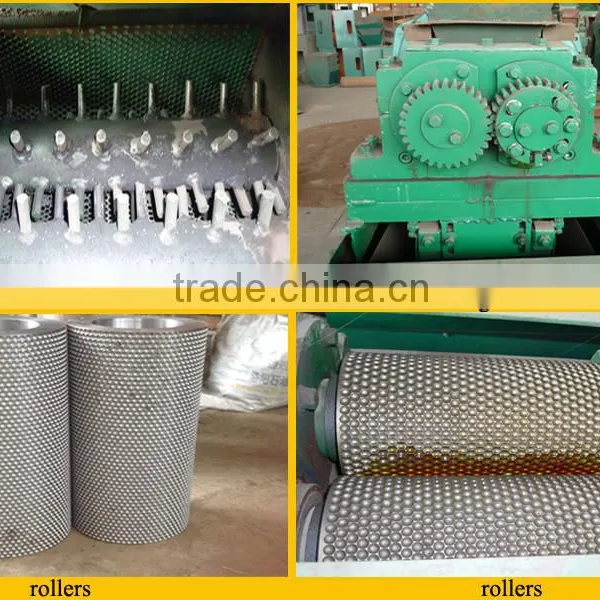

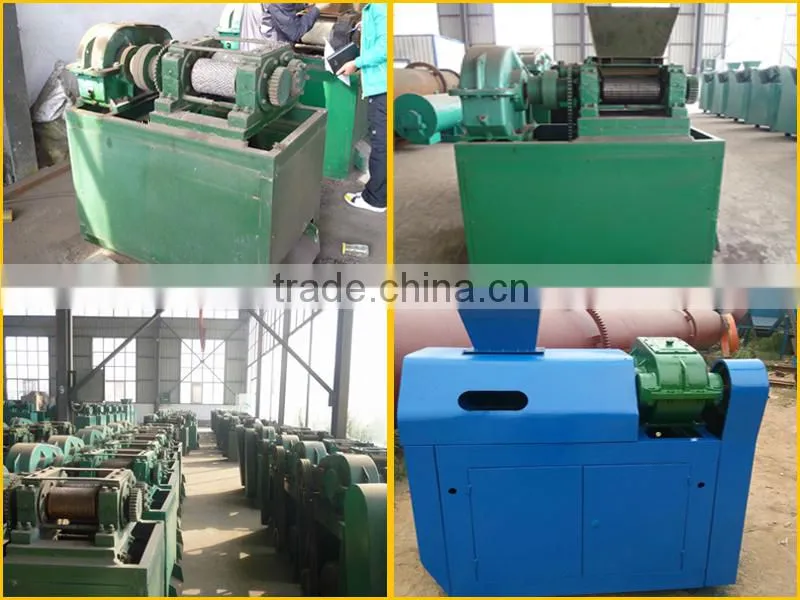

4.Pictures
5.Conditions:
Payment: T/T, 30% deposit as advanced payment, the balanced paid before the delivery or paid by irrevocable L/C at sight.
Delivery time : 7-15 days after receive the advanced payment.
Packing: single machine with wooden box, product line with nude packing in containers.
MOQ:1set
