Respect Customer Focus Quality

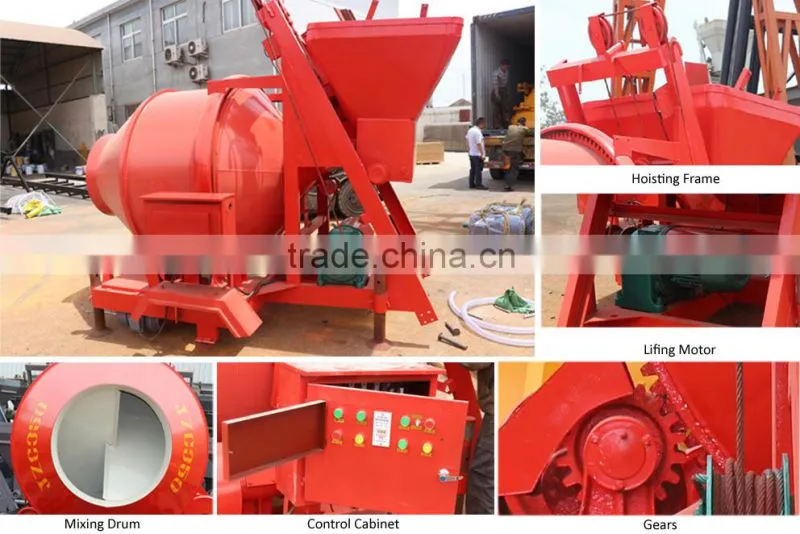

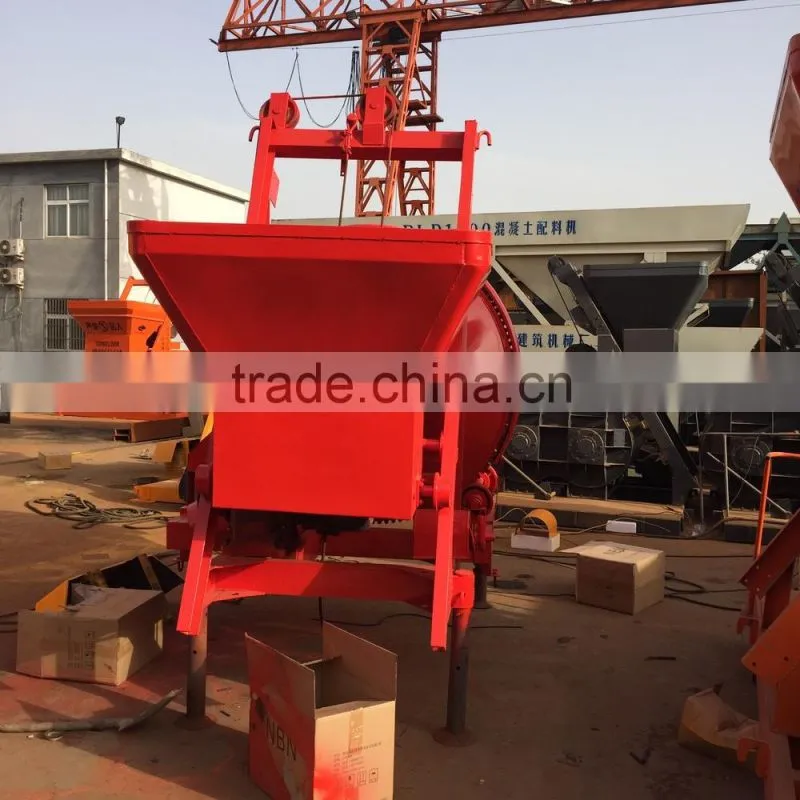

JZC Series concerete mixer

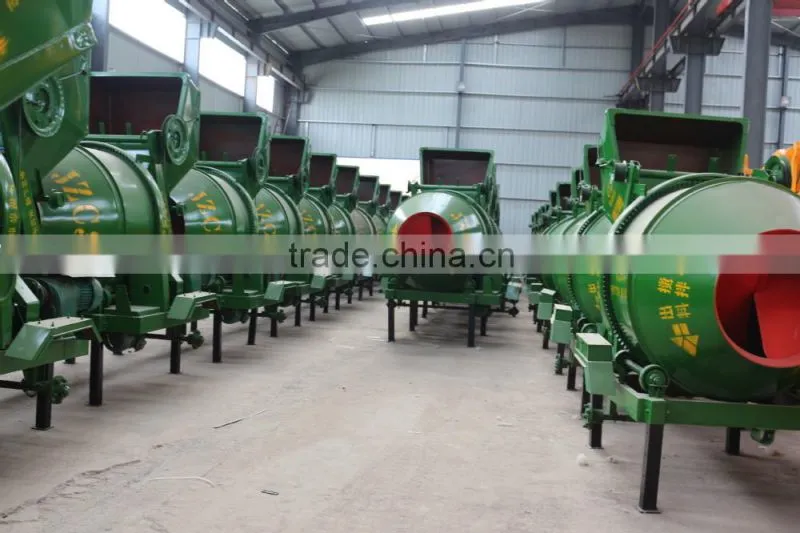

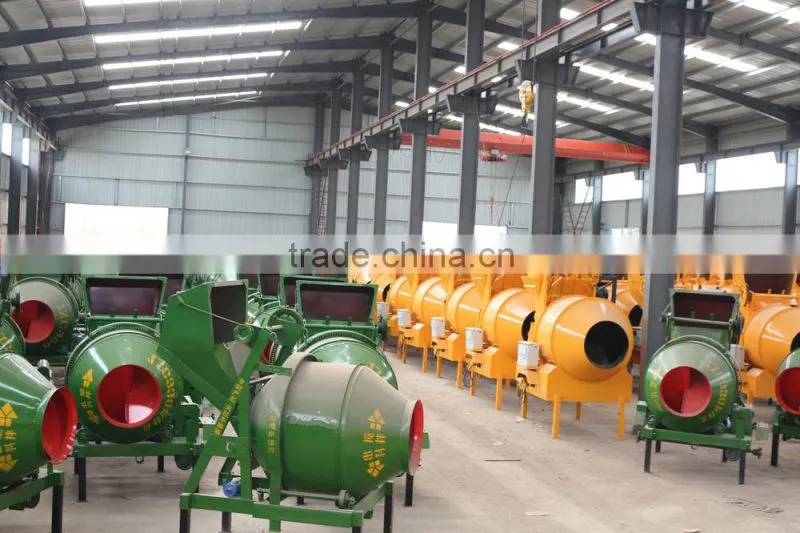

Factory Photo
JZC series concrete mixer main technical parameters
Model |
JZC250 |
JZC350 |
JZC500 |
Discharging Volume |
250L |
350L |
500L |
Charging Volume |
400L |
560L |
800L |
Productivity |
6~8m3/h |
10~14m3/h |
18~20m3/h |
Drum-rotating speed |
14r/min |
14r/min |
13r/min |
Max.Aggregate Size |
60/80mm |
60/80mm |
60/80mm |
Accuracy of Water Supply |
Errors<=2% |
Errors<=2% |
Errors<=2% |
Mixing Motor |
4kw |
5.5kw |
11kw |
Water Pump Motor |
0.55kw |
0.75kw |
0.75kw |
Tyre Specification |
500-16 |
600-16 |
750-16 |
Max.Towing Speed |
20km/h |
20km/h |
20km/h |
Overall Dimension |
2260*1990*2750mm |
2766*2140*2900mm |
5226*2200*5460mm |
Weight |
1160kg |
1980kg |
3100kg |
Introduction
This series concrete mixer is to mix for converse and discharge for reverse,

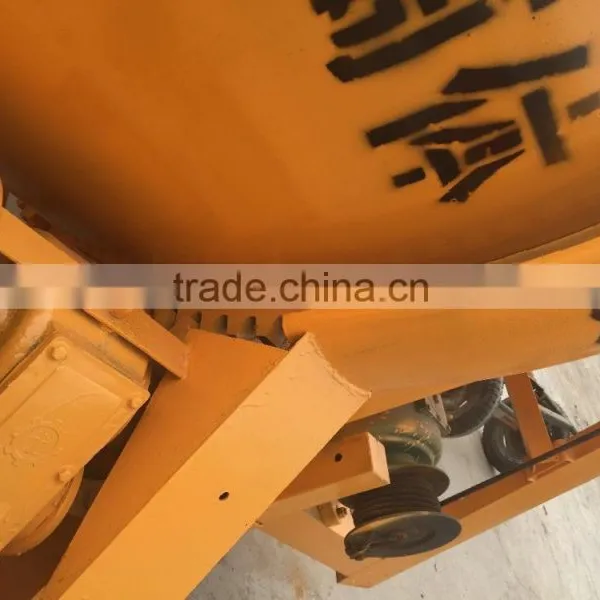

which may mix plasticity and semirigid concrete.as a gravity type of double-conic reversing drum Mortar Mixer , the drum transmits by gear of friction wheel. the drum rotates clockwise during mixing and anticlockwise during discharging.the mixer can mix plasticity and damp half-dry concrete. It is usually used on ordinary construction sites,roads,bridges projects and concrete prefabricated parts factories.
This type of mixer has rational structure,and has the advantages of high production efficiency,excellent mixing quality,artistic outlook,light weight and convenience moving.

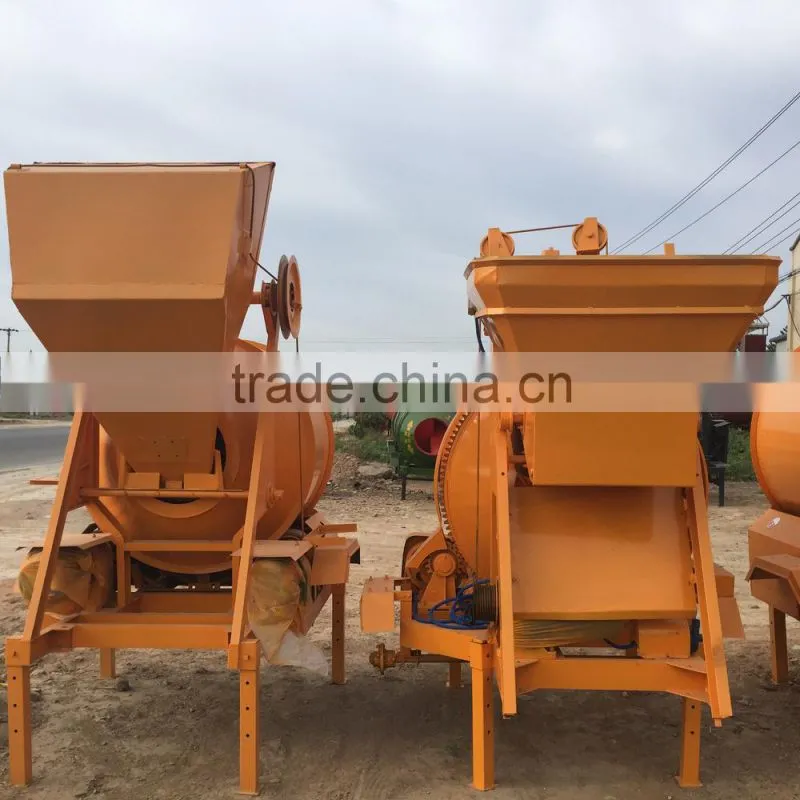

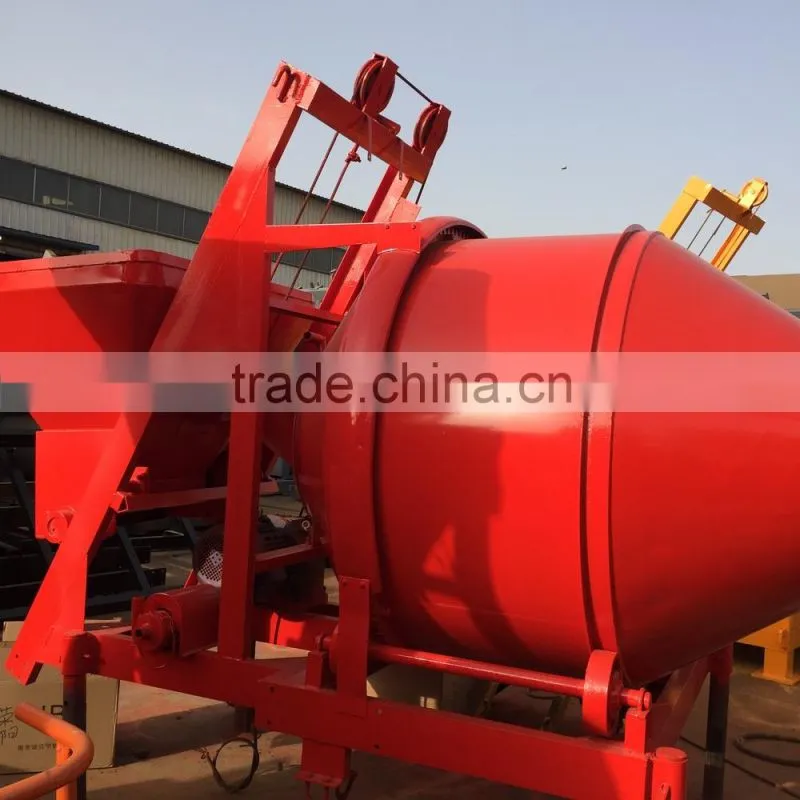

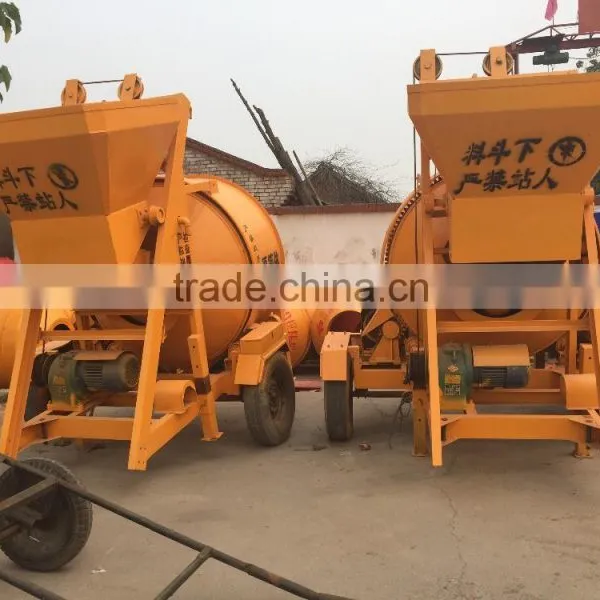

Two types of hoisting Frame

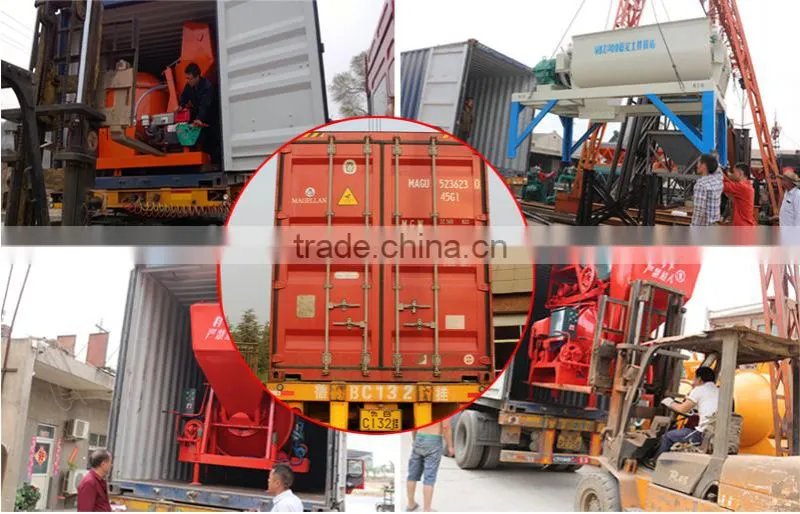

Package and shippment
Payment terms: 30% of total price shall be paid by T/T as down payment;
70% balance payment should be paid by T/T before delivery.
Delivery time:10-15 working days after receiving down payment
