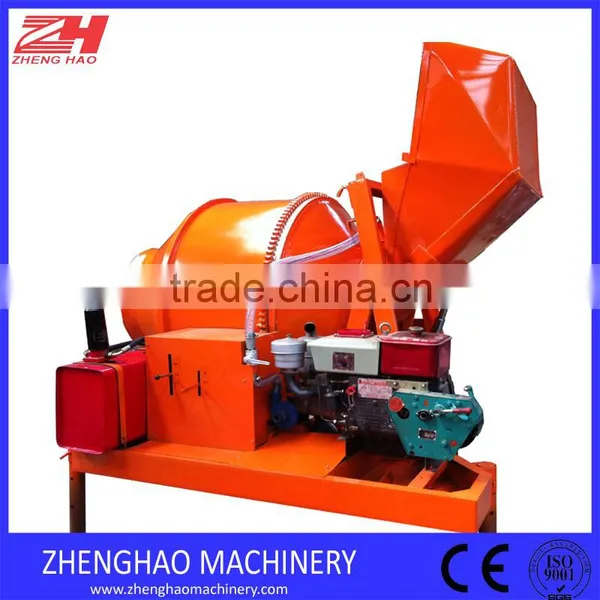

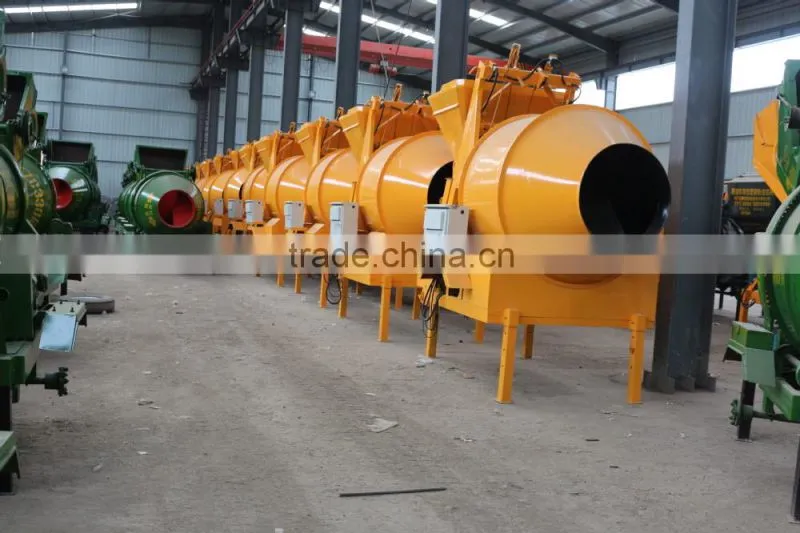

JZR portable concrete mixer
JZR series mobile (protable) hydraulic diesel concrete mixer (Manufacturer Made In China) is of bigger capacity, hydraulic self-falling type. Hot sale to Africa, south africa, india, australia with competitive price and superior quality. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.The mixer is widely used in building site, road and bridge project, and many other construction sites.

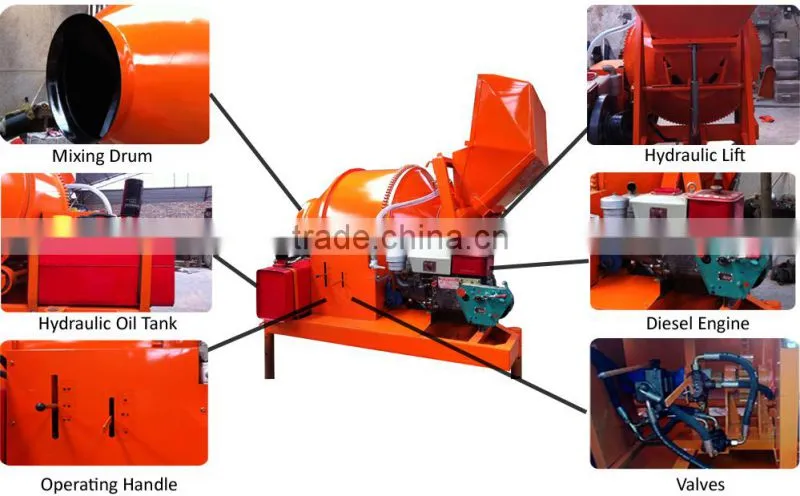

Features of Diesel Portable Concrete Mixer

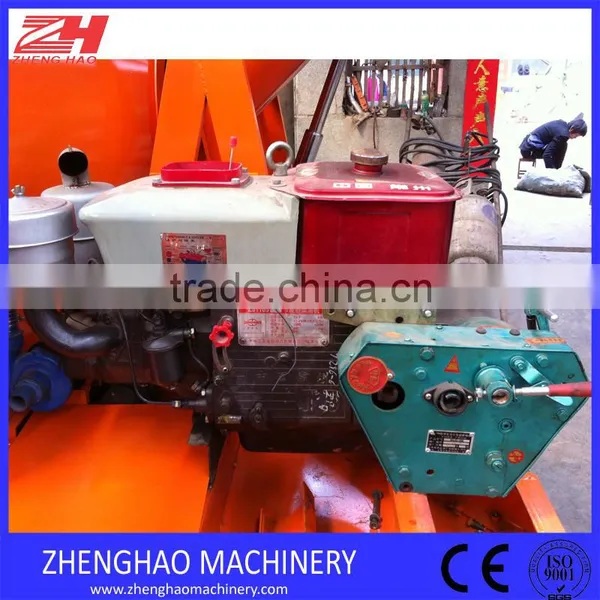

1. Power source: diesel engine, no demands to electricity.
2. Easily movable from one place to another.
3. Compact structure, higher reliability, mixing evenly.
4. Adding a water pump for water circulation between water tank and water radiator,
keep the water temperature to be stable.
Removing the air sucking point from the back to the front, reduce to suck the dust.
JZR hydraulic diesel concrete mixer main technical parameters:
Model |
JZR250 |
JZR350 |
JZR500 |
Discharging Volume |
250L |
350L |
500L |
Charging Volume |
400L |
560L |
750L |
Water Tank Volume |
110L |
110L |
140L |
Productivity |
6~10m3/h |
10~14m3/h |
18~22m3/h |
Mixing Motor Power |
12HP |
18HP |
20HP |
Drum-rotating Speed |
14r/min |
14r/min |
14r/min |
Max. Towing Speed |
20km/h |
20km/h |
20km/h |
Overall Dimension |
2250*1900*2750mm |
3100*2320*3070mm |
3750*2240*3800mm |
Total Weight |
1300kg |
1850kg |
2040kg |
1.How long do you warranty your machines?
100% brand new when leaving the factory. The seller shall guarantee that the commodity for 1 year, excluding the wearing parts, and the seller will offer the buyer the wearing parts all the time with favorable price.
2. What payment terms will you accept?
T/T. L/C at sight is both accpetable.
3.How about delivery time?
Generally 7-15 days, the machines will be done produced, and maybe a little longer if busy in the factory.
4.How about your after-sale service?
24 hours technical support and solution and free spare parts during warranty.
