Two Rollers Straightening Machine for Round Brass Copper Bar
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, copper brass round bar straightener
Use:
Other, straightening for brass copper round bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao seaport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China JY80Z Two Rollers Straightening Machine for Brass Round Steel BarNegotiableMOQ: 1 Set -
JY80Z Diameter 20mm to 80mm Long Brass Bar Straightening MachineNegotiableMOQ: 1 Set
-
Steel Machinery Equipment for Peeling and StraighteningNegotiableMOQ: 1 Set
-
WXC160S and Other Series Steel Pipe Peeling Coil Handling Equipment on SaleNegotiableMOQ: 1 Set
-
Low Price ! China Peeler Machines for Steel Bar ,cnc Lathe MachineUS$ 237,500 - 270,000MOQ: 1 Set
Condition
New
Type
Other, copper brass round bar straightener
Use
Other, straightening for brass copper round bar
Place of Origin
Shandong, China
Brand Name
haige
Model Number
JY100Z
Voltage
170KW
Certification
ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

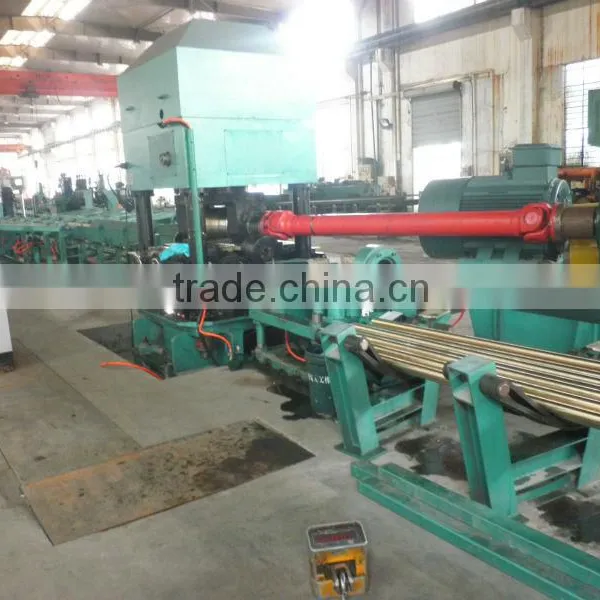

JY100Z two rollers straightening machine for round brass copper bar
Series JY straightening machine, this machine is mainly used for precision straightening and calendering for the bar after peeling or grinding and rough pre-straightening for the black bar.
Due to calendering and straightening can be completed at the same time, so that the working efficiency is high.
The machine adopts sepcial curve between upper and lower concave and convex two straightening rolls to realize calendering and straightening at the same time.
| Main Technical Parameters | |||||
| Specification | JY100Z | ||||
| Requirements | Diameter Range(mm) | 25≤dia≤100 | |||
| Length(mm) | ≥3000 | ||||
| Surface Hardness | ≤HB380(≤HRC42) | ||||
| Yield Strength(Mpa) | σb≤450 | ||||
| Straightness(mm/m) | ≤3 | ||||
| Diameter Tolerance | ≤IT10 | ||||
| Circular Degree | dia≤50 | ≤50% of diameter tolerance | |||
| 50<dia≤80 | ≤65% of diameter tolerance | ||||
| dia>80 | ≤70% of diameter tolerance | ||||
| Surface Roughness(Ra) | 3.2μm~6.3μm | ||||
| After Straightening |
Straightness(mm/m) | ≤0.40 | |||
| Surface Roughness(Ra) | ≤0.8μm | ||||
| Diameter Tolerance | ≤IT8 | ||||
| Straightening speed (m/min) | 2~12 | ||||
| Total Capacity(kw) | 170 | ||||
| Outline Dimension(m) | 8.1 X3.1 X3.6 | ||||
