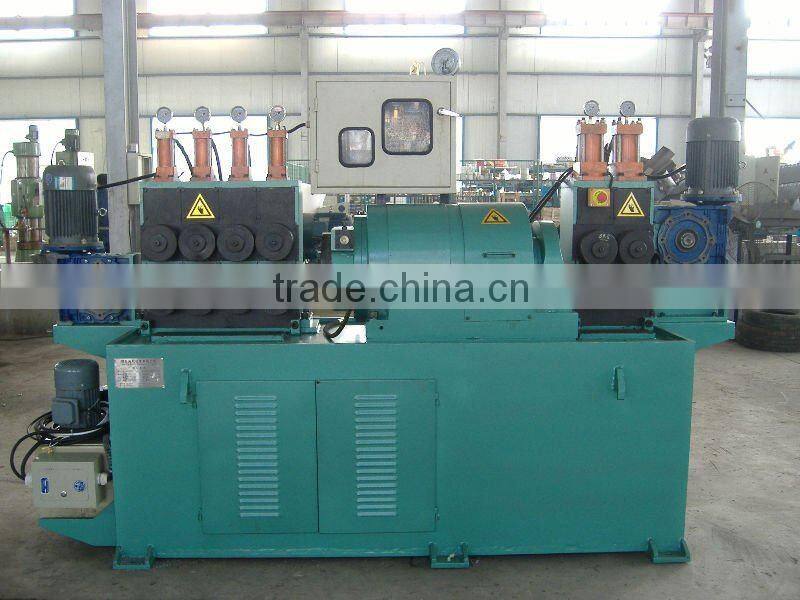

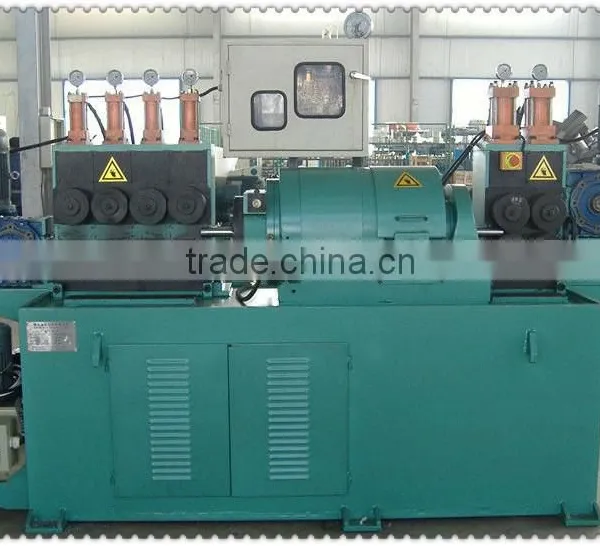

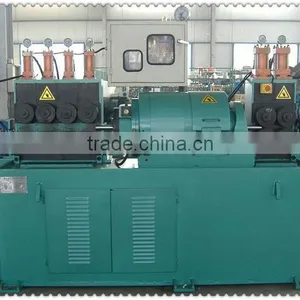

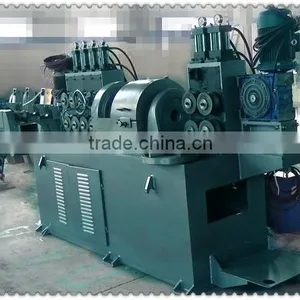

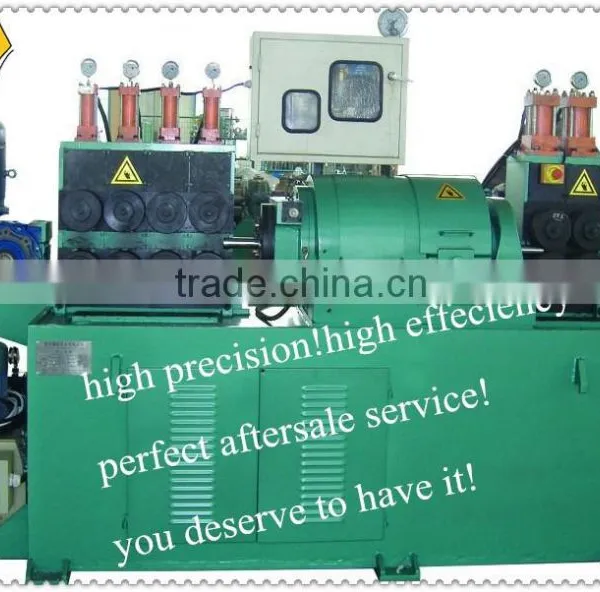

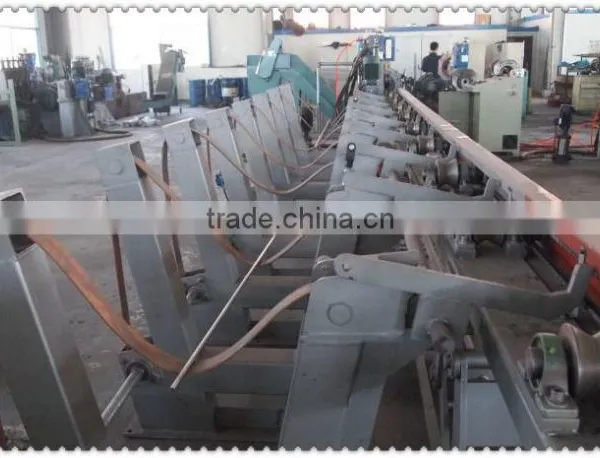

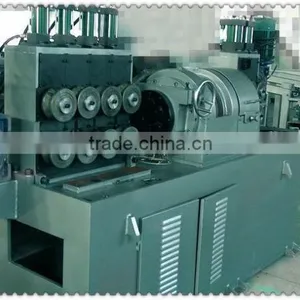

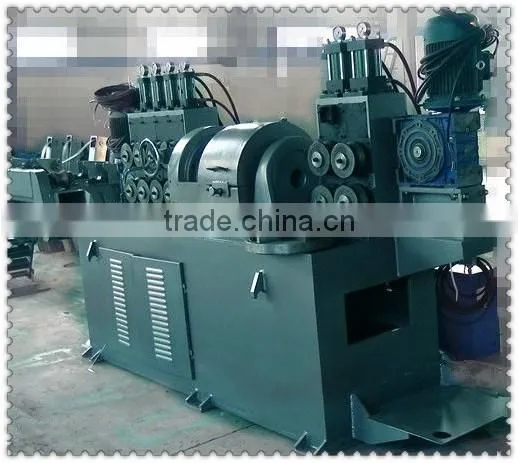

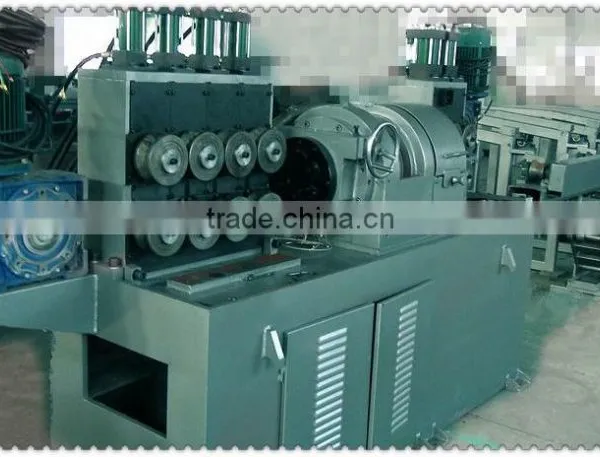

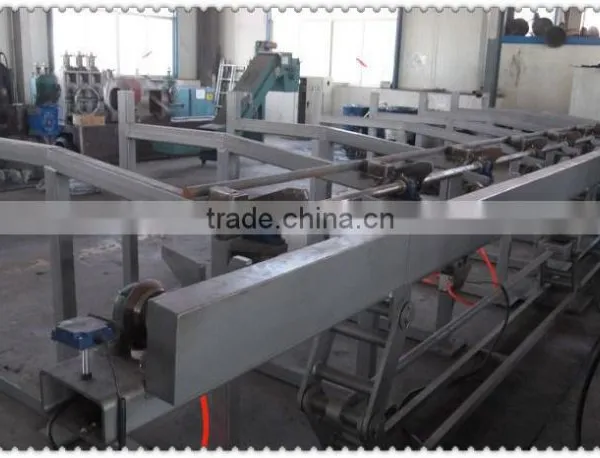

Steel Machinery Equipment for Peeling and Straightening

Specification

WXC60B

RAW      MATERIALS

Diameter Range(mm)

Φ14~Φ63

Raw Material Length(mm)

≥2200

Tensile Strength (M pa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter Tolerance

According to GB 702-88 second group

Roundness

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25~50μm

FINISHED   GOODS

Diameter Range

Φ12~Φ60

Unilateral Cutting Depth (mm)

0.25~1.50

Diameter Tolerance

≤IT9 (standard tolerance grade)

Surface Roughness(Ra)

≤6.3μm

Roundness

≤0.03mm

Feeding Cutting Speed(m/min)

1.0-7.0(for continuous chips and high strength and hardness should reduce the speed)

Cutter Head Rotational Speed(rpm)

440~1300

Main Machine Motor Power(KW)

45( Four Poles)

Auxiliary Machine Motor Power(KW)

4.0 X 2 ( Four Poles )

Main Machine Outline Dimensions

(Length*Width*Height) m

3.0m X 2.5m X 2.0m ( for your reference)

Full Set Machine Outline Dimensions

(including auxiliary machine)

(Length*Width*Height) m

13.0m X 2.5m X 2.4m ( for your reference)

Main Machine Weight (including auxiliary weight) (T)

5.0 ( 8.0 ) ( for your reference)

Total Capacity(KW)

55

Compressed Air Source

(user prepare by themselves)

0.5-0.8Mpa,1.8m³/min,0.8m³ gasholder,two-stage oil-water separator and compressed air freezing drier
