Low Price ! China Peeler Machines for Steel Bar ,cnc Lathe Machine

Product Description

1.Series WXC Centerless lathe ,which includes semi-automatic hydraulic and CNC type, is a high-efficiency lathe which is specialized in processing and finishing the rough surface of slender shaft.

During processing ,the bar doesn't rotate.The cutter head rotate the tools to peel the bar surface at

a high speed.Main machine consists of the bed ,main bearing, air/oil lubrication system, front-clamping pinch feeding and rea-clamping extracting,front guide and middle-rear guide system ,main driving system .

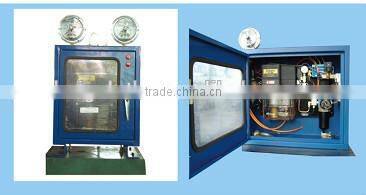

2.Air/Oil lubricationi system could lubricate

and protect the mainshaft bearing .It is

composed of pump,oil and air distribution

block and air processing components.

3.Cutting liquid circulation cooling system consist of recycle water pump, pipeline,nozzle.

4.High pressure water pump takes the cooled

cutting liquid from reservoir through pipeline,

and transport it to the nozzle of cutter head ,t

hen spray it on the tools and chips. By this way ,

it can take most cutting heat away and enter into

chip conveyor month .

5.Chip conveyor is provided by our supplier.

The scraps is taken away through the chain

plate and driving belt and recyled.

6.Hydraulic system iscomposed of pump

set of motor, controllingvalves,hydraulic

oil tank and pipeline.  The cylinders in

feeding condition can clamp and loosen

the bar.

7.Electrical system includes power supply

system and control system. By the integration

of one power distribution cabinet and one button

station ,all electrical parts such as transimission

system ,feeding system ,cooling system ,hydraulic

system,chip conveyorand auxiliary machine could

be controlled .

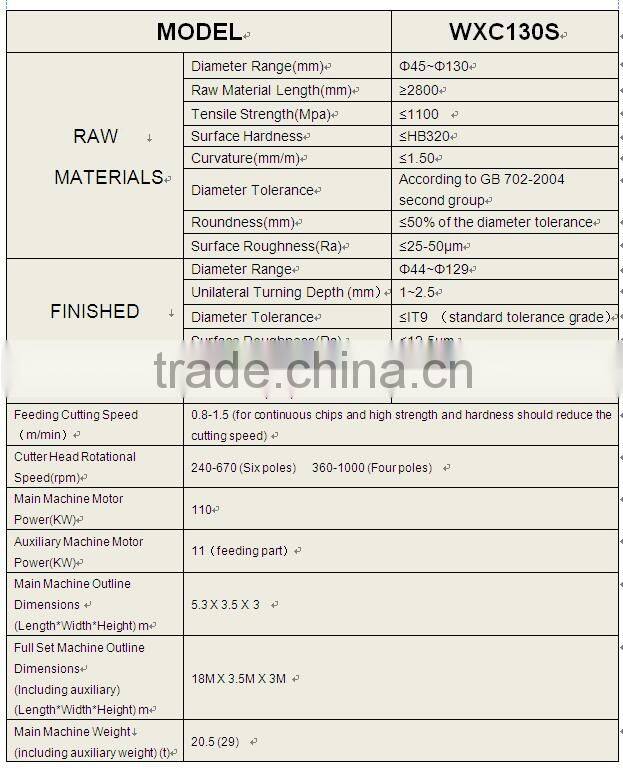

Technical parameters:

Packing details:

 Certificate:

Contact details:

FOB ,CIF or CNF,any request,please contact with us
