2016 Hot Selling HX-GAP Full Automatic corrugated box making match box making machine
- 30 Set / Sets per Month
- Ningbo port
- T/T Credit Card
- Non-woven PUR Hot Melt Laminating Machine for Fabric/film/garment/sofa/mattress/underwear
- Automatic PUR Hot Melt Laminating Machine for medical fabric laminating machine
- PUR hot melt Laminating Machine for automotive interior parts lamination
- PUR hot melt laminating machine for Nonwoven/Film/foam/Fabric/EVA/PU/PP
- Automatic Hot Melt Coating Machine for medical fabric laminating machine
- Fabric/film/non-woven Hot Melt Coating Machine for garment/sofa/mattress/underwear
Product Details
Condition: | New | Application: | Apparel, Commodity, Textiles | Packaging Type: | Bags, Cans, Cartons, Case |
Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 3P 380V50HZ | Power: | 7-12.5KW | Place of Origin: | Zhejiang, China |
Brand Name: | QH | Model Number: | 780GAP,1050GAP,1200GAP,1450GAP | Dimension(L*W*H): | 16*1.75*1.45m |
Weight: | 7-10T | Certification: | CE Certificate, ISO 9000 ,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.
Quality and the after sell service is our aim: we do not only sell the products but solutions.We believe that you will be satisfied with both our products and service.

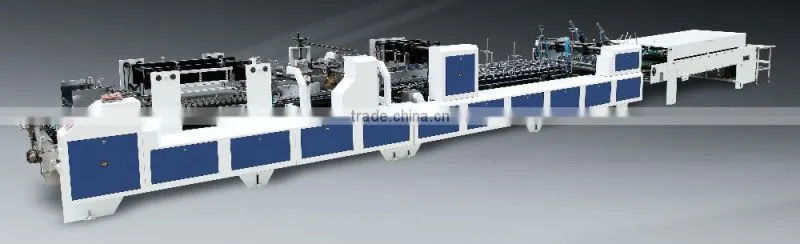

Series GAP match box making machine is dual purpose machine, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt mechanic continuously variable, stable and easy to control and operate. (In case of any special function required, we can design according to the customer's intension).
Technical Speccification for match box making machine :
Model
| HX-780GAP | HX-1050GAP | HX-1200GAP | HX-1450GAP |
Paper Material | Cardboard250-700gsm, A/B/E corrugated | |||
Max. Liner speed | 220m/min | |||
Feeding way | Automatically and continuously feeding | |||
Way of folding in reverse | Fold 1 and fold 3 are 180° | |||
Glue | Water-base cold glue | |||
Power Supply | 3P380V50HZ | |||
Main motor power | 5.5kw | 7.5kw | 7.5kw | 11kw |
Total power | 7kw | 7kw | 9kw | 12.5w |
Weight | 7T | 8T | 8.5T | 10T |
Overall dimension | 16*1.5*1.45m | 16*1.75*1.45m | 16*1.9*1.45m | 16*2.15*1.45m |
Details of match box making machine :
Feeding section:
1.auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;
2. independent high-speed feeding bell can be easily adjusted;
3. independent vibrating motor can improve feeding greatly;
4. feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
Paper Correction:
Auto paper correction device,to correct the deflection or slanting of feeding, to ensure the correct paper transportation
Bottom folding:
1.upper gluing bucket can adjusted separately up and down,right and left,to ensure the gluing quality
2.bottom gluing bucket can be adjusted right and left,set gluing amount,east to assemble,disassemble and clean
3.The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
4.Bottom-folding speed is 50-400 pcs per min, stable and reliable.
Folding:
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Full pressing
1. Pressure can be adjusted conveniently, reliable, ensure good quality of gluing
2. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack
Transmission
1.Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing
2.Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.
The match box making machine is especially designed for various cardboards, corrugated-paper packing, adapts correction function, and make corrugated boxes perfectly meet the requirements of auto packing.
1. Main wall plate adopt international standard 20mm thick iron plate, hot and cold tempered treatment;
2. Main drive adopt 6 corner special 45# steel;
3. Main motor adopt TaiWan DongYuan motor;
4. Converter adopt Schneider France;
5. Synchronous belt adopt Gates USA;
6. Bearing adopt NSK Japan;
7. Flat belt adopt NITTA Japan;
8. Transmission belt adopt FABREEKA Netherland;
9. Main electrical parts adopt Schneider.
The good should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone. 24 hours hot line.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
match box making machine
match box making machine
match box making machine
