Help CenterDOT-F3 Furniture Spraying Room/baking Box/painting Booth
Related Products
-
DOT-5F-3 Furniture Spraying Booth /baking House/painting RoomUS$ 11295.00 - 11295.00MOQ: 1 Unit -
DOT-8F-2 Furniture Spraying Booth/baking Room/ Painting RoomUS$ 9853.00 - 9853.00MOQ: 1 Unit
-
DOT-2F3 Furniture Spraying Room/baking Box/painting BoothUS$ 11295.00 - 11295.00MOQ: 1 Unit
-
DOT-1F3 Furniture Spraying Room/baking Box/painting BoothUS$ 11295.00 - 11295.00MOQ: 1 Unit
-
DOT-3F-2 Furniture Spraying Booth/baking House/painting RoomUS$ 9853.00 - 9853.00MOQ: 1 Unit
Outside Dimension(m): 24×5×3(L×W×H)
Painting Room Dimension(m): 4.9×4.9(L×W)
Drying Room Dimension(m): 18.95×4.9(L×W)
Incoming Door Dimension(mm): 1900×2000(L×W)
Delivery Door Dimension(mm): 1900×2000(L×W)
Total Power: 45.08KW

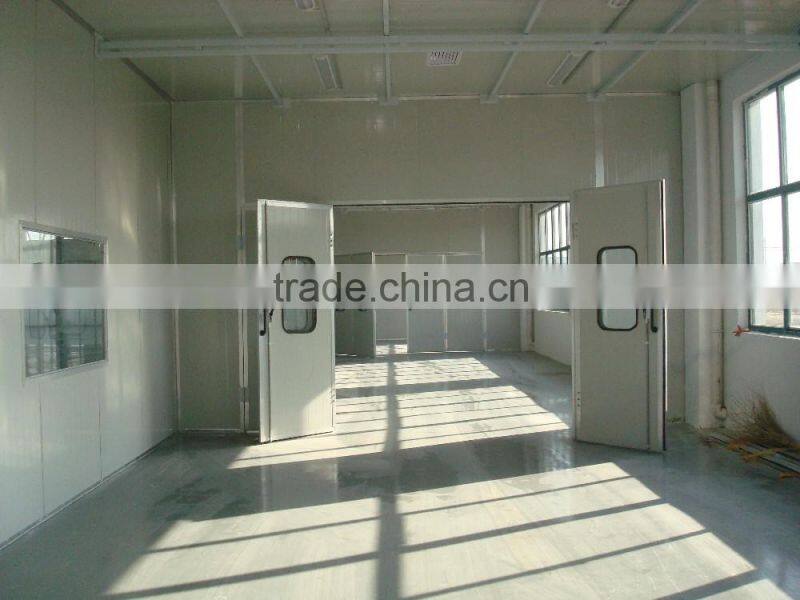

Cabin System:

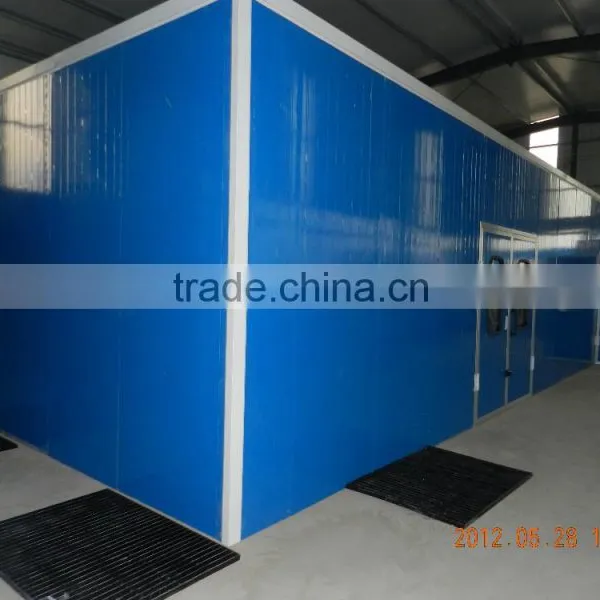

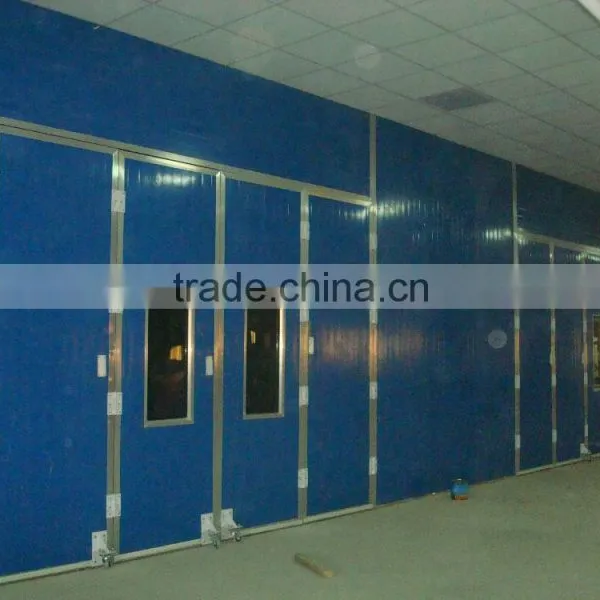

Wall panel and ceiling panel: EPS colorful Steel Skin Boards, tongue and groove construction, thickness: 50mm , compound construction, aluminum-alloy Frame. Anti-flame and heat-Insulation. Basement in front of water curtain: 30mm*4mm flat iron grilles, 12#channel steel.
Light System:
Painting room: 6units×3 pieces=18pieces×36W Philips lamp; Baking room: 16pieces×36W Philips lamp, anti-explosive. Illuminance exceeding 450LUX
Air Circulation System:

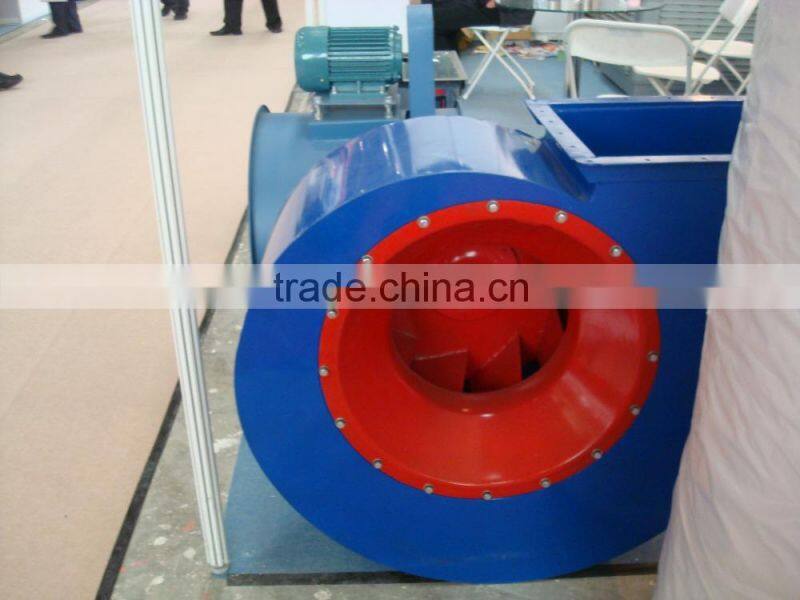

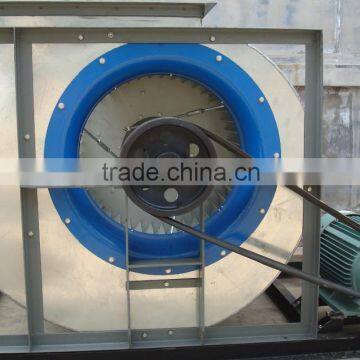

Upper intake air. Inlet fan: 2×4KW double-intake centrifugal fans, air capacity: 24000m³/h. Outlet fan: optional.
Heating System:
Infrared Heating Tubes: 36pieces ×1 KW carbon fiber far-infrared heater, anti-explosion.
Purification System:

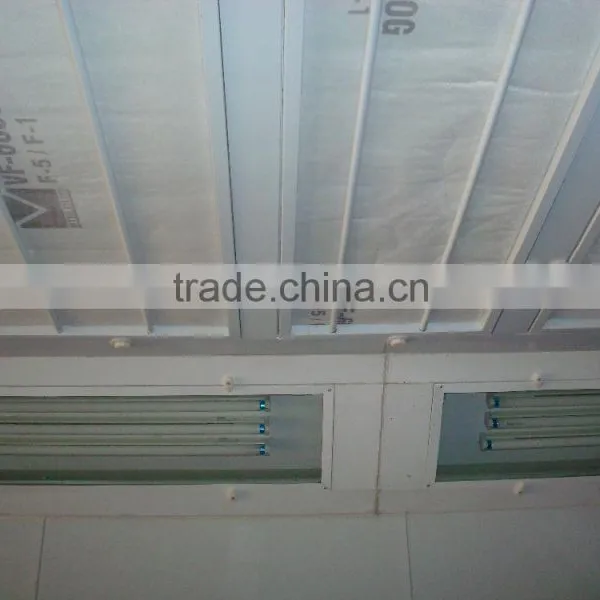

Dual filtering structure. The primary filter can capture granules larger than 10µm. Ceiling filter captures granules bigger than 4µm. Its filter rate reaches 98%. TSP ≤1.4mg/m3;
Controlling System:

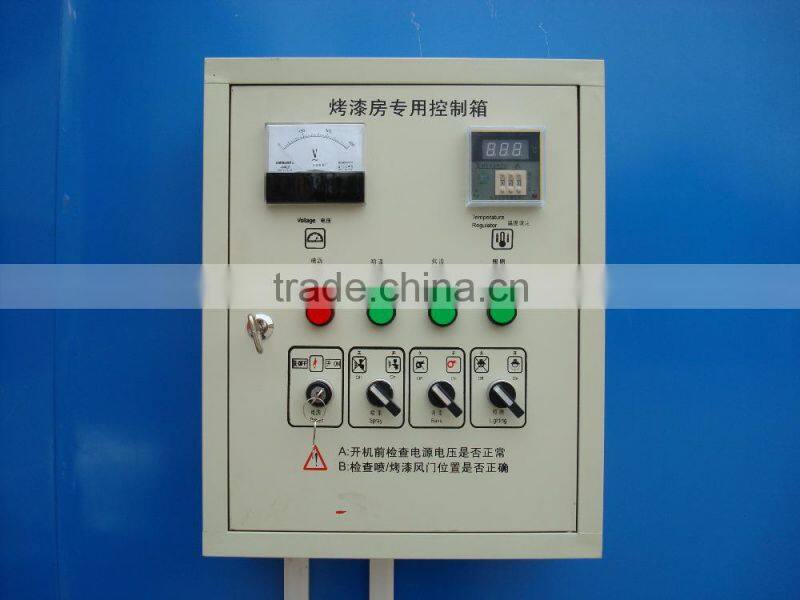

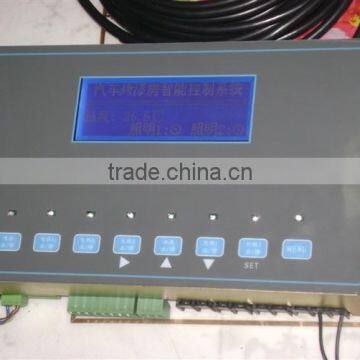

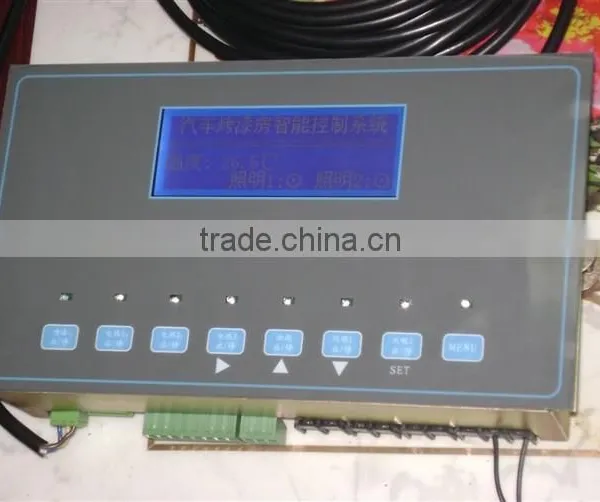

Electric Controlling System: lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply

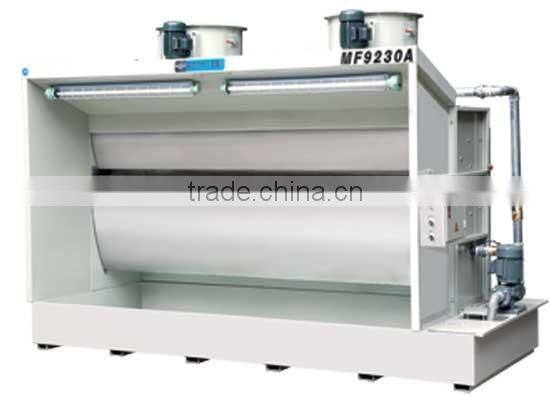

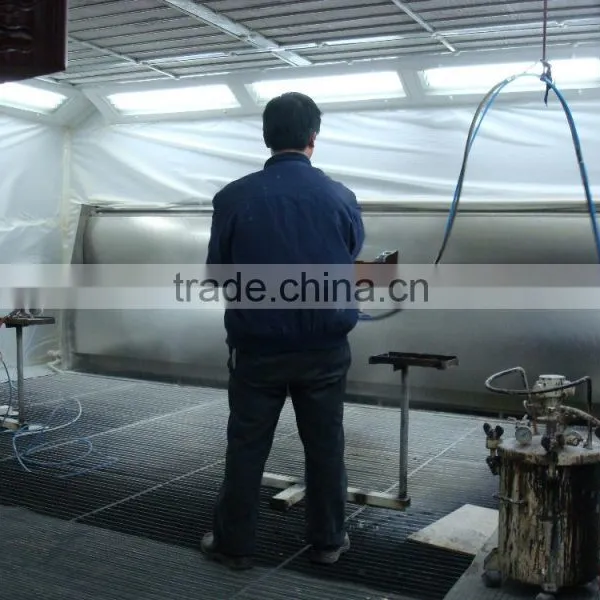

Environmental System:

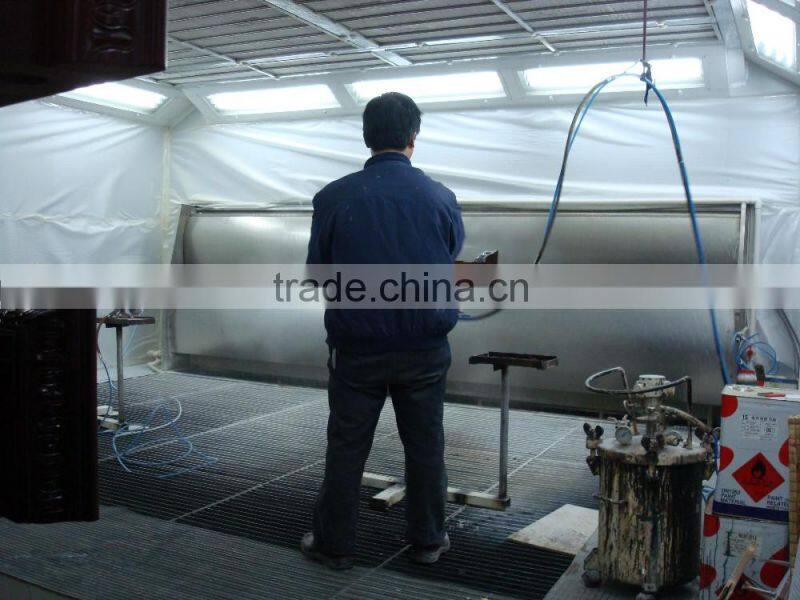

Water curtain filtering. Dimension:3000×400×1500mm(L×W×H),stainless steel. Water pump: Brand:Lailibao, capacity: 7m³/h, lift:18m, rotate speed: 2860rotate/m power: 750W 380V/50HZ

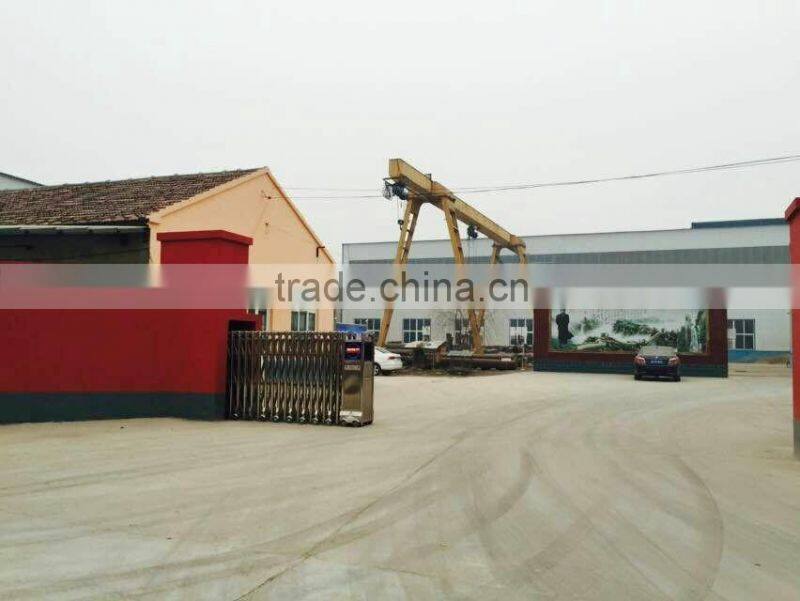

Jinan D Oriental Technology Co.,Ltd is a China based corporation, with integration of development, designation, manufacturing,marketing and services. With more than a decade developing, we positing on painting equipment, automatic production line and automobile fix and maintenance industries.
1. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.
2. What’s the Min order to your company?
1 set.The sample order, if we have stocks, we will send out the products within 1 week.
3. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.
4. What kind of measuring system do you have?
We have the two dimension measuring,three dimension measuring and CHEIF electric measuring system for your choice.
5.What’s the advantage of your company?
We have exported our lifts and service to more than 100 countries. We have specialized team work for you, you will get our feedback within 24 hours./ Germany and Italian advanced technology.
Jinan D Oriental Technology Co.,Ltd
Add: Xinzhai Industrial Part, zhangqiu, Jinan, Shandong
Tel: 86-0531-88984033
Fax: 86-0531-88984033
Any needs, contact with us freely.
