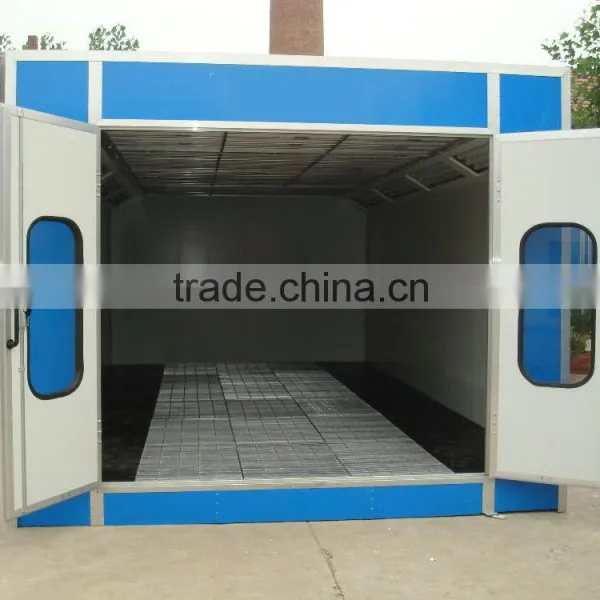

Help CenterDOT-3C4 Spray- Painting Booth / Oven Baking House
Related Products
-
DOT-5C7 Baking Box /spray-painting Booth/oven RoomUS$ 4,980 - 5,893MOQ: 1 Unit -
DOT-5C10 Car Paint Box/spray Booth/baking RoomUS$ 11,565 - 13,545MOQ: 1 Set
-
DOT-8C-6 Spraying Booth/ Painting House/ Baking Paint RoomUS$ 4,980 - 5,893MOQ: 1 Unit
-
DOT-4C5 Car Painting Box/ Spray-baking BoothUS$ 7,520 - 8,940MOQ: 1 Unit
-
DOT-3C7 Baking Box /spray-painting BoothUS$ 4,980 - 5,893MOQ: 1 Unit
Outside Size (mm) L×W×H: 9350x6396x4100
Inside Size (mm) L×W×H: 9200x4500x3500

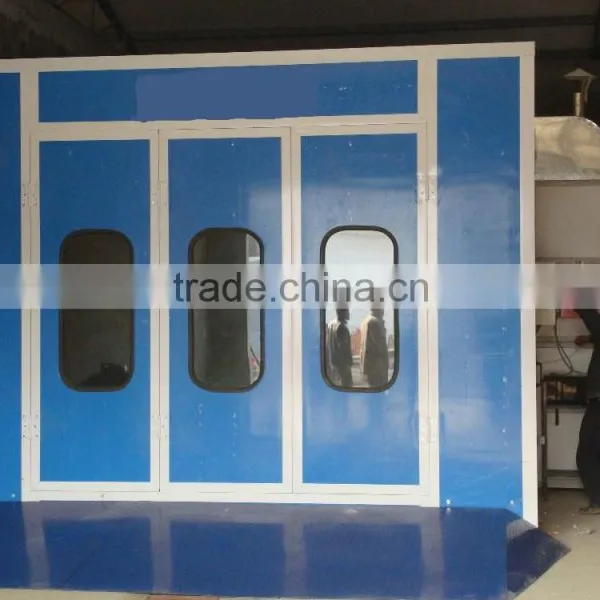

Main Door: 3-folds, 3300x3400(mm) WxH
Personal Door: 1 fold, 600x2000(mm) WxH
Free Air Speed≥0.25m/s
Total Power: 28.5kw
Cabin System:
1. Wallboard: EPS(epispastics polystyrene), 0.426mm Colorful Steel Skin Boards, 75mm Thick, Tongue & Groove Interlock construction, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation;
2. Pit: Two rows of pits in the ground for exhaust air, dimension of each pit is 7000x750mm (LxW)
Generator setting type: Side upper intake air, bake upper exhaust air, powder quadrate steel frame, outside is white coated steel, inside is galvanized steel.
Air Circulation System:
- 1. Inlet Fan: Double-intake centrifugal fans
Model: YDW5.6M
Blower capacity: 20000m3/h;
Power: 7.5kw;
Quantity: 2sets;
- 2. Outlet Fan: Double-intake centrifugal fans, belt drive
Model: TAE-710H
Blower capacity: 36000m3/h;
Power: 11kw;
Quantity: 1sets;
Purification System: Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.2mg/m3;
Heating System:
1. Burner: RIELLO RG5S oil burner, heating productivity: 260000 Kcal/h, 1 set.
2. Heat Energy Converter: stainless steel heat exchanger, argon arc welding;
3. Max Temp: 80℃. Anti-explosion hole for protection. Electric damper from spraying to baking cycle.

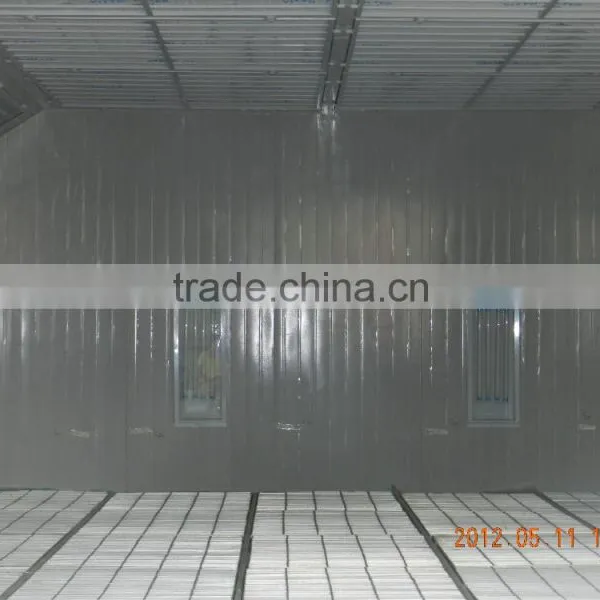

Light System: Illuminance≥450LUX
Ceiling lights: 12 units×3pcs×36w; Side lights: 8 units×4pcs×36w
Controlling System: Lighting Switch, Spraying, Risen-Temperature Spraying, Baking, Temperature Controller, Time Setting, Emergency Stop, Time Accumulator, Failure Indicator, Temperature Limiter, Power Supply.
Company Information

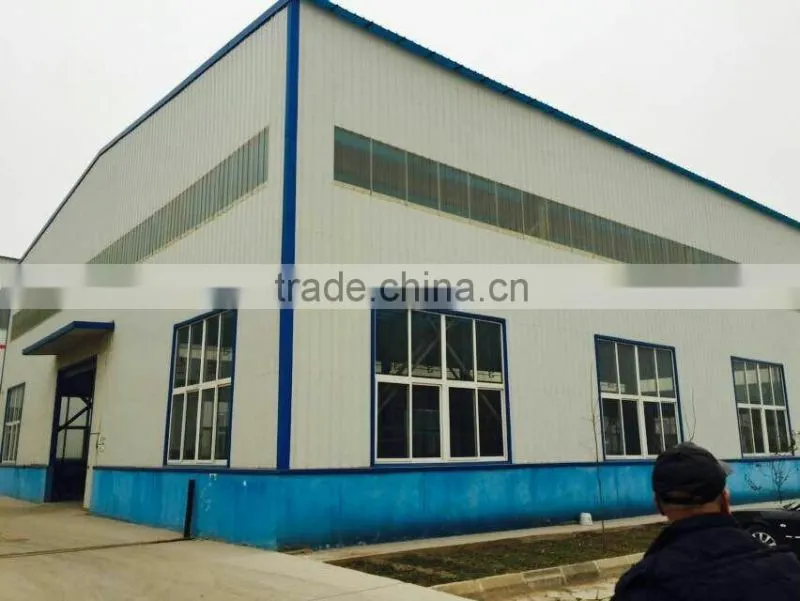

Jinan D Oriental Technology Co.,Ltd is a China based corporation, with integration of development, designation, manufacturing,marketing and services. With more than a decade developing, we positing on painting equipment, automatic production line and automobile fix and maintenance industries.
1. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.
2. What’s the Min order to your company?
1 set.The sample order, if we have stocks, we will send out the products within 1 week.
3. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.
4. What kind of measuring system do you have?
We have the two dimension measuring, three dimension measuring and CHEIF electric measuring system for your choice.
5.What’s the advantage of your company?
We have exported our lifts and service to more than 100 countries. We have specialized team work for you, you will get our feedback within 24 hours.Germany and Italian advanced technology.
Jinan D Oriental Technology Co.,Ltd
Add: Xinzhai Industrial Part, zhangqiu, Jinan, Shandong
Tel: 86-0531-88984033
Fax: 86-0531-88984033
Any needs, contact with us freely.
