Product Description
Outside Size (mm) L×W×H: 7000×5350×3300
Inside Size (mm) L×W×H: 6900×3900×2600
Main Door: 3-folds, 2800x2500(mm) WxH
Personal Door: 1 fold, 600x1800(mm) WxH
Total Power: 12.5kw
Cabin System:
1. Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove construction, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation;

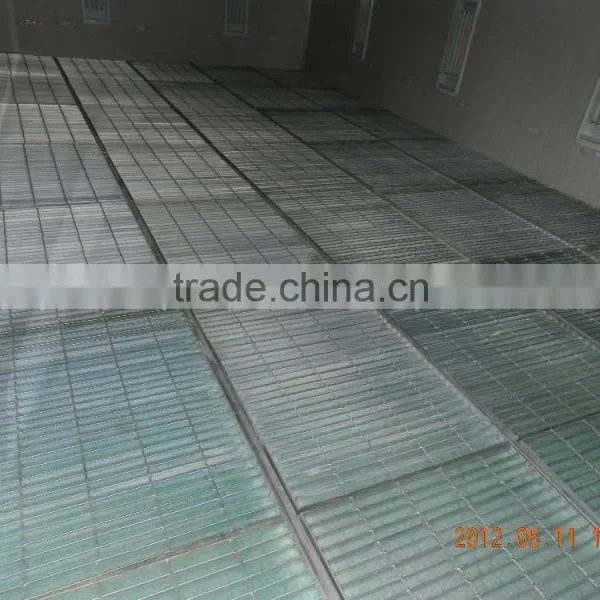

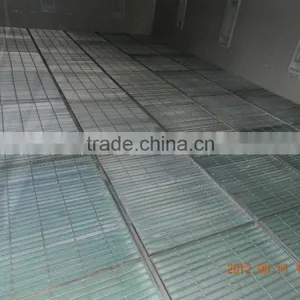

2. Basement: Galvanized Steel Assemble, Height is 300 mm. Full grids. Two Embossed Steel Ramps: 1060x1750mm (WxL)
Generator setting type: Side upper intake air, powder quadrate steel frame, coated steel.
Air Circulation System:
- 1. Inlet Fan:
Double-intake centrifugal fans
Blower capacity: 24000m3/h;
Power: 4kw;
Quantity: 2sets;
- 2. Outlet Fan:
Axial fan
Blower capacity: 20900m3/h;
Power: 3kw;
Quantity: 1set.
Purification System: Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.2mg/m3;
Heating System:
1. Burner: RIELLO G20 oil burner, heating productivity: 200000 Kcal/h, 1 set.
2. Heat Energy Converter: stainless steel heat exchanger, argon arc welding;
3. Max Temp: 80℃. Anti-explosion hole for protection. Electric damper from spraying to baking cycle.
Light System: Ceiling lights: 8 units×3pcs×36w; Side lights: 8 units×2pcs×36w
Controlling System: Lighting switch, spraying, risen-temperature spraying, baking, temperature controller, time setting, emergency stop, limited-temperature controller.
Environmental System: Multi-Layer Fiberglass Filter, active-carbon.

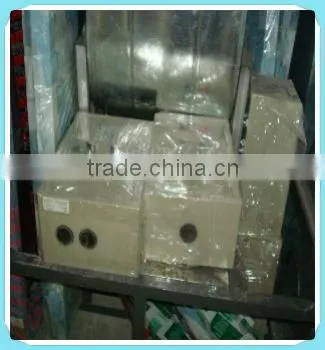

Packaging and shipping
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During warranty time, we will deliver free spare parts through courier on our account if there happened to be any fault caused by our products' quality.
Company Information
Ji'nan D Oriental Technology Co.,Ltd. Is a China based , with integration of development, designation, manufacturing, marketing and services. With more than a decade developing, we positioning on painting equipment, automatic production line and automobile fix & maintenance industries.
The Automatic Business Division was founded in 2008 and make robotic system applying to composite material, precise instrument, automobile industry, metal works, rail transit, sanitary industry and furniture industry etc. Our corporation has become high technology company of the city depend on the advantage of development and technology of ourselves.
Why Choose US ?
1.CE ISO9001 Certification Passed
2. Reliable Quality and Strict Quality Control
3. On-time Delivery Within One Week after the Deposit
4. Reasonable and Competitive Price.
5. OEM ODM Service
6. Excellent Team--Powerful, Efficient and Energetic
FAQ
Q: Are you a factory or a trading company?
A: D Oriental has its own factory and trade company. Listed products are made by D Oriental.
Q:Can I order special color or size which I like?
A: Yes. Actually we have many customize factors in our products, including color and size. Please contact us to know more.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need todo is finishing the simple procedures according to the installation instructions
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 working days after receiving 30% deposit by T/T.
Q: What is "Trade Assurance"?
A: Trade Assurance is a new service provided by Alibaba, which can provides buyers with a number of trade safeguards, protect buyers' payments, and to ensure suppliers fufill their obligations regarding order delivery time and product quality.
