Municipal Solid Waste Trommel Screen
Jinma specializes in mnufacturering all models of GTS trommel screen
Totally enclosed trommel screen (environmental protection),shaftless trommel screen,Movable trommel screen, theself-cleaning screen, etc.
They can be customized.
The Trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

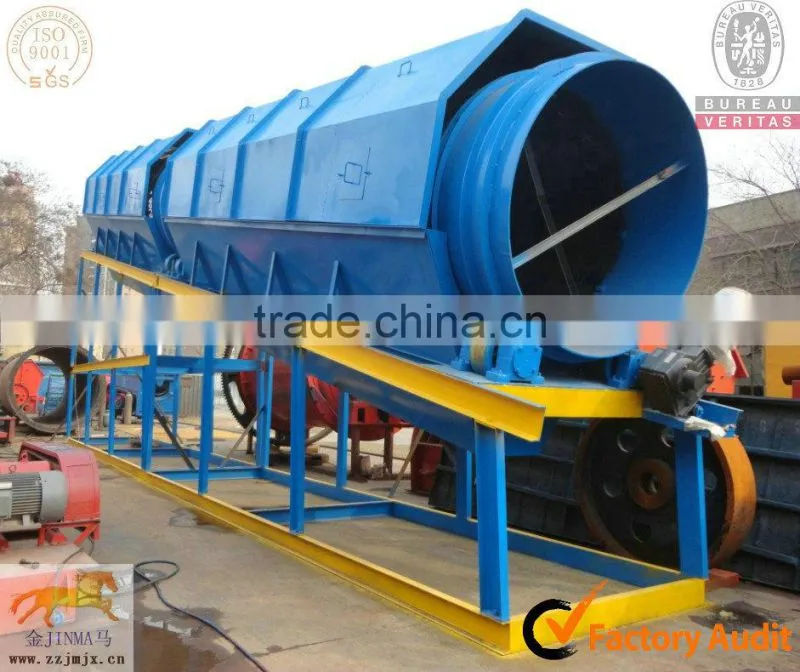

Waste Trommel Screen produce by jinma mining machinery
Working principle of Trommel screen
Trommel screen is consist of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
screen mesh for your reference
the waste trommel screen with blade
Export Countries of Rotary Screen
Australia, Mexico, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.
Municipal Waste → Metal Sorting → Plastic Sorting → Organic Waste → Fertilizer
This line is mainly to handle municipal life garbage. It can completely separate different components from waste and create the good condition for processing the down-stream products. The organic material can be processed into different end-uses of organic fertilizer via high temperature hydrolyze and prepare the technics. The equipment is with advanced technology, reasonable layout, low power consumption safe and durable
Totally enclosed Shaftless Trommel Screen- eco-friendly, low noise
Trommel screen technical parameter
|
Model |
Capacity (t/h) |
Power (kw) |
Drum diameter (mm) |
Drum length (mm) |
Feed size (mm) |
Discharge size (mm) |
Dimension (L*W*H) (mm) |
Weight (kg) |
GTS1015 |
50 |
3.0 |
1000 |
1500 |
≤300 |
0~100 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

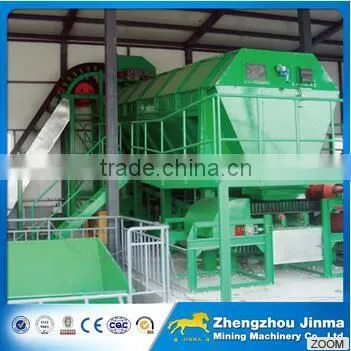

the working of municipal solid waste trommel screen

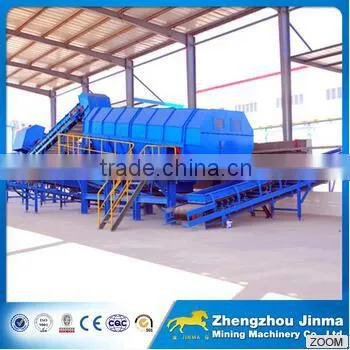

Municipal Solid Waste Trommel screen Working Plant for Our Client in Tajikistan
1>Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976. Our company specializes in manufacturing large and medium-size crusher, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD. It has passed ISO9001:2008 quality management system, CE certification, SGS and BV factory audit.
Here are our company qualifications certificated by related institutions
2>Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd.
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within 10 years
Here are the views of our company
See what our customers get back to us:(about the trommel screen)
----“We haven’t replaced any spare part after continuous running for 16 months. Everything is still in perfect condition so far !”
----"I value the stability of the equipment operation. The quality is good, and maintenance operation is convenient.The output is also fully achieved, the mesh is durable, a few of my colleagues visited here after I also ordered the equipment. "
----" Jinma help me build the complete gola washing plant line, offer me the technical guidance, CAD drawings and so on, I am very satisfied. "
the delivery of the waste trommrl screen
WHY CHOOSE US
1 Jinma play as a good adviser and assistant of clients, we can help our clients to get returns more on their investments.
2 We will continuously create morenew type products and more perfect technological service.
3 We believe that to statisfy our clients is our aim.
Parts and consumables support
Jinma Mining Machinery has developed a well earned reputation in the design and manufacture of equipment for the crushing equipments,ball mill,sand making machine and waste management industries.
We provide each customer with the service through every stage of every project and beyond, to ensure the delivery of projects which will consistently out-perform our customers expectations.
our clients visit our factory and give us advises
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
If you want to know about our products in details, Welcome to contact me at any time.
