Municipal Solid Waste Separator Trommel Screen Compost
Trommel compost introduction
Trommel drum screen are constructed of high quality material, designed for great performance, high production rates, lower operating costs and lower maintenance.
This discharge material from the trommel drum screen is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrate, spirals, jig etc

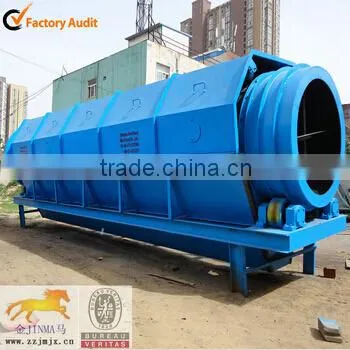

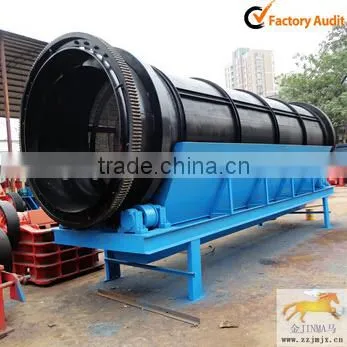

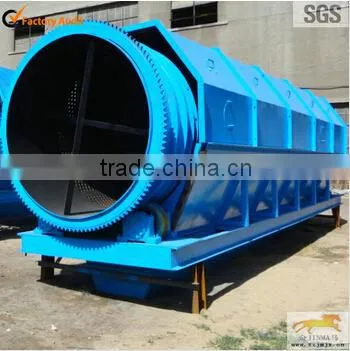

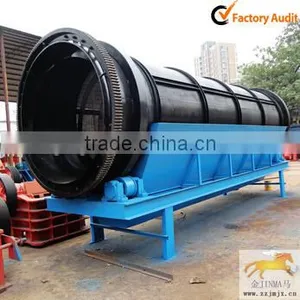

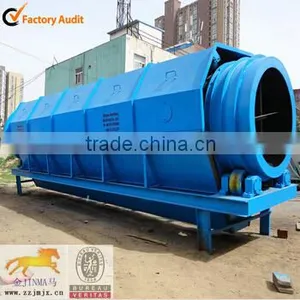

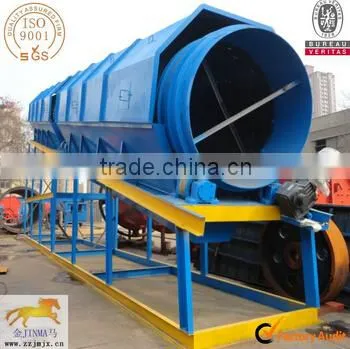

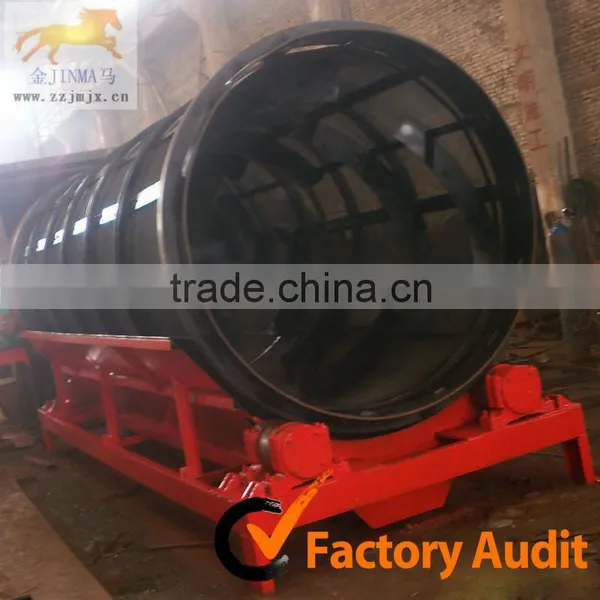

The waste separator trommel screen produced by our factory
Trommel compost main structure
Trommel drum screen is consist of round trommel, rack, discharging, speed reducer, motor, water flusher etc 6 parts. Crushed ore feed into trommel, with the help of rotating centrifuge power and jigging to classify materials. And classify from different screen mesh. Different size materials will convey to finished materials after funnel. On one hand, big size materials will flow front along the trommel inclination, and screen out from different mesh. Small size will discharge its own hopper and carry out by hand.
screen mesh for your reference
Features of trommel compost
1.Screen is not to be blocked
2.Simple structure, easy to maintaince
3.Stable operation, low noise, lang operating time
4.The high reliability, less one-time investment.
5.Using special screen, large screening efficiency
6.It is with wheel type chassis, can be driven by vehicles and move easily.
the waste trommel screen with blade
Municipal Waste → Metal Sorting → Plastic Sorting → Organic Waste → Fertilizer
This line is mainly to handle municipal life garbage. It can completely separate different components from waste and create the good condition for processing the down-stream products. The organic material can be processed into different end-uses of organic fertilizer via high temperature hydrolyze and prepare the technics. The equipment is with advanced technology, reasonable layout, low power consumption safe and durable
Technical parameters of trommel compost
Model |
Capacity (t/h) |
Power (kw) |
Drum diameter (mm) |
Drum length (mm) |
Feed size (mm) |
Discharge size(mm) |
Dimension (L*W*H) (mm) |
Weight (kg)
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
≤300 |
0-100 |
2600*1400*1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390*1400*2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460*1900*2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960*1900*3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500*2350*4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500*2550*4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500*2750*5000 |
12800 |
the working of the trommel screen

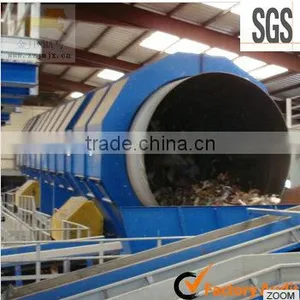

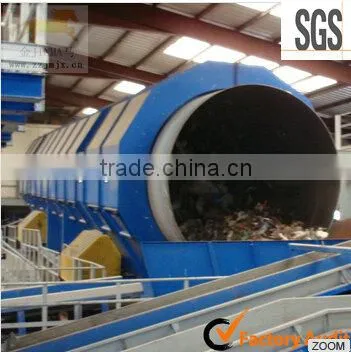

the trommel screen used in the waste disposal
MSW municipal solid waste sorting plant for Our Client in Tajikistan
2>Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd.
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within 10 years
Here are our company qualifications certificated by related institutions
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.Supplying technique, building design, instruction, installation and debugging for free.
the clients visit our factory
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.

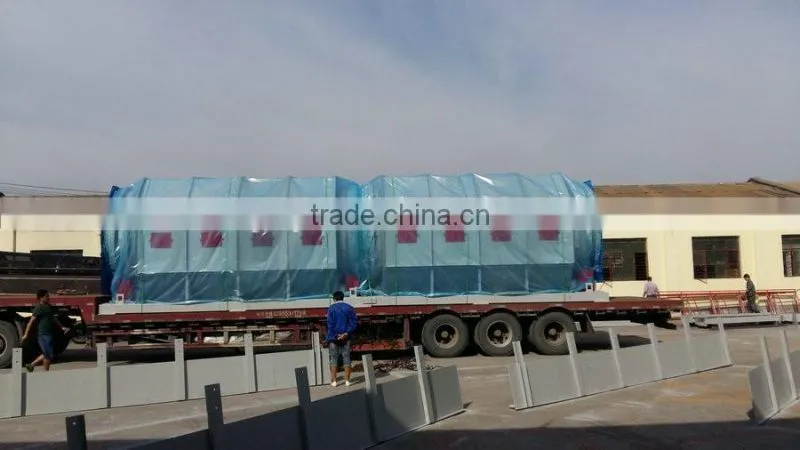

the delivery of the trommel screen
Notes:
With more than 30 years of production experience, we can also supply:
Crushers: jaw crusher, hammer crusher, cone crusher, impact crusher, fine crusher, compound crusher, roll crusher ,etc.
Stone Production Line: vibrating feeder, crusher, vibrating screen, belt conveyor, sand washing machine.
Beneficiation Production Line: vibrating feeder, crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, rotary dryer.
Other Equipments: chute feeder, swing feeder, linear screen, trommel screen, spiral chute, shaking table.
If you want to know about our products in details, Welcome to contact me at any time.
| Company | Zhengzhou Jinma Mining Machinery Co., Ltd |
| Name | Cherry Fan |
| Tel | +86-371-67511065 |
| Fax | +86-371-67512579 |
| Mobile | +86-18239673197 |
| Skype | cherry74120 |
| Web |
