Trommel application:
This series of trommels are always used in processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc. This machine works in a re-circulating network with Ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of Spiral Classifier.
Trommel working principle:
Trommel consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Technical parameters of trommel:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

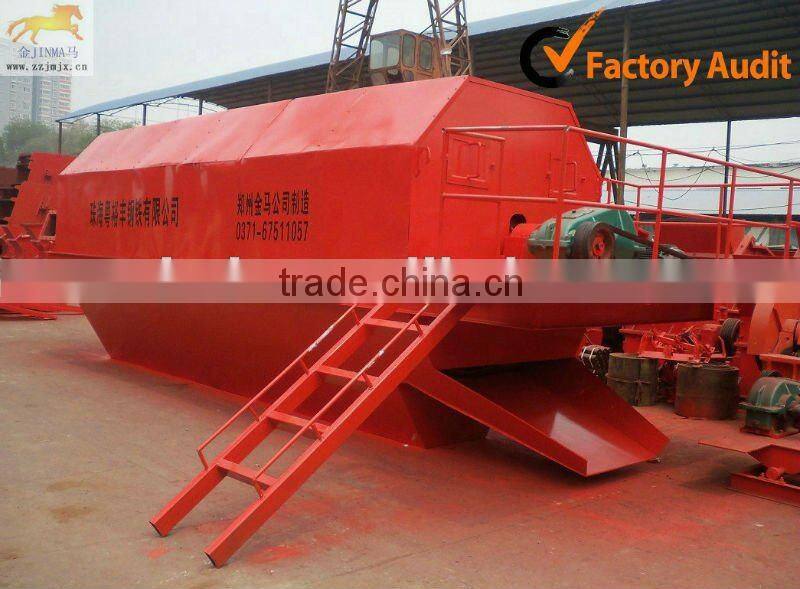

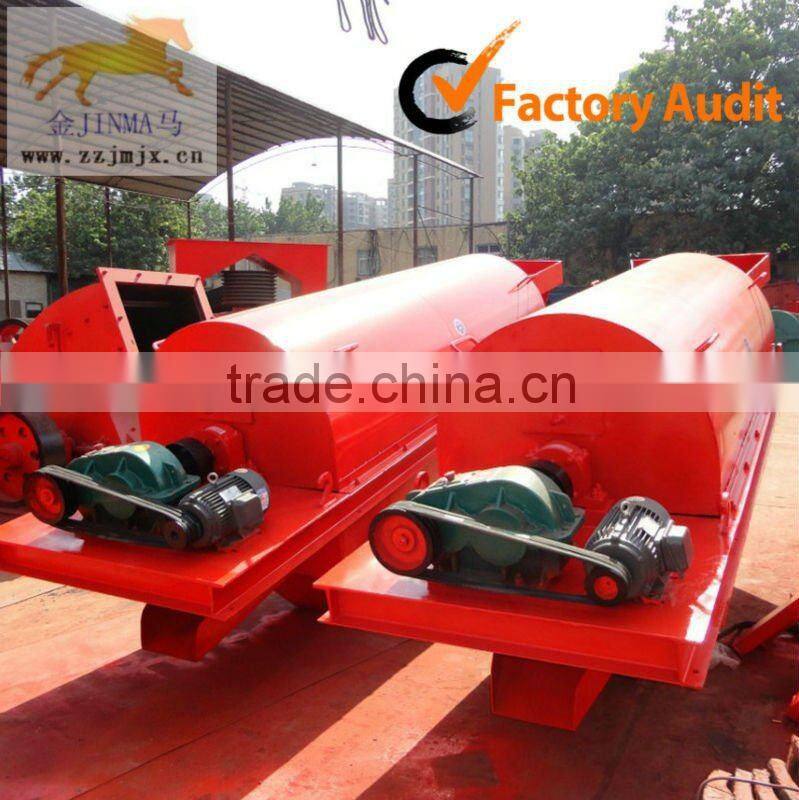

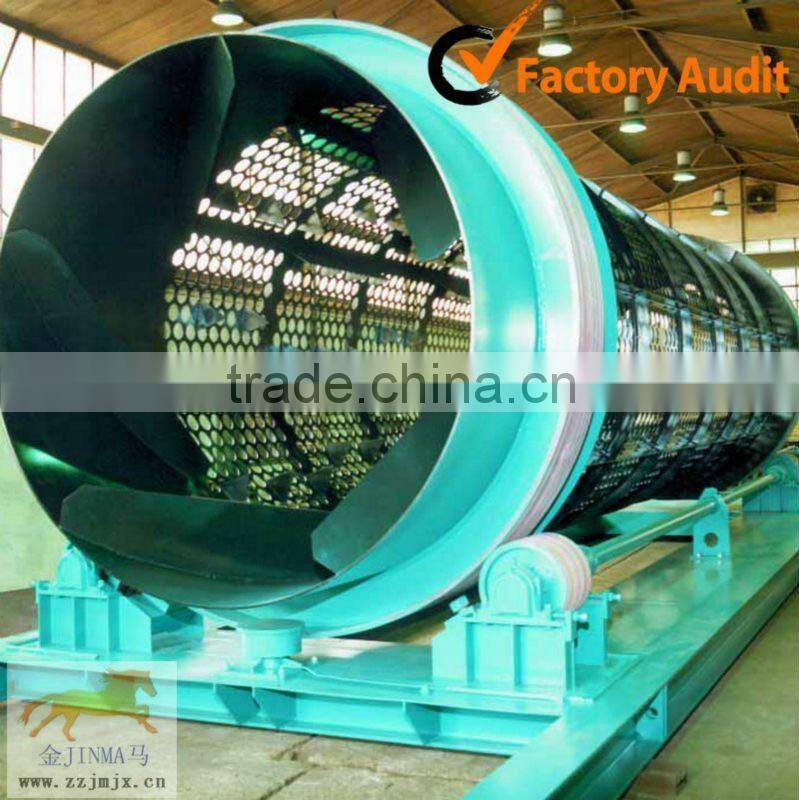

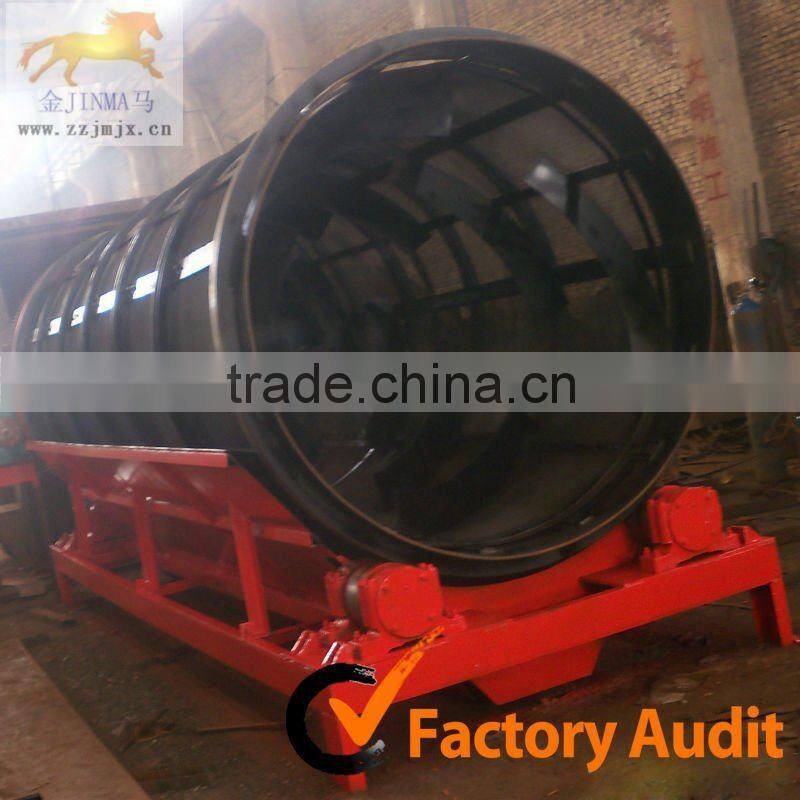

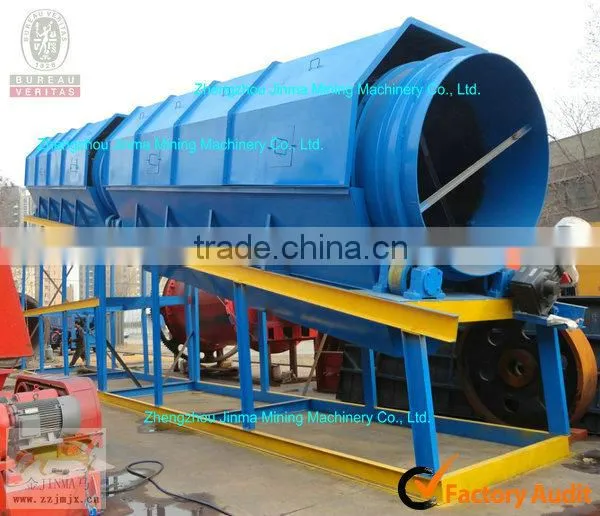

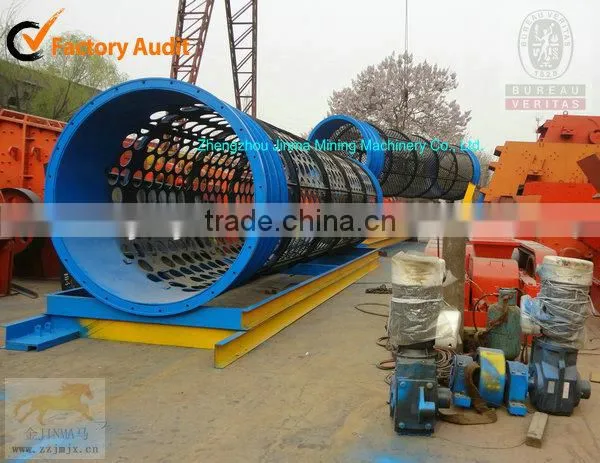

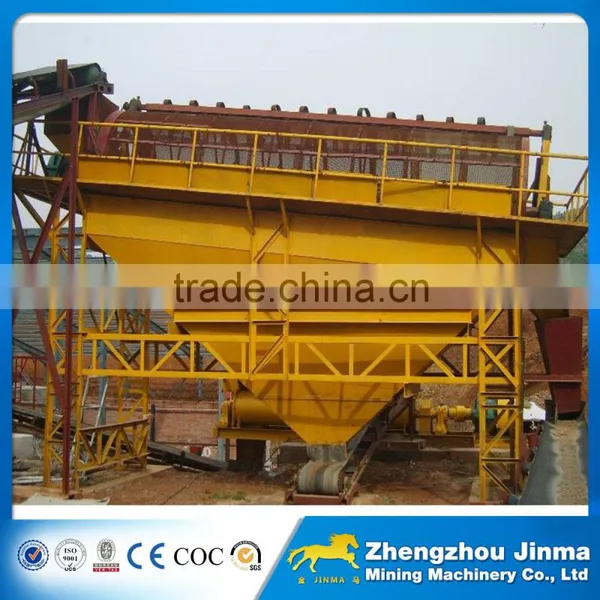

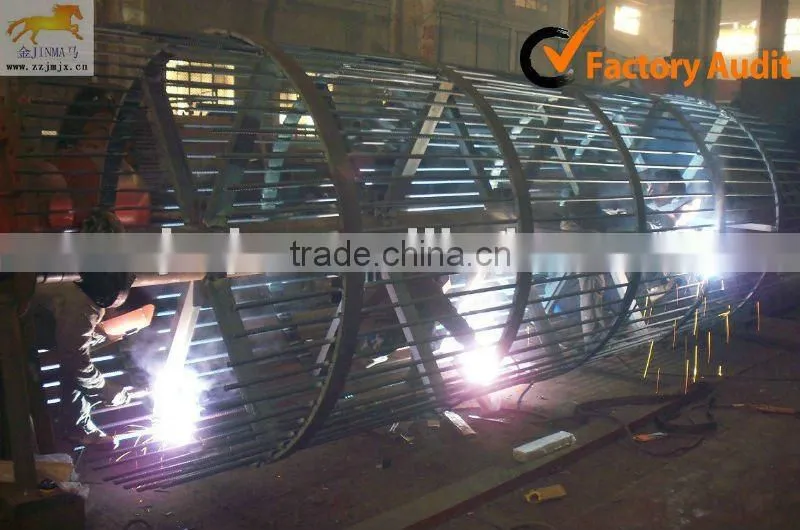

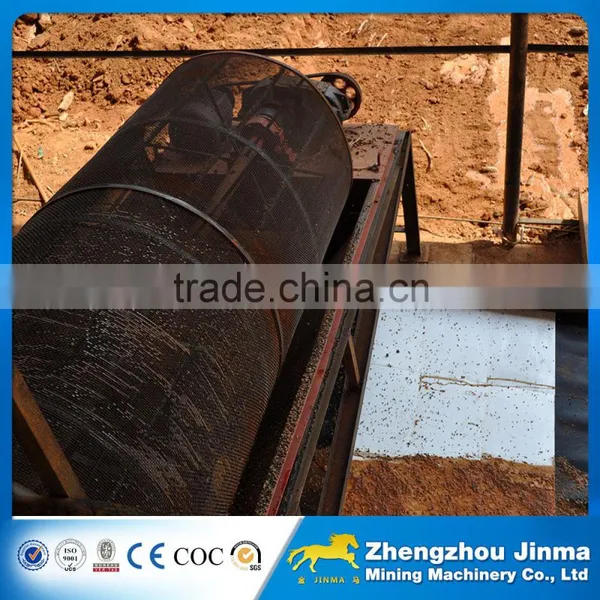

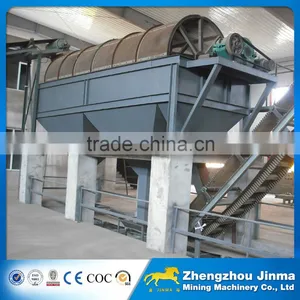

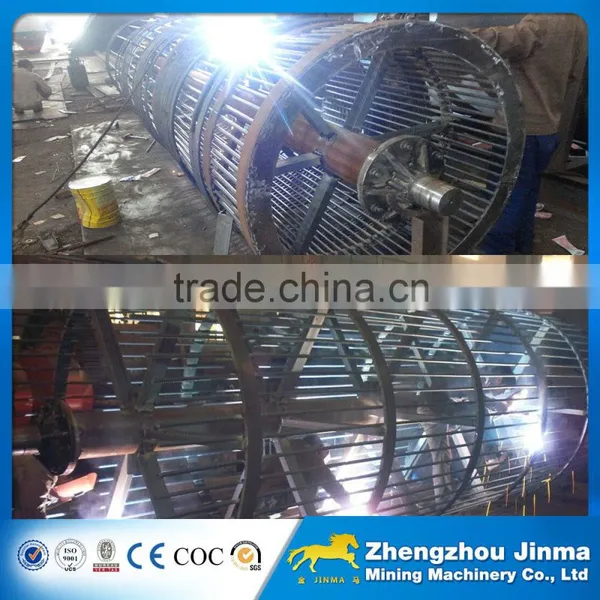

Various kind of trommel produced by Zhengzhou Jinma mining machinery company

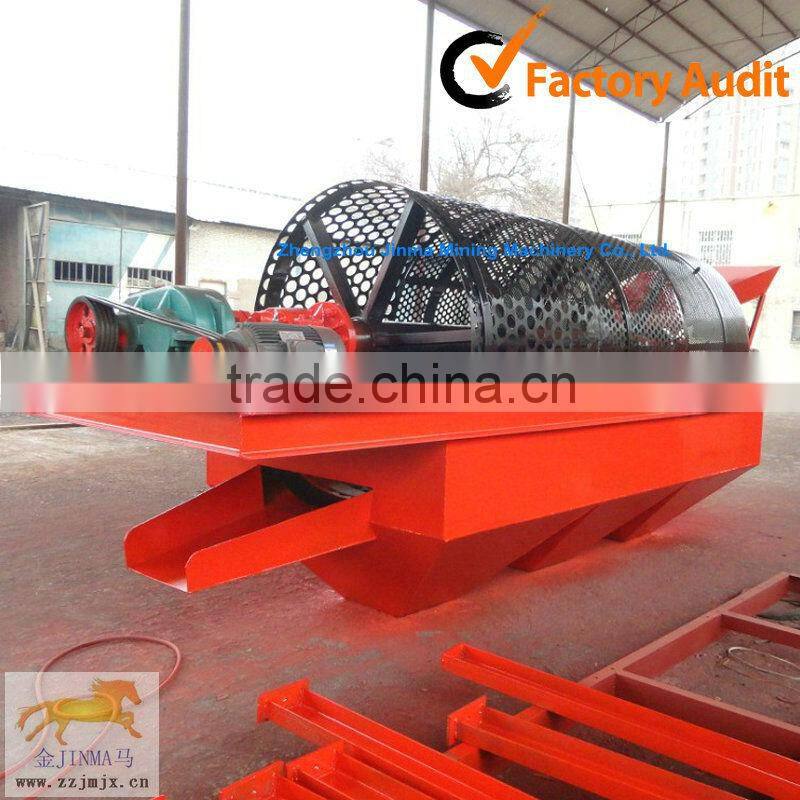

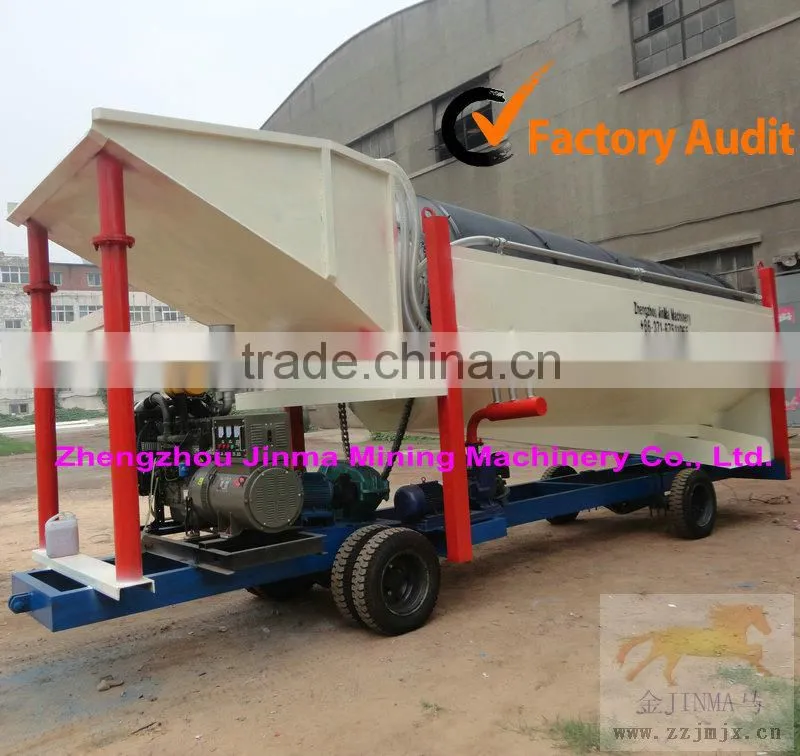

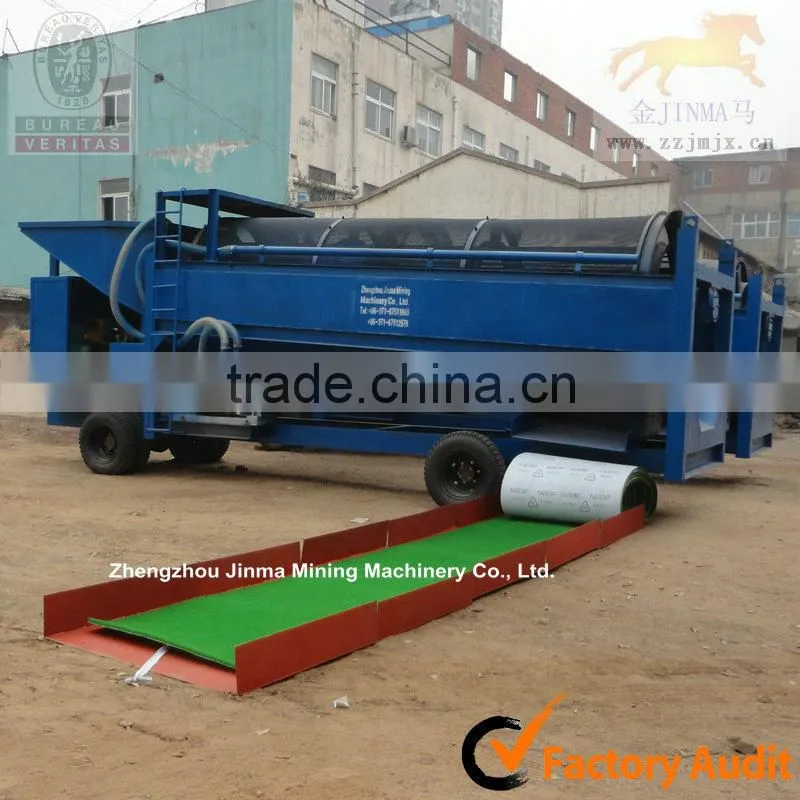

Mobile trommel produced by Jinma mining

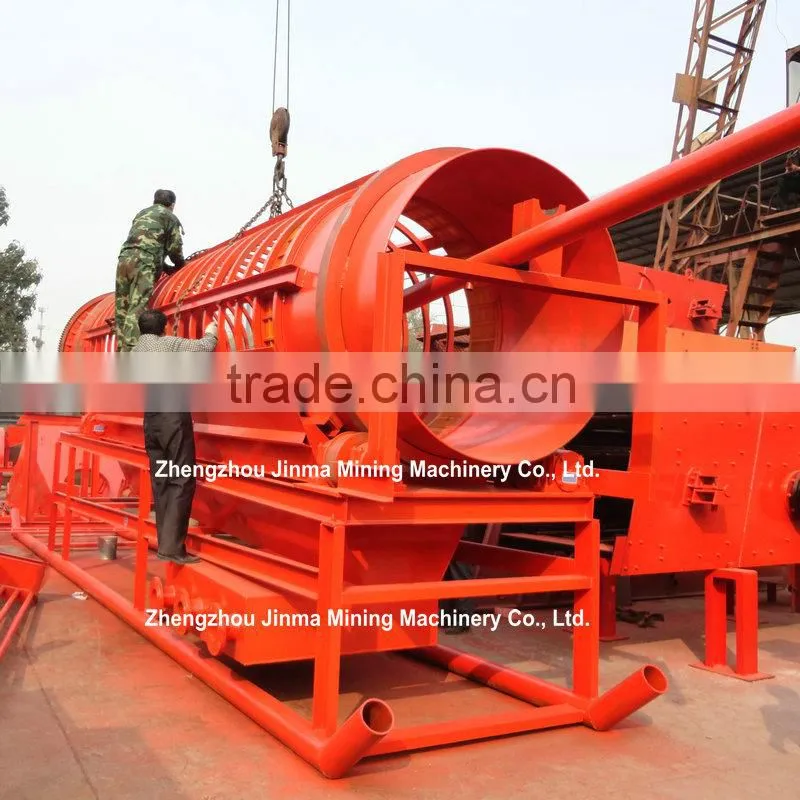

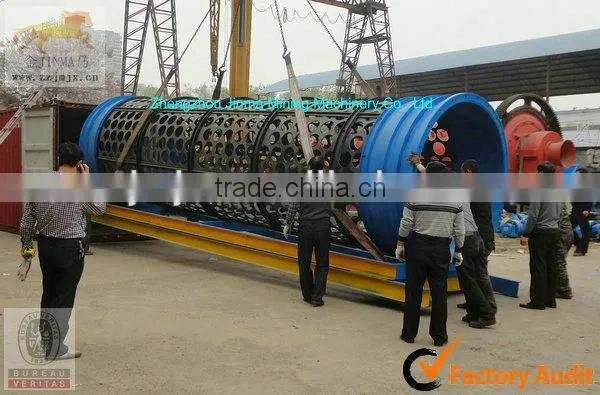

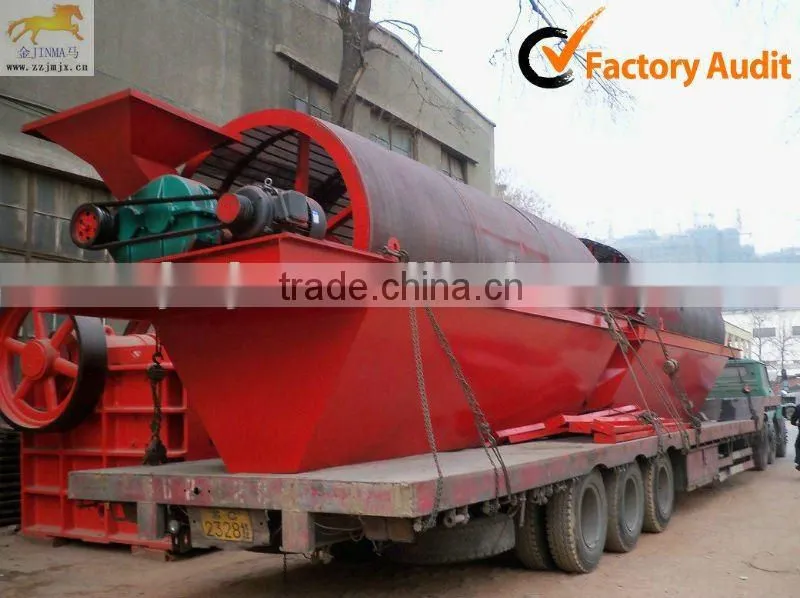

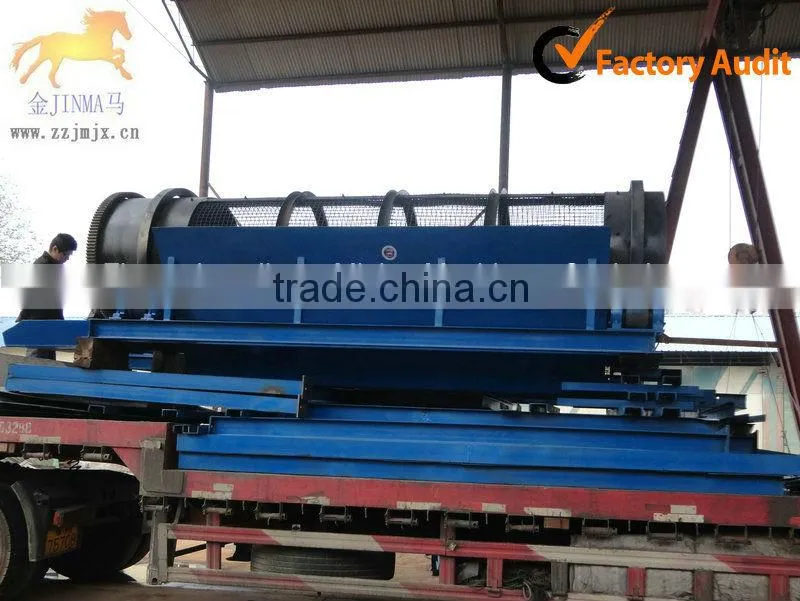

Trommel Delivery from Jinma mining
