Municipal Waste Recycling Plant Compost Sieve Machine
Drum Trommel Screen Separator Description
The Trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Features of Trommel Screen
1. It is suitable to separate various materials included poor quality of coal, coal slime, or soot.
2. It do not require special facility and suitable for various material feeding methods.
3. It has higher efficiency by the installation of comb shape screen structure.
4.Cylindrical shape of screen provided larger surface area which has higher possibility of materials to contact with the screen mesh; therefore, it has higher capacity and more effective.
5. It is a energy saving equipment.
Working Principle of Trommel Screen
Trommel screen consists of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes.
The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Municipal Waste → Metal Sorting → Plastic Sorting → Organic Waste → Fertilizer
This line is mainly to handle municipal life garbage. It can completely separate different components from waste and create the good condition for processing the down-stream products. The organic material can be processed into different end-uses of organic fertilizer via high temperature hydrolyze and prepare the technics.

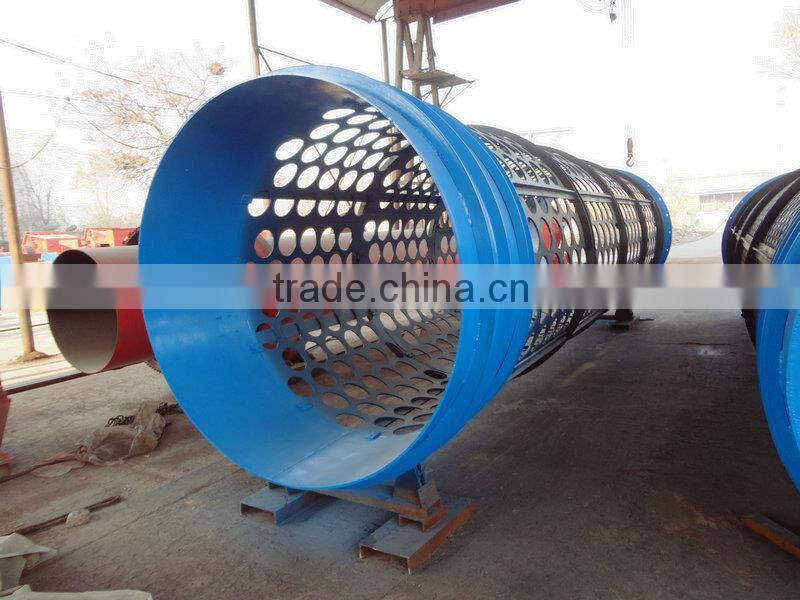

screen mesh for your reference
Export Country of Rotary Screen:
Greece, Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.
Technical parameter of Trommel Screen:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

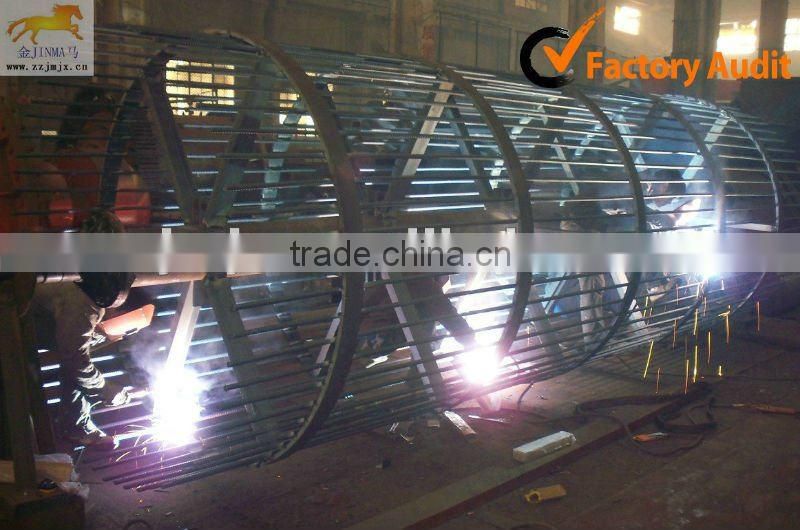

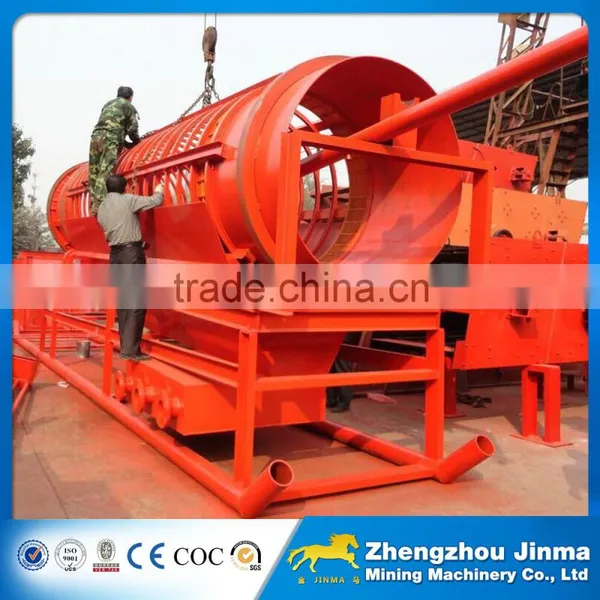

the producing process

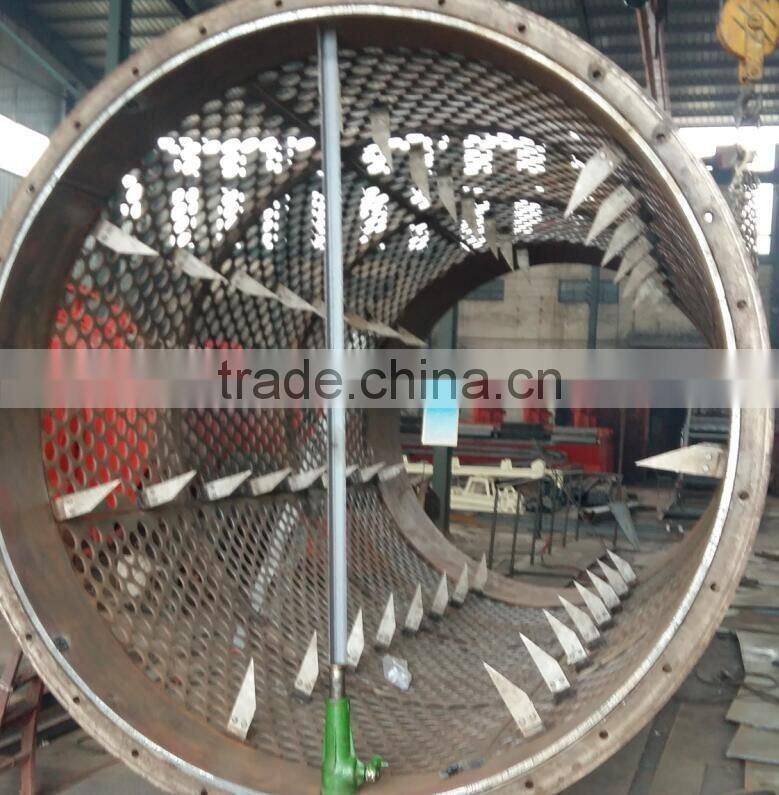

the waste trommel screen with blade

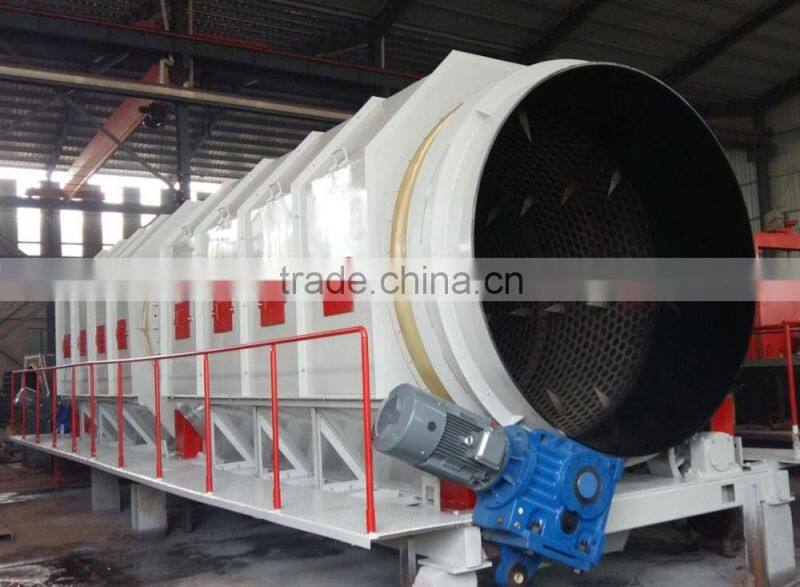

the working of the trommel screen

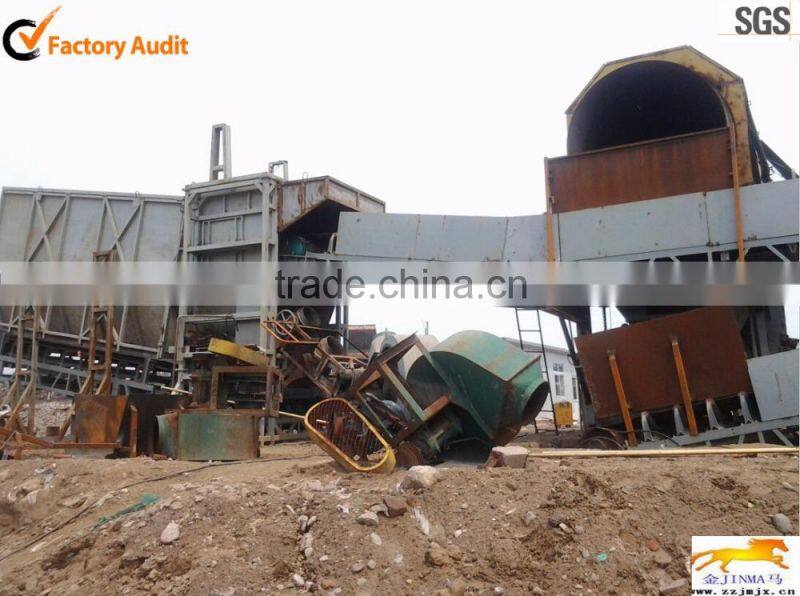

the trommel screen used in the waste disposal

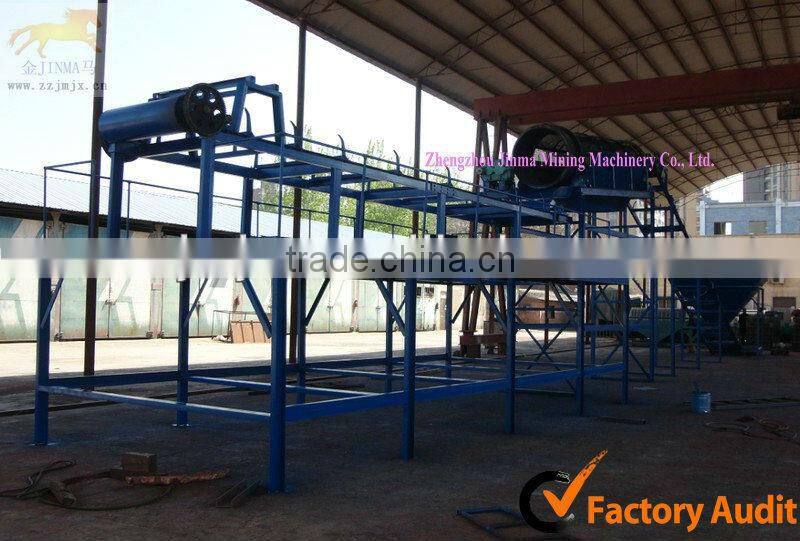

MSW municipal solid waste sorting plant for Our Client in Tajikistan
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within 10 years
Here are our company qualifications certificated by related institutions
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.Supplying technique, building design, instruction, installation and debugging for free.
the clients
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
With more than 30 years of production experience, we can also supply:
Crushers: jaw crusher, hammer crusher, cone crusher, impact crusher, fine crusher, compound crusher, roll crusher ,etc.
Stone Production Line: vibrating feeder, crusher, vibrating screen, belt conveyor, sand washing machine.
Beneficiation Production Line: vibrating feeder, crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, rotary dryer.
Other Equipments: chute feeder, swing feeder, linear screen, trommel screen, spiral chute, shaking table.
If you want to know about our products in details, Welcome to contact me at any time.
