Gold Trommel Machine Made In China
Gold trommel machine application:
This series of trommel Screens are widely used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
Gold trommel machine working principle:
After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Technical parameters of gold trommel machine:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
Notes:we could provide the model as the customers' requirement. In addition,we could provide the whole complete line of gold selecting.
Gold trommel machine is in making process:

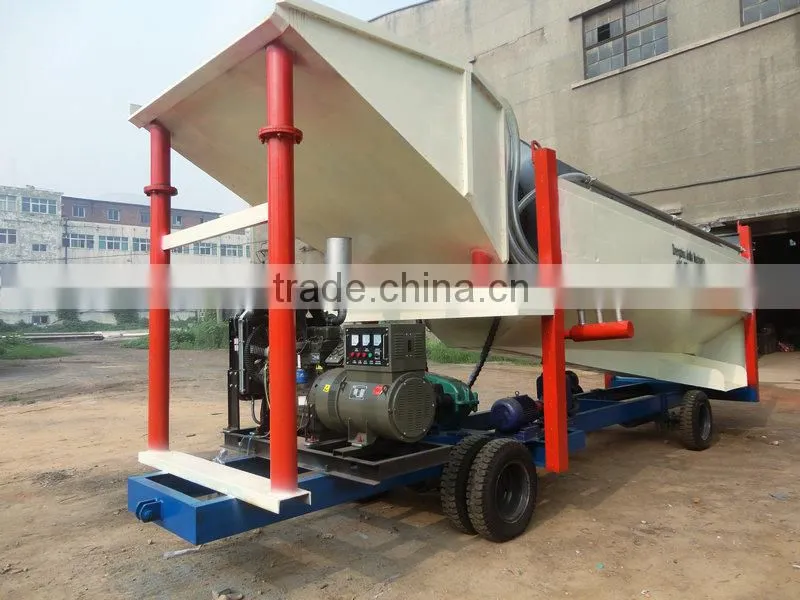

Finished gold trommel machine without coated color:

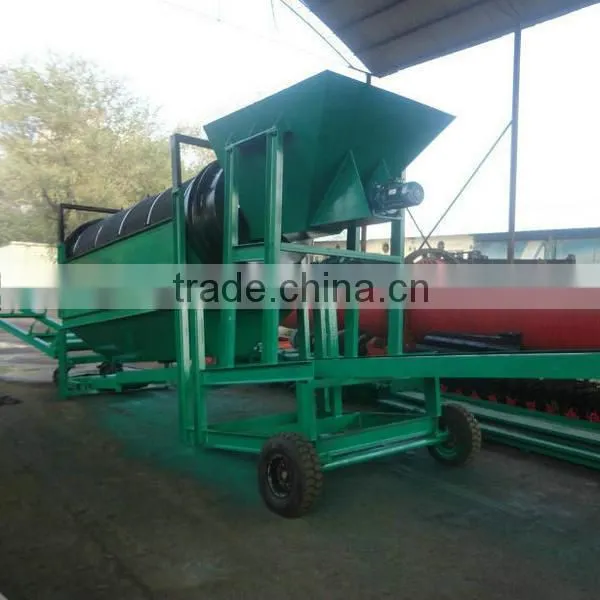

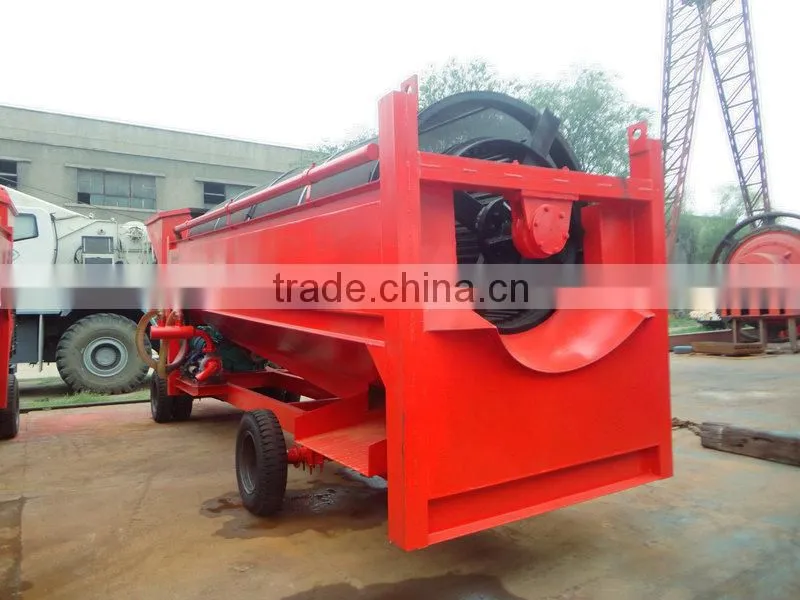

Gold trommel screen finished with different colors as the clients' requirement:

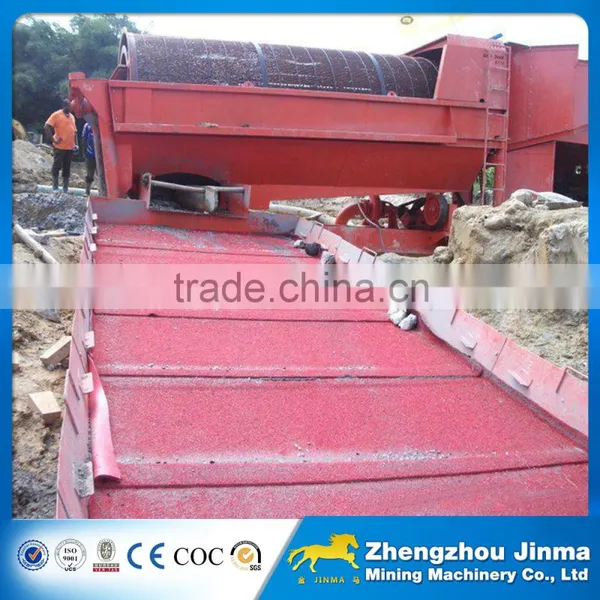

The gold trommel machine with gold sluice carpet:
Delivery of gold trommel machine in Jinma
Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd.
- Jinma provide the design, process diagram and foundation drawings according to clients' request.
- Clients are welcome to inspect the equipment when the equipment are ready to delivery.
- Equipment will be delivered with English Manuals and technical drawings
- Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
- The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
- Offer spares for the equipment within 10 years.
Oversea customers come to visit to our factory:
The certifications acknowledged by different institutations:
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
4.Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
If you want to learn more about the products,you could contact me.
| Name | Cathy Chen |
| Skype | cherish2228617703 |
| Mobile/Whatsapp | 0086-13939060840 |
Looking forward to having a win-win cooperation with you.
