Alluvial Gold Placer Gold Mining Machine Equipment

Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-1
Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-2
Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-3
Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-4
Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-5
Alluvial Gold Placer Gold Mining Machine Equipment thumbnail-6
Alluvial Gold Placer Gold Mining Machine Equipment photo-1
Alluvial Gold Placer Gold Mining Machine Equipment photo-2
Alluvial Gold Placer Gold Mining Machine Equipment photo-3
Alluvial Gold Placer Gold Mining Machine Equipment photo-4
Alluvial Gold Placer Gold Mining Machine Equipment photo-5
Alluvial Gold Placer Gold Mining Machine Equipment photo-6
US$ 4,500 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Zhengzhou Jinma Mining Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai or as request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name Jinma
Model Number GTS series Mining Machine,Gold Mining Machine
Voltage 220V - 440V
Power(W) 4KW - 30KW
Dimension(L*W*H) Depend on the model
Weight 2T -18.6T
Certification ISO9001:2008, BV, SGS
Warranty 12 months(Wearing parts except)
After-sales Service Provided Engineers available to service machinery overseas

       Alluvial Gold Placer Gold Mining Machine Equipment

Alluvial Gold Placer Gold Mining Machine Equipment Alluvial Gold Placer Gold Mining Machine Equipment







Structure of Gold Mining Machine Equipment



1. This alluvial gold wash plant is newly designed under the special requirment of our customer in Bulgaria.

2. This alluvial gold wash plant get special designed and manufactured mesh screen, and all the iron in this machine.

3. This alluvial gold wash plant is more than strong enough to ensure this machine could working under different conditions.



Working Principle of Alluvial Gold Mining Machine Equipment



Alluvial gold wash plant is consist of five parts as drum, frame, hopper, reducer and motor.



After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.

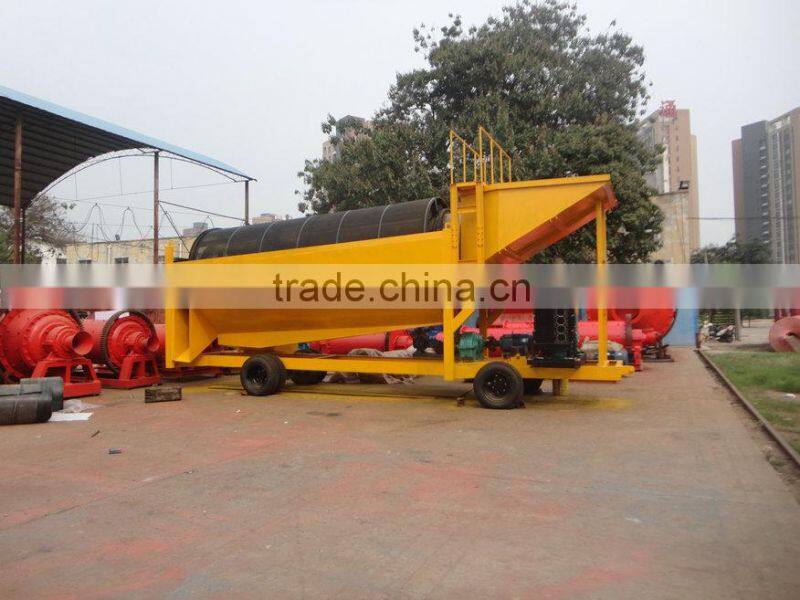

Alluvial Gold Mining Machine Equipment(Mobile Trommel)have water pump & diesel generator for choose

Alluvial Gold Placer Gold Mining Machine Equipment

Alluvial Gold Placer Gold Mining Machine Equipment

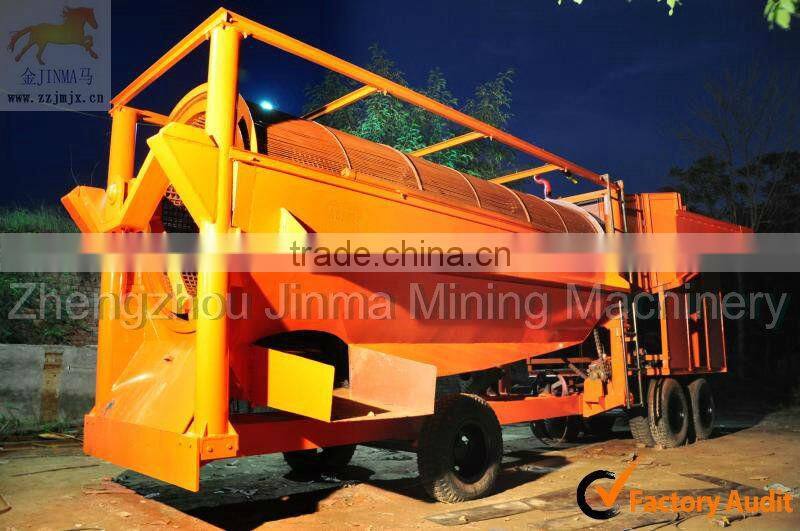

Moveable wheel make this Gold Mining Machine Equipment Mobile Trommel easy to move





Alluvial Gold Placer Gold Mining Machine Equipment

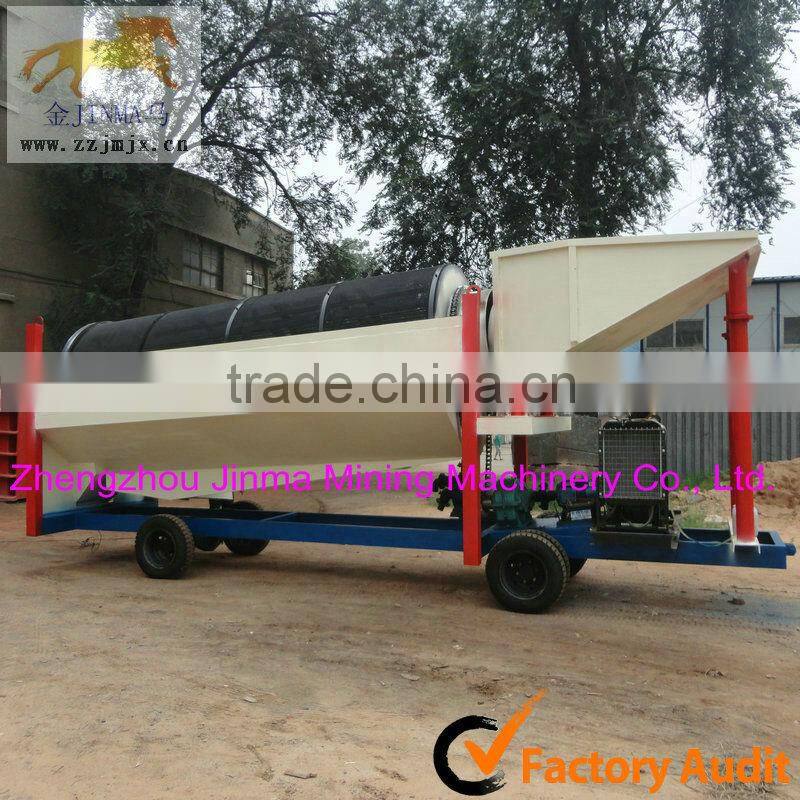

Alluvial Gold Mining Machine Equipment(Mobile Trommel) has a high potential value, usually for alluvial gold and placer gold

Alluvial Gold Placer Gold Mining Machine Equipment



Alluvial Gold Mining Machine Equipment(Mobile Trommel) also could be used for placer gold mining

Alluvial Gold Placer Gold Mining Machine Equipment

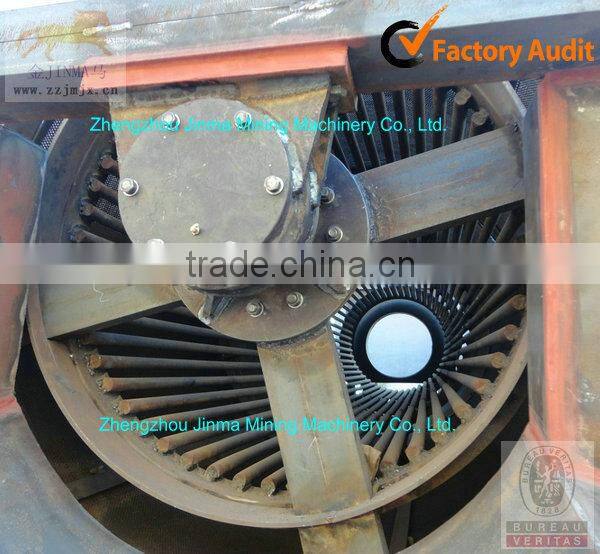

spiral structure desigh for compost new customized for Bulgaria

Alluvial Gold Placer Gold Mining Machine Equipment





Features of Gold Mining Machine Equipment (Mobile Trommel)



1. The angle of inclination of installation is small and the machine is not very easy to be blocked.

2. Drum screen covers a small size.

3. Low noise and little powder dust pollution.

4. High screening efficiency.

5. Dust collector and covering of screening drum.

6. Screen replaceable by open screws.

7. Outside screen replaceable for different mesh sizes.





  Technical Parameter of Gold Mining Machine Equipment(Mobile Trommel)





Model

Capacity(t/h)

Power(kw)

Drum diameter

(mm)

Drum length (mm)

Feed size

 (mm)

Discharge size(mm)

Dimension

(L*W*H)(mm)

Weight

(kg)

GTS1015

50

3.0

1000

1500



≤300







0~100

2600×1400×1700

2200

GTS1020

100

4.0

1000

2000

 3390×1400×2140

2800

GTS1225

160

5.5

1200

2500

 4146×1600×2680

4200

GTS1530

250

7.5

1500

3000

 4460×1900×2820

5100

GTS1545

350

11

1500

4500



≤400

5960×1900×3080

6000

GTS1848

450

15

1800

4800

6500×2350×4000

7500

GTS2055

600

22

2000

5500

7500×2550×4800

9600

GTS2265

800

30

2200

6500

8500×2750×5000

12800





Hot Sale Model:



GTS1545 Mobile Rotary Screen Machine:

Alluvial Gold Placer Gold Mining Machine Equipment

Capacity:  80-120 TPH(tons per hour);

Double deck;

Screen mesh size as your request;

7.5 KW water pump;

50 KW diesel generator;

The water pump and diesel generator can be changed.
