Gold Screener Rotary Mobile Screen for Sale
Rotary Mobile Screen Machine
The main structure of Rotary Mobile Screen is sieve cylinder. It is made up of several circular mesh and it is inclined state with the ground. The external is sealed by sealing isolation cover in order to prevent environmental pollution.
Rotary Mobile Screen Application
Rotary Mobile Screen is most commonly used classification device for refractory material, coal, river sand and mixture of sand and stone.
Rotary Mobile Screen Features
Rotary Mobile Screen for Material Sieving consists of five parts as drum, frame, hopper, reducer and motor.
It is configured for materials' classification, screening and grading.
Mobile Screen Rotary Screen Working Principle
Rotary Mobile Screen use Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.
Rotary Mobile Screen Technical Parameter
Model |
Capacity(T/H) |
Power(KW) |
Diameter (mm) |
Length(mm) |
Mesh range(mm) |
Max Feed size(mm) |
Overall size(L×W×H mm) |
Weight(kg) |
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
|
|
3390×1400×2140 |
2800 |
GTS1225 |
160 |
5.5 |
1200 |
2500 |
|
|
4146×1600×2680 |
4200 |
GTS1530 |
250 |
7.5 |
1500 |
3000 |
|
|
4460×1900×2820 |
5100 |
GTS1545 |
350 |
11 |
1500 |
4500 |
|
400 |
5960×1900×3080 |
6000 |
GTS1848 |
450 |
15 |
1800 |
4800 |
|
|
6500×2350×4000 |
7500 |

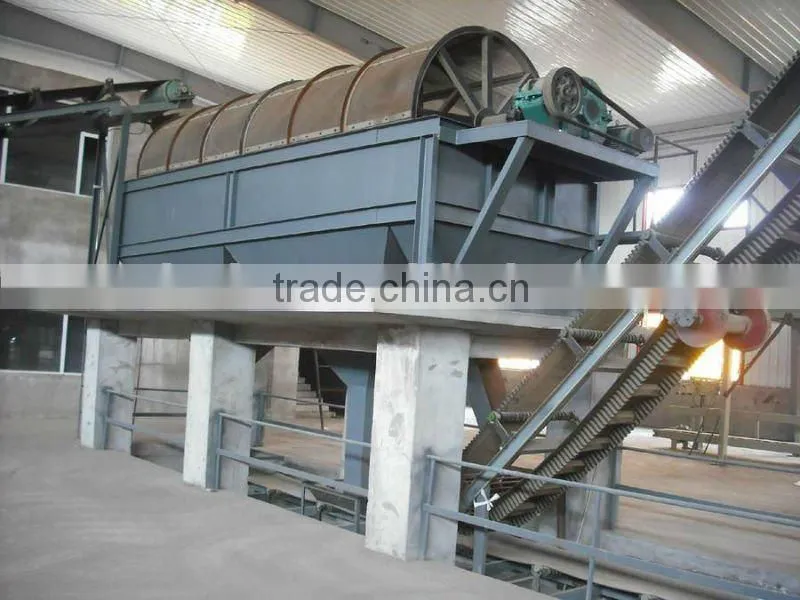

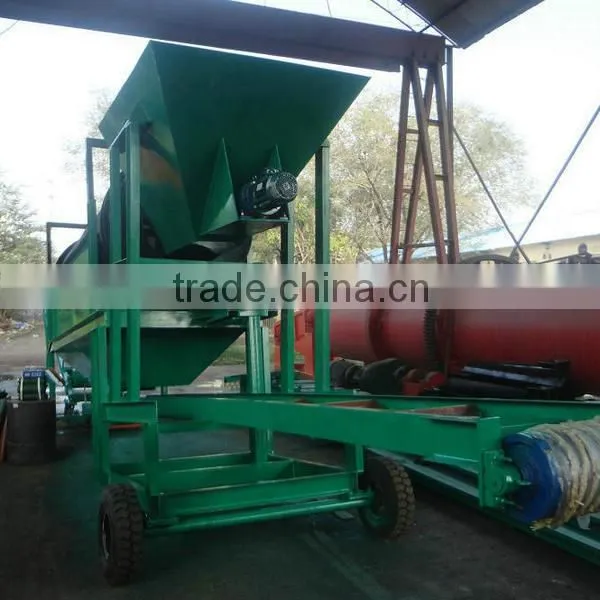

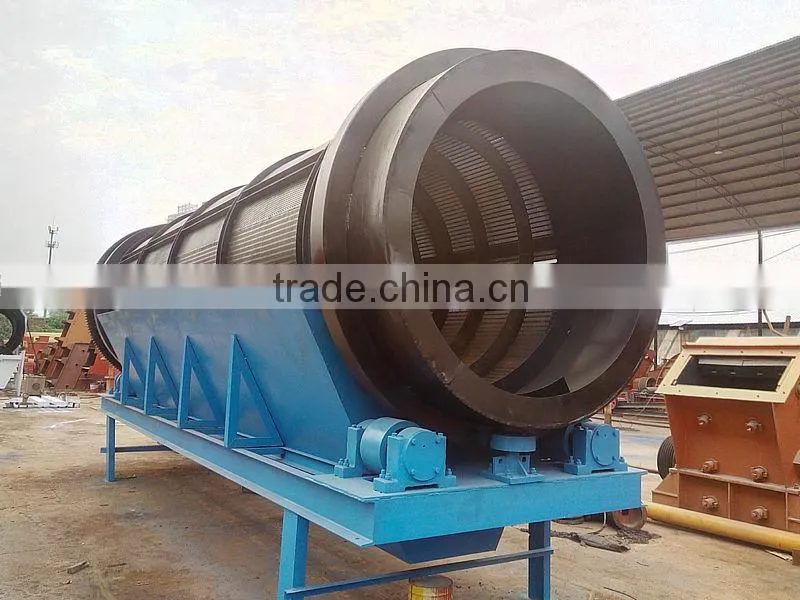

Rotary Mobile Screen Produced by Jinma and on working site

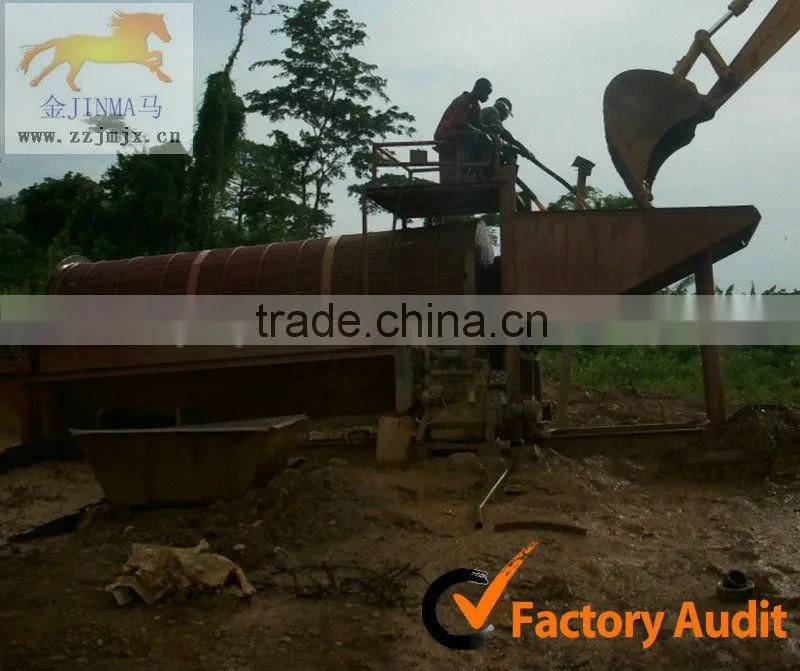

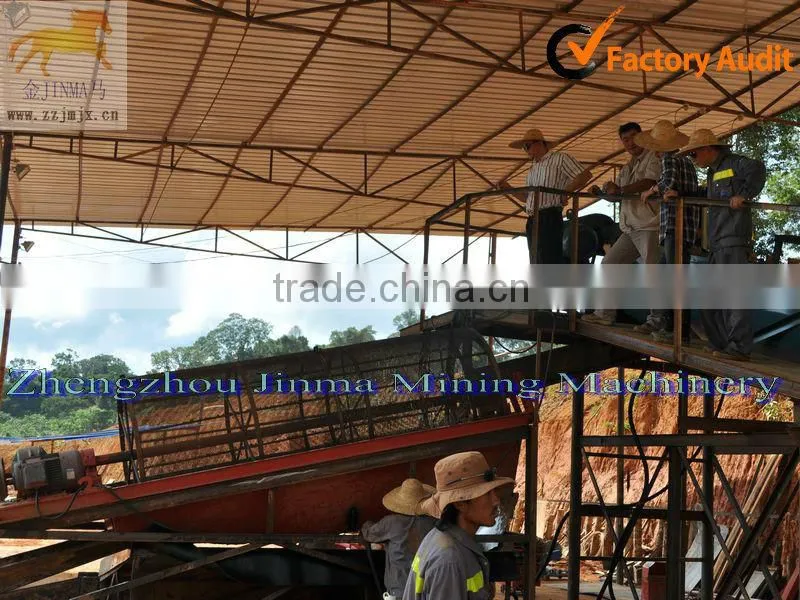

Rotary Mobile Screen on Our Clients'site
Other Rotary Screen Model for aggregate , Municipal solid waste sorting, compost
About Our Mobile Screen Rotary Screen:
1. Exported to more than 70 countries in Africa, Asia, Europe, North America such as South Korea, India, United States, Nigeria.
2. Professional research and development team.
3. Strict quality control.
4. Humanized after-sales service.
For more details about Screen,welcome to contact me!
Name: Dawn Liu
Zhengzhou Jinma Mining Machinery Co., Ltd.
Mobile: +8613703864401
Skype: sangshen1990
