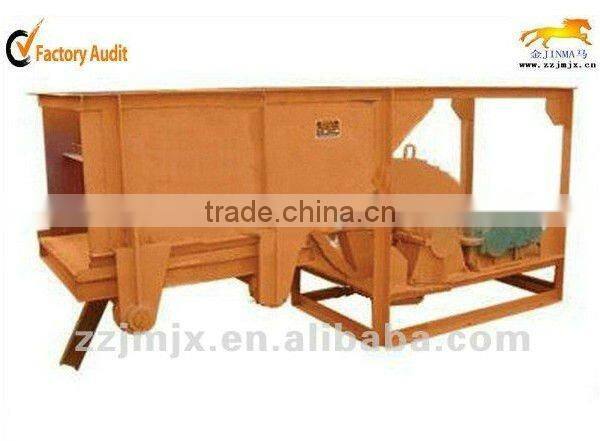

Ore Chute Feeder For Mineral Processing

Ore Chute Feeder For Mineral Processing

Introduction of Chute Feeder

Chute Feeder can be set up on the ground and can also be hoisting the ore bin on the discharge port. The chassis of the trough does the reciprocating movement, its frequency of stroke is 20-60 times/min and the stroke is 20-200mm. The stroke can be adjusted by the eccentric wheel to make proper adjustments and the eccentricity is half of the stroke. According to some dressing works production practice, for cohesive ore, eccentricity should not be less than 30mm and feed trough width should be about 2-2.5 times of the maximum particle size. The largest chute feeder can meet the feeding of the ore whose granularity is less than 500mm. Most common specification is 980×1240 through feeder, with feeding granularity between 350-0mm, which is the best partner of 400*600 jaw crusher.

Application of Chute Feeder

Chute Feeder  is suitable to be used in the industrial sectors of metallurgy, mining, construction maintenance, building, mineral processing, coal and so on, and it transports the bulk material from storage silos to the material receiving device (not suitable for conveying the powder materials).

Features of Chute Feeder

Simple structure, easy operation, convenient installation and adjustment.

Large capacity and high efficiency, less power consumption.

Stable vibrating, reliable performance and long working life.

Trough bottom plate do reciprocating movement.

Working Principle of Chute Feeder

Chute feeder is installed at the bottom of the storage bin, when the materials are delivered through the discharge port into the cell, motor drives the chassis base Reciprocating swing through the connecting rod, making the materials evenly sent out from the square discharge mouth.
