Home > Products > Grinding Mill > Energy Saving Gold Mining Ball Mill Machine For Sale
Energy Saving Gold Mining Ball Mill Machine For Sale
- 20 Set / Sets per Month
- Qingdao/Tianjin/Shanghai/negotiate
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 15-475(kw) | Capacity(t/h): | 0.5-83 | Place of Origin: | Henan, China |
Brand Name: | Jinma | Model Number: | gold mining machine | Dimension(L*W*H): | depend models |
Weight: | 3.9-79(WT) | Certification: | ISO9001:2008 | Warranty: | 2 years(wearing parts excluded ) |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Gold grinding mill is packing standard , Seaworthy packing
Product Description
Energy Saving Gold Mining Ball Mill Machine For Sale
Gold grinding machine
Gold mining machine is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. It could carry out dry and wet millings on different materials.
Gold mining machine features
1) The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%
2) Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action and ore lifting capacity and decreases energy consumption.
3) Adopt overall frame, which makes it easy for construction and installation.
4) Large discharge opening, high capacity.
5) Equipped with oil-mist lubrication device which guarantees smooth operation of gears.
Working principle of gold mining machine
The ball mill is a horizontal rotating device transmitted by the outer gear.
The materials are transferred to the grinding chamber through the quill shaft uniformly.
There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
The ground materials are discharged through the discharging board thus the grinding process is finished.
Model | Rotation speed (r/min) | Grinding media loading(t) | Feed size (mm) | Discharg e size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
Φ900*2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900*2400 | 38 | 1.8 | ≤15 | 0.075-0.89 | 0.7-2.8 | 18.5 | 4.5 |
Φ900*3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200*2400 | 32 | 3.8 | ≤20 | 0.074-0.4 | 0.9-4.8 | 30 | 9.2 |
Φ1200*2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200*3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200*4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500*3000 | 27 | 7.0 | ≤25 | 0.074-0.4 | 2.5-6.5 | 75 | 15.0 |
Φ1500*3500 | 27 | 8.5 | ≤25 | 0.074-0.4 | 3.0-8.2 | 75 | 15.6 |
Φ1500*4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500*5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830*3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830*3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830*4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830*7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100*3000 | 24 | 18 | ≤25 | 0.074-0.4 | 7-26 | 210 | 38 |
Φ2100*3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100*4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200*3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200*4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400*3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700*4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |

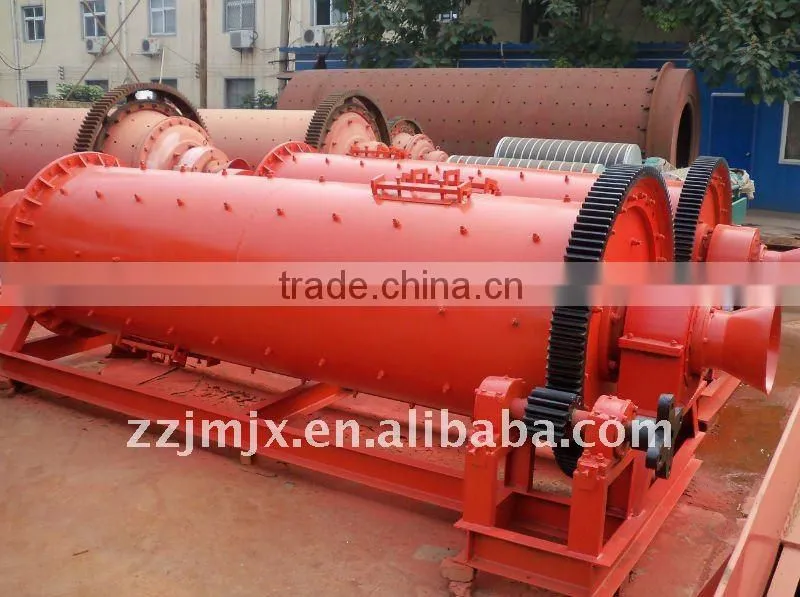

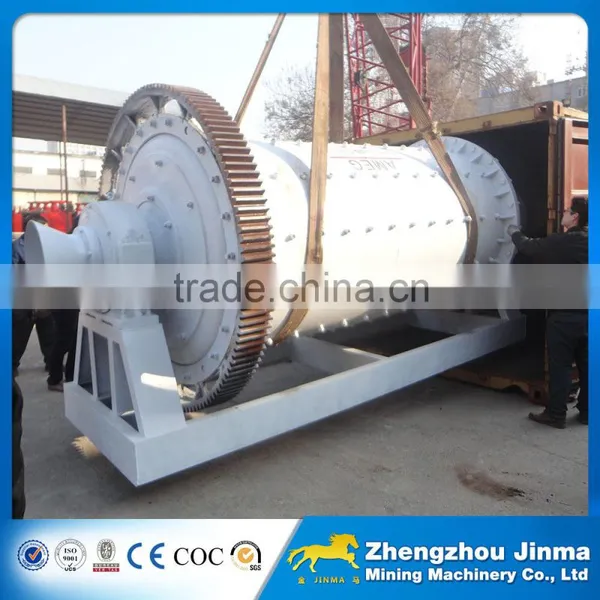

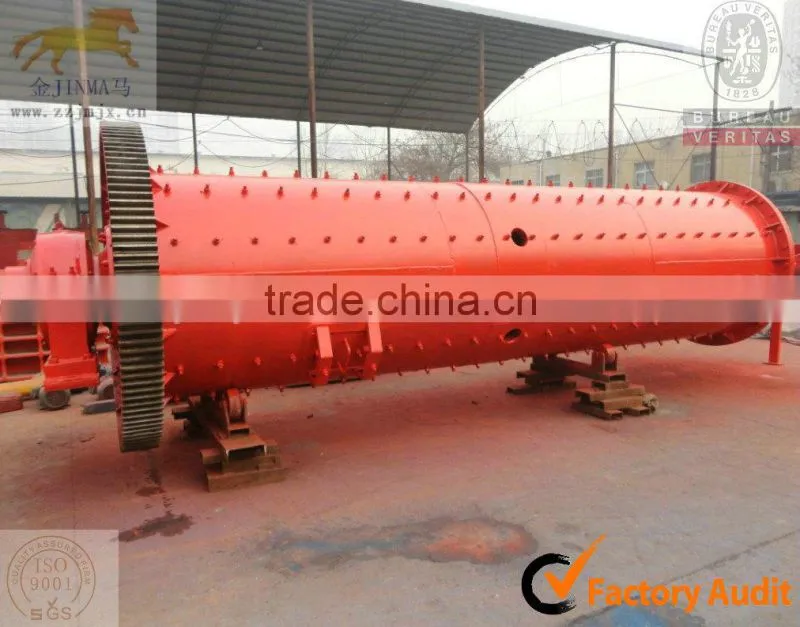

Finished gold mining machine that we manufactured in our factory

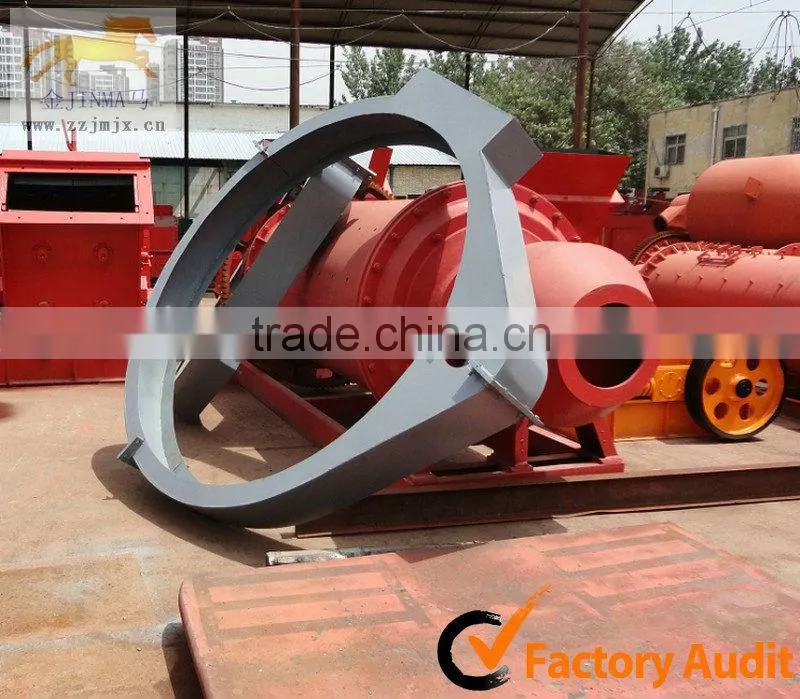

Gold mining machine parts

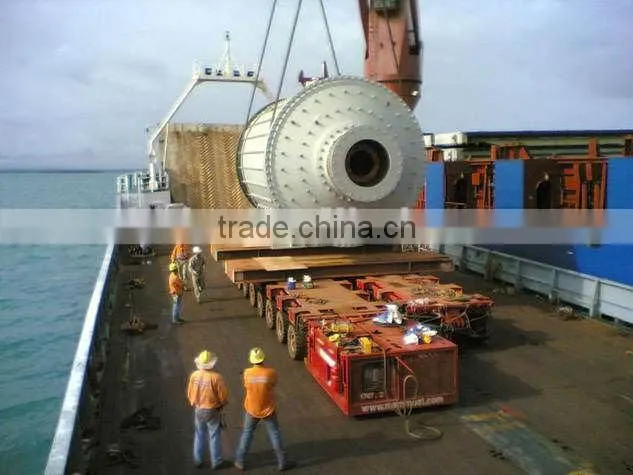

Our gold grinding machine have exported many countries. The machine is loading and shipping
1.Advantage of our products
1.Provide various of mining equipment, many models for your choice.
2.We have 20 years manufacture experience.
3.CE & ISO9001 certification, quality assured.
4. As an original equipment manufacturer can ensure competitive price
5.Our products were exported over 50 countries, like USA, India, South Africa, Turkey, Chile, etc..
2.our workshop and certification
Q: Can I visit your factory ?
A: Of course, There are many domestic and international clients visit our factory every year
Q: How is your quality of the machine ?
A: Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
Q: How about your price ?
A: Yes, we are factory and be able to give you the lowest price than market one, and we have a principal that “ for saving time and absolutely honest business attitude,we quote you as low as possible, and discount can be given according to quantity”.
Q: Guaranteed ?
A: If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
Q: Do you provide after-sales services ?
A: Sure, we have a professional technical team to slove your problem timely and thoroughly.
Q: Do you have other related products ?
A: Yes, we manufacture all types of crusher, sand making machine, ball mill, magnetic separator, flotation machine, ect .
For the more details of machine and future cooperation. Pls contact us if you feel free.
we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation.
Zhengzhou Jinma Mining Machinery Co.,Ltd
Tel:+86-371-67511065
Fax:0086-371-67512579
Mobile :+86-139-3906-0840
Skype :cherish2228617703
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
