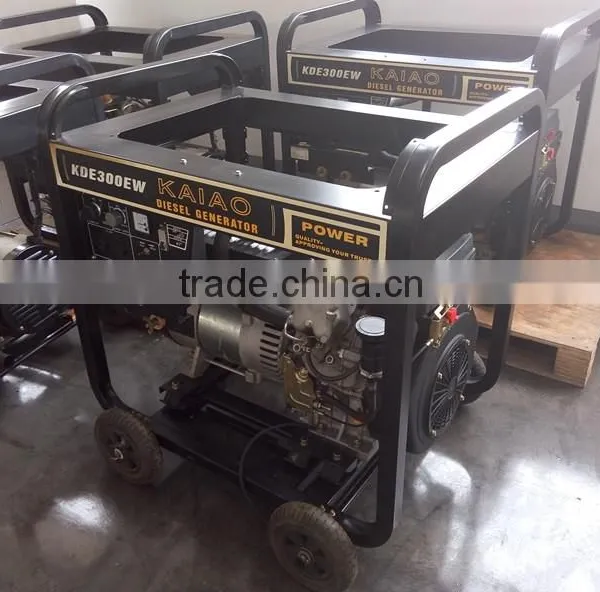

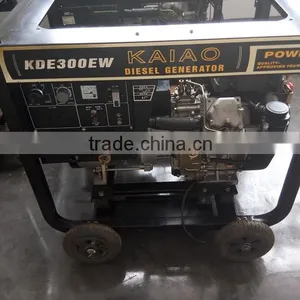

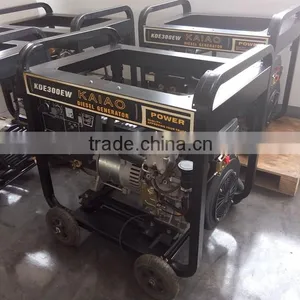

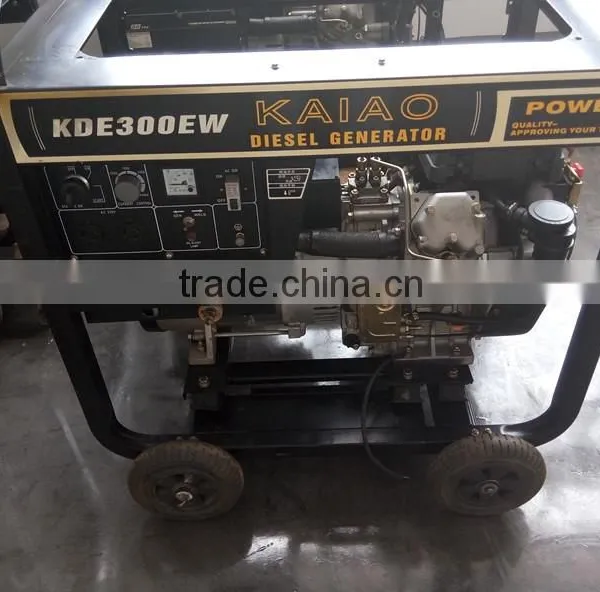

KDE300EW/AC Single Phase 3KW/DC 300A Double Use Diesel Welder Generator

Name: KDE300EW/AC Single Phase 3KW/DC 300A Double Use Diesel Welder Generator
Brand: KAIAO
SKU: 104347767

US$ 2,200 - 2,390 MOQ: 5 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KAIAO

Model Number:

KDE300EW

Wuxi Kaiao Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KAIAO

Model Number KDE300EW

Output Type AC Single Phase

Speed 3000rpm

Frequency 50HZ, 50HZ

Rated Power 3KVA

Rated Voltage 230V

Rated Current 13.0A

	KDE300EW
Frequency:Hz	50HZ
Rated output:Kva	3KVA
Rated.AC voltage:V	230V
Current:A	13A
No-load welding voltaged:V	65V
Rated welding DC:A	300A
Power factor:COS	COS=1
Starting system:	Electric Starter
Operatong noise lecel(at 7m):dB(A)	77dB(A)
Fuel tank capacity(L):L	30L
Model	R2V840-V2
Engine type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Bore × Stroke:(mm)	2-86×72mm
Fuel	Summer:0# Winter: -10#
Lubricatiom oil Model	SAE10W-30(above CD grade)
Lubricatiom oil volume(L)	1.7L
Fuel comsumption Rate(g.kw/h)	298
Displacement:L	0.812
Power/speed:KW, r/min	11.76KW/3000rpm
Compression Ratio	19:01
Combustion system	Direct lnjection
Voltmeter	Yes
Socket	2
circuit breaker	Yes
Oil warning light	Yes
Oil alert	Yes
DC circuit breaker	optional
Calculagraph	optional
Big Wheel	optional
Current meter	optional
ATS	optional
AMF Panel	optional
Remote control	optional
Dimension(L×W×H):mm	850×780×820 mm
Dry weight:kg	175Kg
