KDE300EW

Name: KDE300EW
Brand: KAIAO
SKU: 104347805
Availability: InStock

US$ 2,100 - 2,110 MOQ: 6 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KAIAO

Model Number:

KDE300EW

Wuxi Kaiao Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KAIAO

Model Number KDE300EW

Arc Current 50-300A

Pilot Arc Current 300A

Rated Duty Cycle 50%

Dimensions 930*690*920mm

Usage Welding& generator

Voltage 230V

Power(W) 3000W

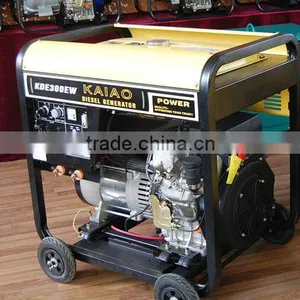

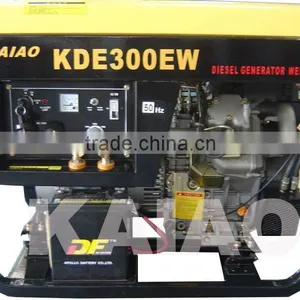

Welding Machine (KDE300EW)

1.CE&ISO9001 approved, powered by KaiAo advanced air-cooled diesel engine

2.Dula function integrated in one machine, convenient switch

3.Stable welding current & waveform

4.Large fuel tank, ensuring hours of continuous output

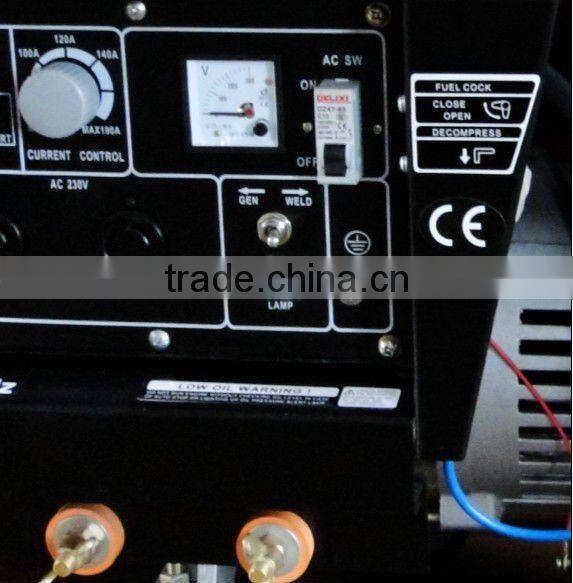

5.Avariety of specially-designed control panels available for different market

WUXI KAIAO POWER MACHINERY CO., LTD
	KDE300EW
Frequency:Hz	50HZ
Rated output:Kva	3KVA
Rated.AC voltage:V	230V
Current:A	13A
No-load welding voltaged:V	65V
Rated welding DC:A	300A
Power factor:COS	COS=1
Starting system:	Electric Starter
Operatong noise lecel(at 7m):dB(A)	77dB(A0
Fuel tank capacity(L):L	30L
Model	R2V840-V2
Engine type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Bore × Stroke:(mm)	2-86×72mm
Fuel	Summer:0# Winter: -10#
Lubricatiom oil Model	SAE10W-30(above CD grade)
Lubricatiom oil volumeL	1.7
Fuel comsumption Rate(g.kw/h)	298
Displacement:L	0.812
Power/speed:KW, r/min	11.76KW/3000rpm
Compression Ratio	19:01
Combustion system	Direct lnjection
Voltmeter	Yes
Socket	2
circuit breaker	Yes
Oil warning light	Yes
Oil alert	Yes
DC circuit breaker	optional
Calculagraph	optional
Big Wheel	optional
Current meter	optional
ATS	optional
AMF Panel	optional
Remote control	optional
Dimension(L×W×H):mm	850×780×820
Dry weight:kg	175
